Upgrade Analog Security Cameras To IP Conversion Kit Ethernet Over Coax Plus POE

Sold out
SKU ET1100CPp _8Tx_RFB

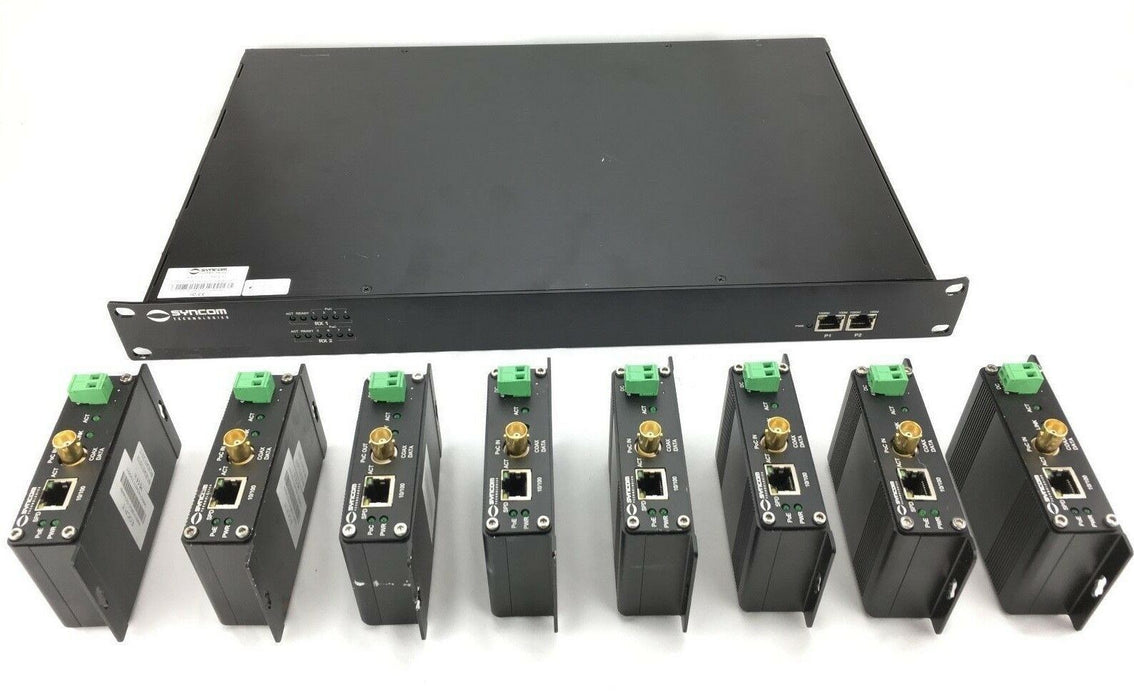

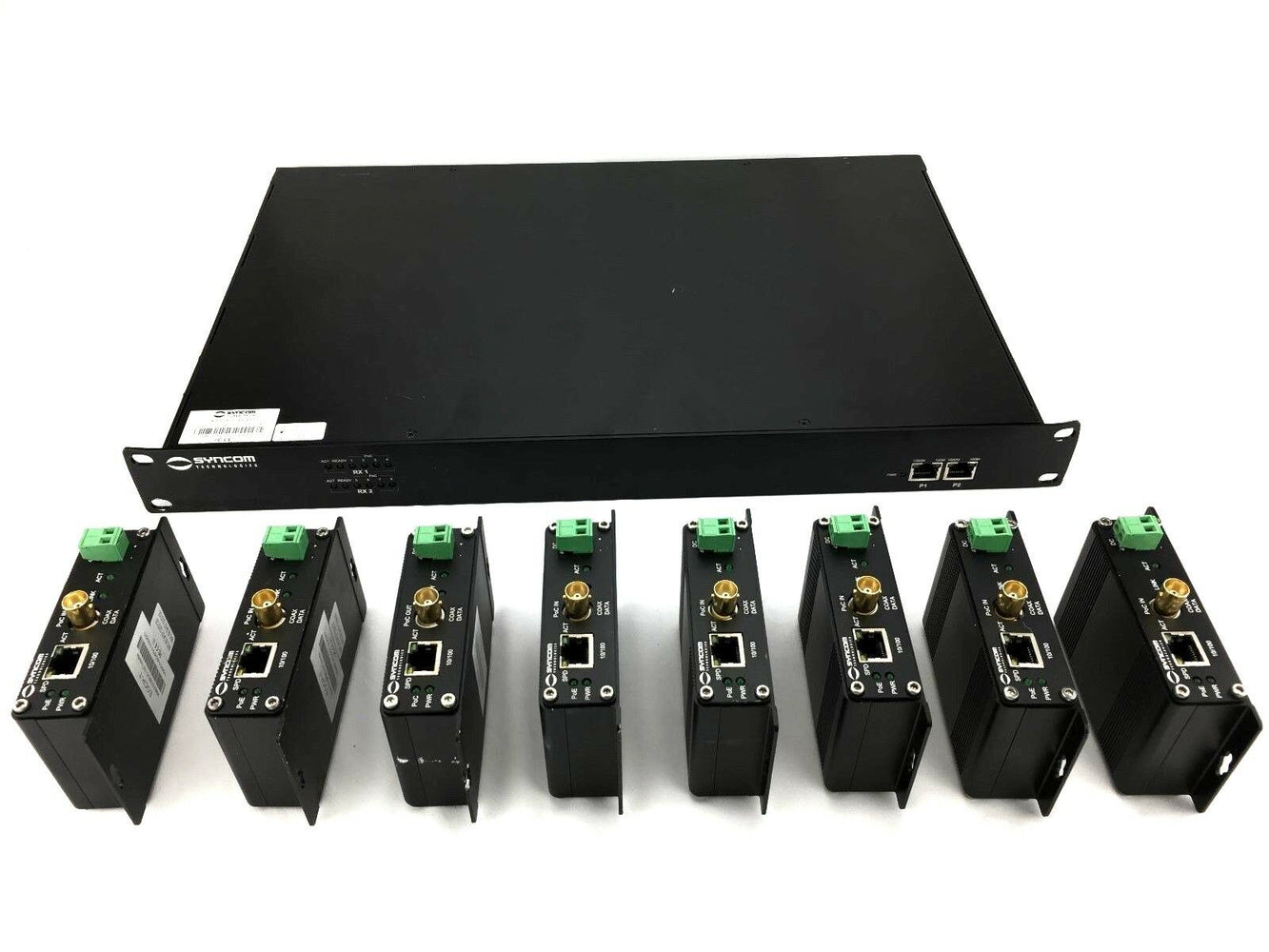

8-Channel Ethernet over Coax Hub + Transmitters Run PoE IP Camera on RG59 Cable

Product is 100% tested and working perfectly. The factory refurbished these units to function as new. There may be some minor scratches, but these units are made to last for years due to the industrial grade components used.

All Product is made to work in a commercial or industrial professional installation. The Rack Mount Hub has 400W of power to distribute among 16 channels of cable. The maximum voltage per a channel is 30W.

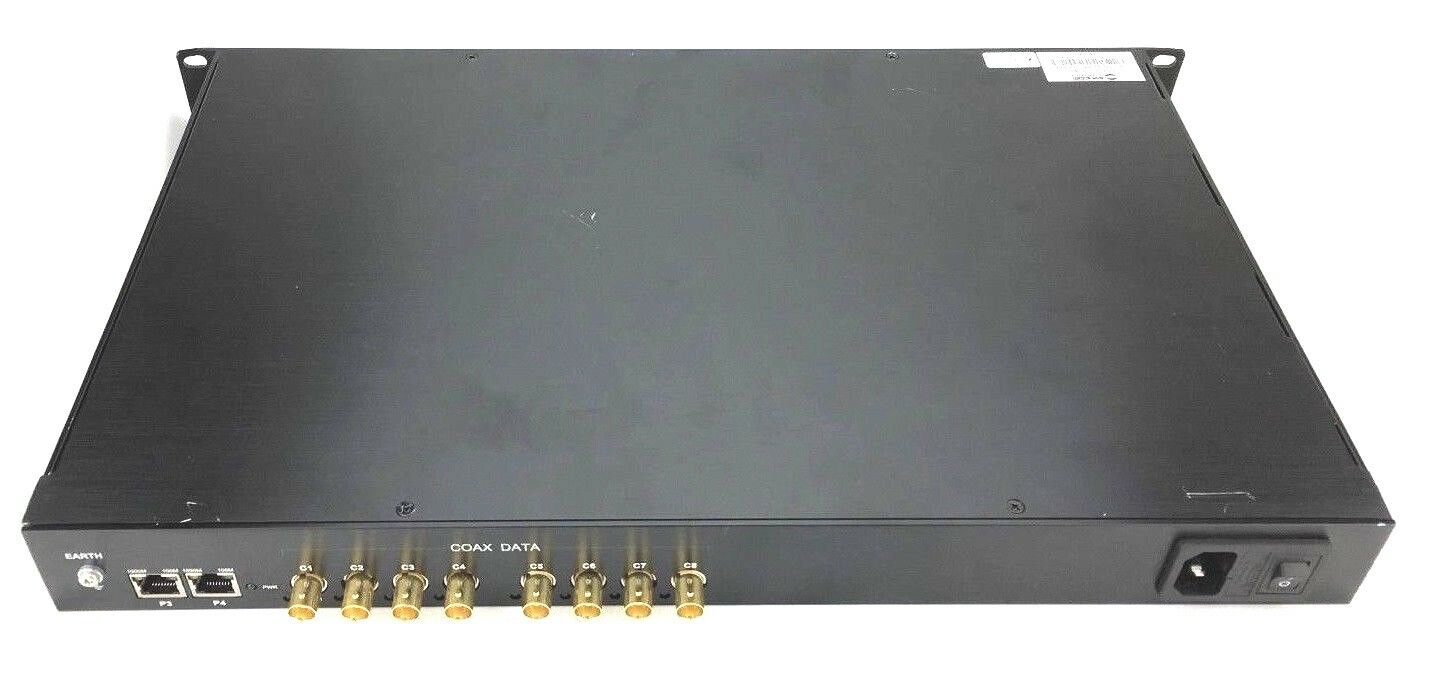

Rack Mount HUB:

·         Connecting to 8 x ET1100CPp-T and IP Cameras

·         With full switching capability

·         1000Mbps Full-duplex communication

·         Power over Coaxial (Max. 400W total output)

·         Data Rate per port up to : 40Mbps (Downlink), 10Mbps (Uplink)

·         Max. Distance: 800m over Coax (RG59/U)

·         Auto MDI/MDI-X

·         AC power input

·         19” 1U Rack-mount

·         Standards IEEE802.3 10Base-T

·         IEEE802.3u 100Base-TX

·         IEEE802.3ab 1000Base-T

·         Cabling Cat5 or above

·         Maximum Distance 100m

·         Connector 4 x RJ45

·         Cabling Coaxial Cable (75 ohm)

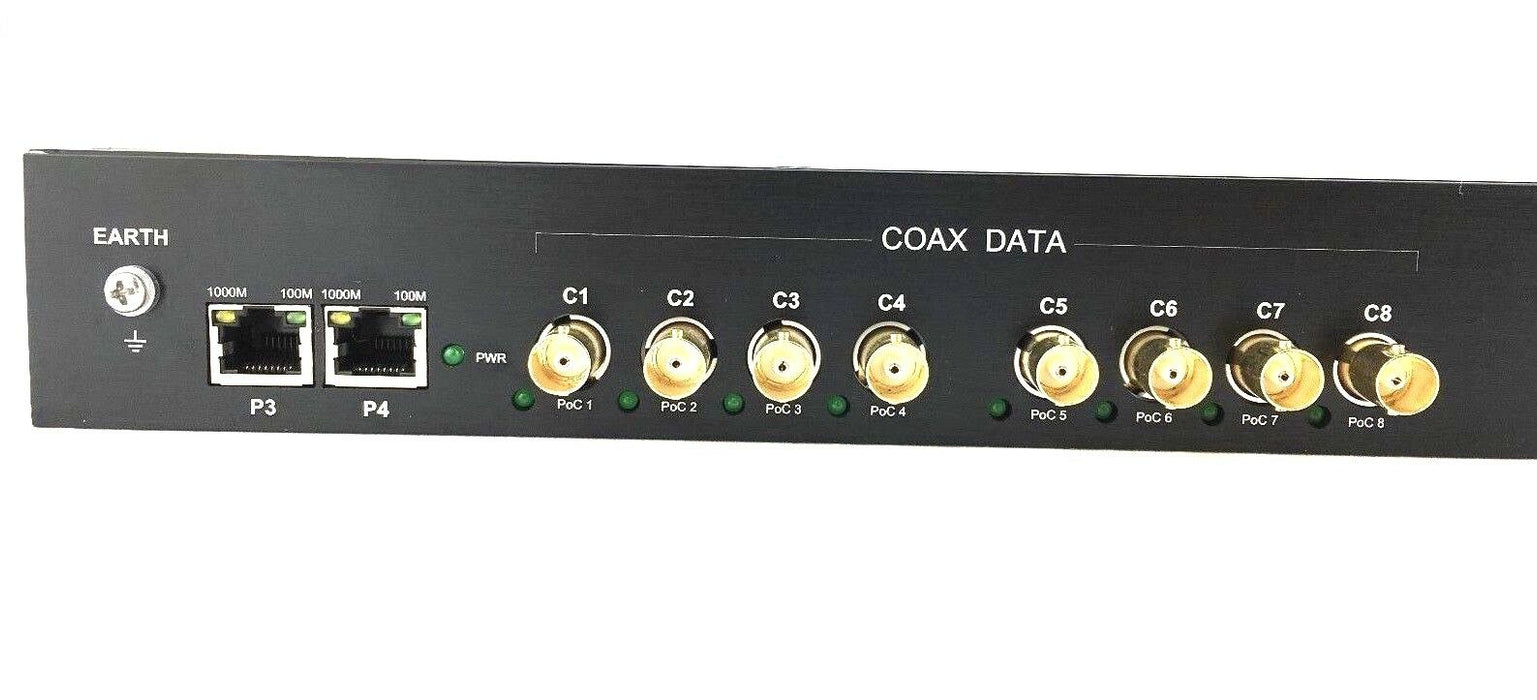

·         Connector 8 BNC Group (female)

·         Distance 800m on RG-59/U

·         Data Rate per port 40Mbps Max. (Downlink)

·         10Mbps Max. (Uplink)

·         Technology Power Line Communication(PLC)

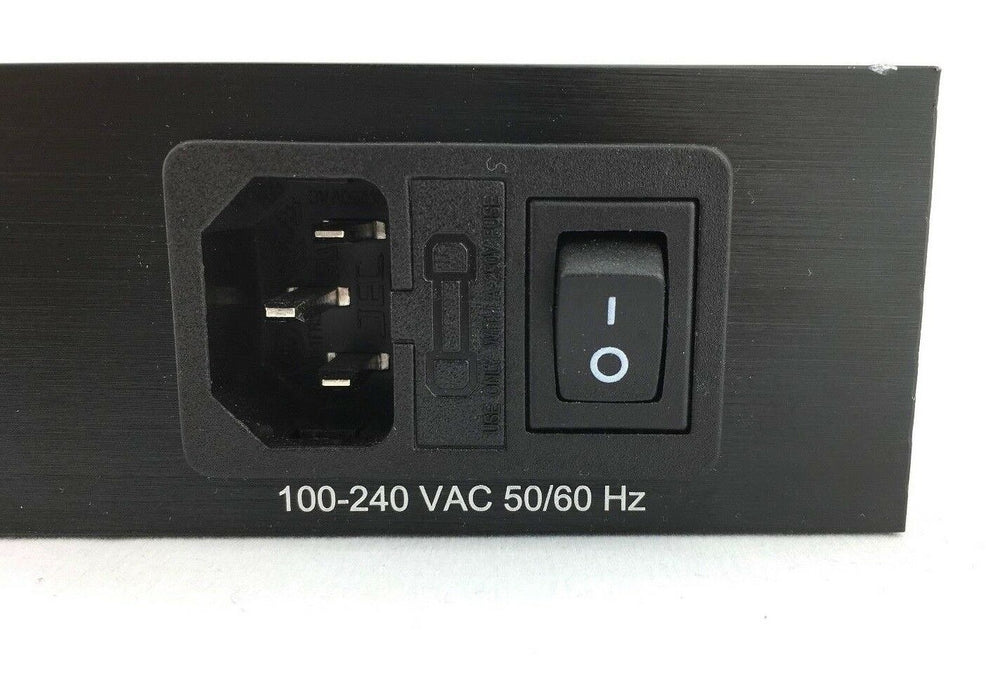

·         Input Power 100-240VAC, 50/60Hz

·         Power Consumption 16W Max. w/o PoC

·         500W Max. w/o PoE

·         Overload Protection Present

·         Casing Aluminum case

·         Mounting Rack Mount

·         Operation Temperature 0°C to 50°C (32°F to 122°F)

·         Storage Temperature -20°C to 75°C (-4°F to 167°F)

·         Relative Humidity 5% to 90% non-condensing

·         MTBF > 100,000 hrs.

·         Regulatory Approvals: ISO9001, FCC Part 15 Class Ak, EN55022 Class A

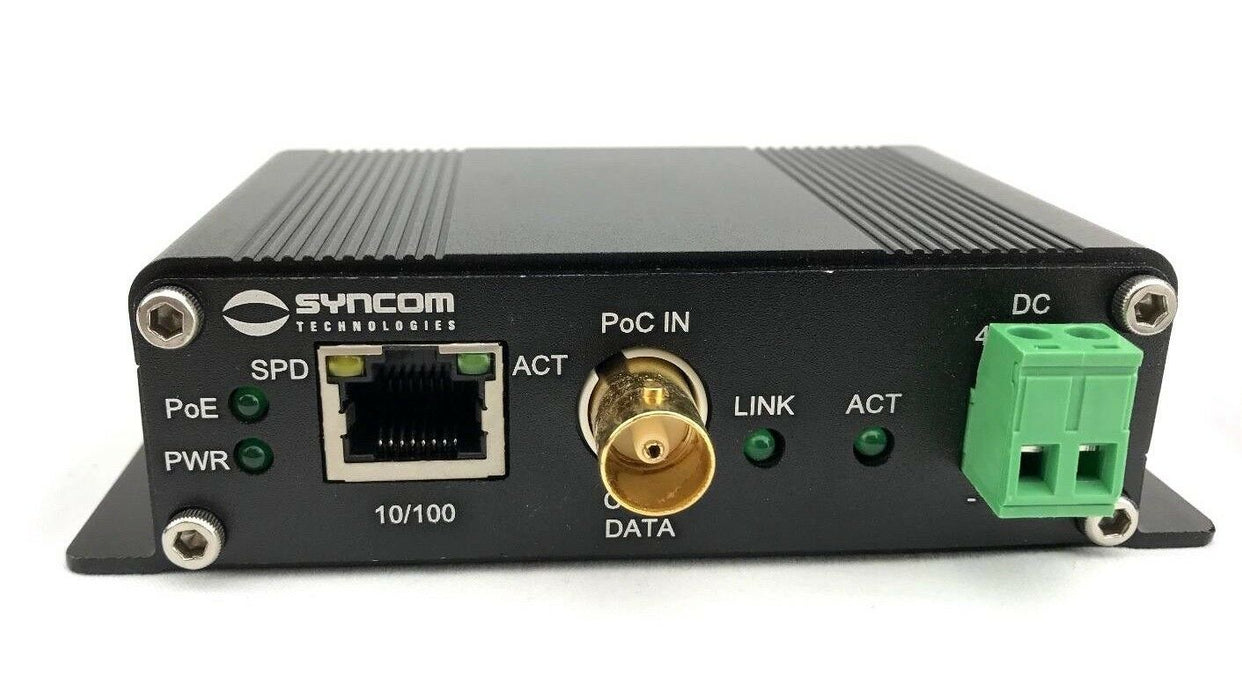

·         PoE+ (30W) and Power over Coaxial

·         802.3af/802.3at Compliant

·         Data Rate up to: 90Mbps (Downlink), 90Mbps (Uplink)

·         Max. Distance: 1 Km over Coax (RG-59/U) (for single channel extender only)

·         Compatible with 4-port standalone Receiver & 8/16-port Rack Mount Receiver

·         Accept 48~57VDC external power input or PoE power input from RJ45 port
