Sparkle Power SPI4001UG Switching Power Supply 400W ATX 80 Plus 1U Server PSU

$30.00
SKU SPI4001UG_USED
Sparkle Power SPI4001UG Switching Power Supply 400W ATX 80 Plus 1U Server PSU

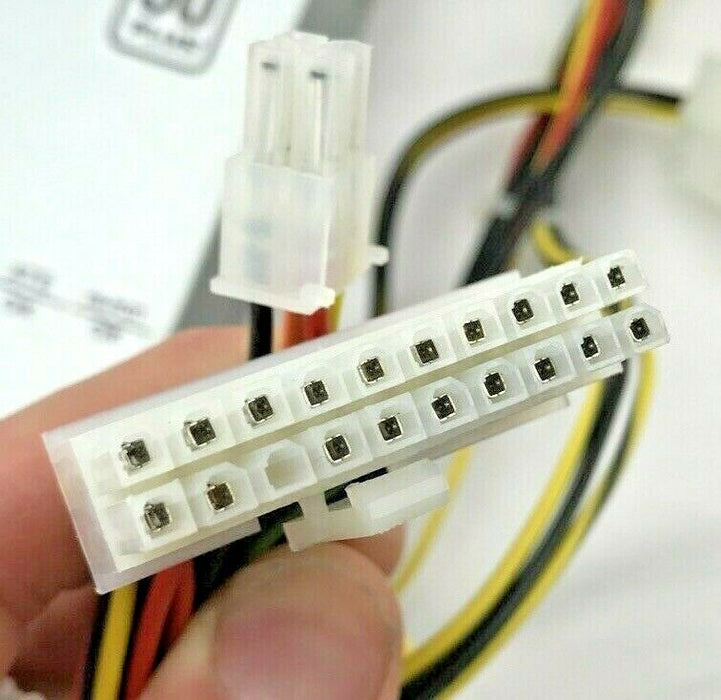

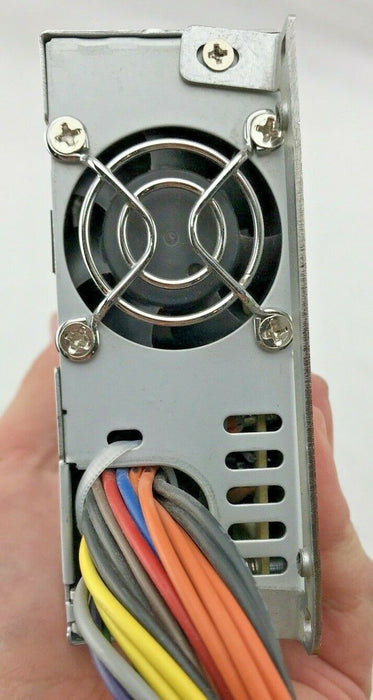

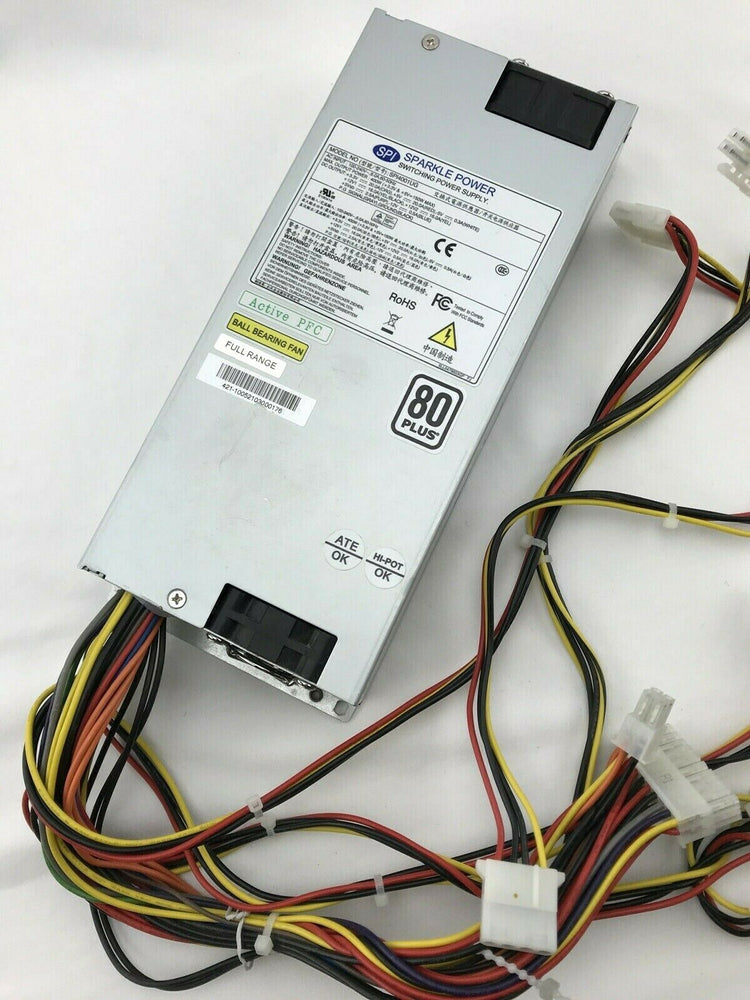

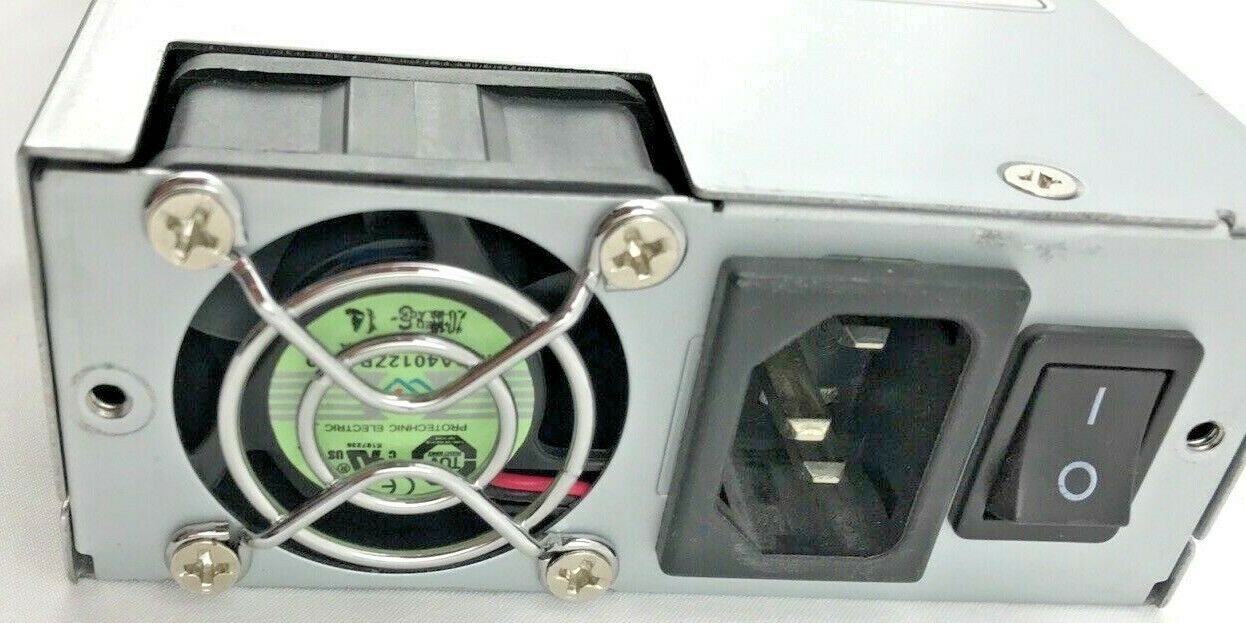

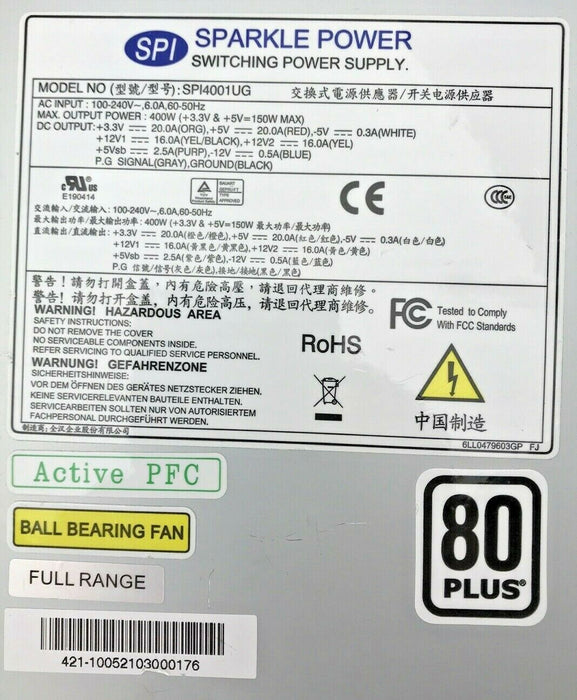

Grade B physical condition. See pictures.

Features
  • Complied with EPS12V standard
  • Active Power Factor Correction (PFC) meet EN61000-3-2
  • High efficiency and reliability
  • Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances).
  • Remote ON/OFF function
  • Internal 12V DC fan included
  • Noise Killer (thermal fan speed control function)
  • Low noise and ripple
  • Output over voltage, short circuit, and over current protection
  • 100% Hi-pot, ATE, and burn-in tested
  • Re-settable power shut down
  • Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
  • Approved by UL6095-1, TUV EN60950-1, CB,EMC,FCC


Specification
  • Temperature Range: Operating: 0°C ~ +50°C on full load; storage & shipping: -20°C ~ +80°C
  • Humidity: 85% on operating, 95% on storage
  • Dielectric Withstand: Primary frame ground 1800V AC for 1 second
  • Efficiency: typical up to 80%
  • Rise time: Less than 20ms
  • Hold-up Time: 20ms minimum at nominal input voltage
  • Power Good Signal: Power on delay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible)
  • Leakage Current: Less than 3.5mA at 264Vac, 50Hz
  • MTBF: 100,000 hours on maximum load at +25°C
  • Dimensions (LxWxH): 220x100x40.5mm /8.7x3.9x1.6inch


Input Characteristics
  • Input Range: 90 ~ 264Vac (RMS), Full Range Input
  • Frequency: 47 ~ 63Hz
  • Input Current: Max 6A (RMS) @ 115Vac, 3A (RMS) @ 230Vac
  • Inrush Current: No damage.


Output Characteristics
