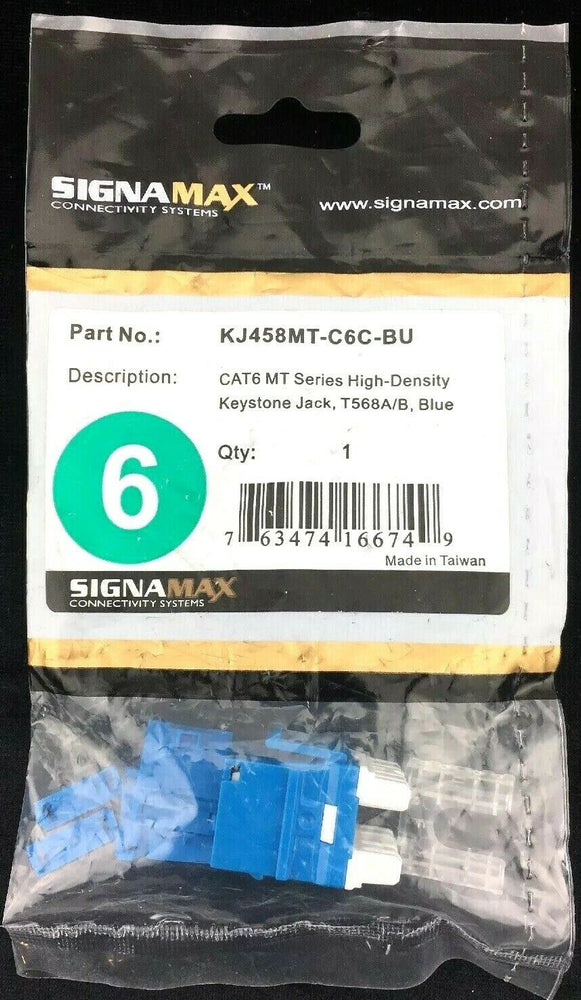

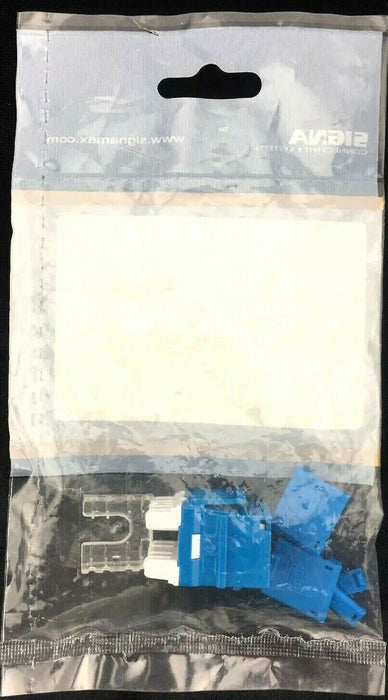

Signamax KJ458MT-C6C-BU CAT6 MT Series High-Density Keystone Jack T568A/B Blue
by Signamax
Sold out
$10.99
SKU KJ458MT-C6C-BU
Signamax KJ458MT-C6C-BU CAT6 MT Series High-Density Keystone Jack T568A/B Blue
Brand new in original packaging.
Overview
The Signamax Category 6 MT-Series Unscreened Keystone Jacks have been designed to meet the need for today’s high-bandwidth applications. These connectors are slim in profile for the highest density applications and have the ability to mount either color-coded icons for service identification or dust covers to protect unused jacks from dust and other contaminants.
The contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs. Special design features allow these jacks to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool, and are rated for a minimum of 750 plug insertions providing for the highest level of system reliability.
Key Features
- Exceeds TIA-568-C.2 component performance specifications
- Supports TIA-568-C.2 category 6 100 meter channel performance
- Slim profile for the highest density applications
- Improved wire retention and ease of termination with rear 110 type contacts
- Easy-to-read T568A/B wiring scheme color-code label
- Compatible with Signamax screened snap-in patch panels and work area faceplates
Specifications
TRANSMISSION PERFORMANCE
ANSI/TIA-568-C.2: meets or exceeds category 6 (1-250 MHz) component specifications
TRANSMISSION MEDIA
Unscreened twisted pair (U/UTP)
JACK TYPE
8p8c (8-position, 8-contact) “RJ45” style
WIRING SCHEME
ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
WIRE GAUGE
22 to 24 AWG (0.644 to 0.511 mm)
ELECTRICAL
Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Spring Wire Contact Resistance: Max 20 mOhm
IDC Contact Resistance: Max 2.5 mOhm
Current Rating: Refer to downloadable spec sheet.
CONSTRUCTION
Housing: High impact thermoplastic, UL94V-0 fire retardant
Jack Spring Wire: Phosphor bronze alloy plated with 50 μin of gold over 70 to 100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy
MECHANICAL
Total Contact Force: Min 800 g for 8 wire leads
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles
FOOTPRINT
Standard keystone footprint
MOUNTING DIMENSIONS:
1.18” D x 0.67” W x 0.76” H (30.0 mm x 16.9 mm x 19.3 mm)
ENVIRONMENTAL CONDITIONS
Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)
COMPLIANCE
ANSI/TIA-568-C.2, IEEE 802.3 ab, FCC Part 68 Subpart F, UL 94V-0
APPLICATIONS
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
