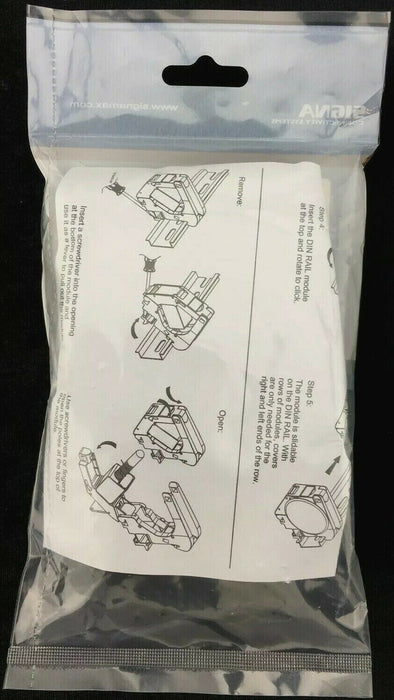

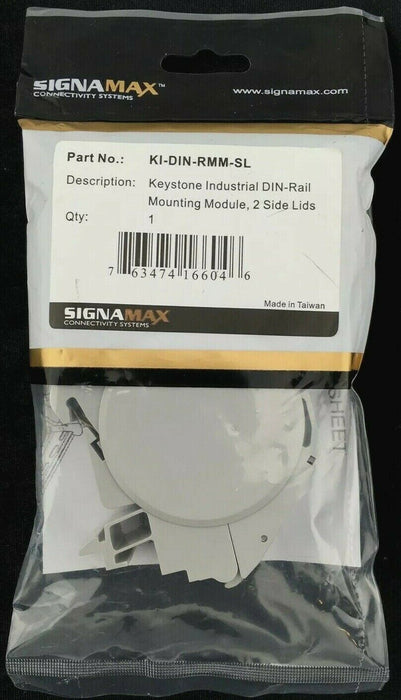

Signamax KI-DIN-RMM-SL Keystone Industrial DIN-Rail Mounting Module 2 Side Lids
by Signamax
Sold out
$10.45
SKU KI-DIN-RMM-SL
Signamax KI-DIN-RMM-SL Keystone Industrial DIN-Rail Mounting Module 2 Side Lids
Brand new.
Overview

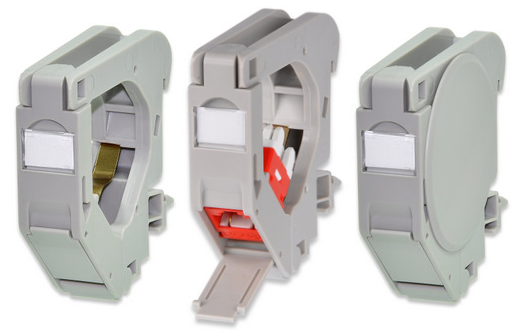

Signamax DIN-Rail Mounting Modules offer combined advantages of regular keystone jack design and transmission performance with simplicity and usability of industrial DIN-rail mounting systems. The state-of-the-art design provides features usually found in office work area solutions like universal labeling, protection covers, “front access,” “gravity compensation” for patch cords along with features important for industrial applications such as toolless mounting and replacement of connector modules, quick access to any part of the assembly including screened jacks.
Key Features
- Designed for standard 35-mm wide DIN-Rails
- Side lids are removable facilitating installation of several modules in one continuous row
- Accommodates all Signamax keystone jacks up to 17 mm (0.67 in) wide
- Metal spring serves two purposes – secure retention of all keystone jack types, and grounding contact and path for screened jacks
- Clear plastic labeling window
- Front hinged hatch protects keystone jack from damage and contamination when it is not used
- Swinging cassette with latching mechanism allows quick and easy installation and removal of the keystone jack
- Installation does not require special tools or threaded fastening – the module snaps-on the DIN-Rail
- Cable entry points are equipped with noses supporting required cable bend radii and protecting cables from deformation
- Equipment or patch cord connection angle provides for cord stress compensation caused by the cord’s weight
Specifications
CONSTRUCTION
Housing: high impact thermoplastic, UL94V-0 fire retardant
Jack spring wire: bronze alloy
MECHANICAL
DIN-Rail: 35 mm (1.378 in)
Keystone module width: 17 mm (0.669 in) max
MOUNTING DIMENSIONS
KI-DIN-RMM-SL:
D 67.5 mm H 70.5 mm W 21.0 mm
D 2.66 in H 2.78 in W 0.83 in
KI-DIN-RMM:
D 67.50 mm H 70.50 mm W 18.0 mm
D 2.66 in H 2.78 in W 0.71 in
ENVIRONMENTAL CONDITIONS
Storage: -40 °C-+70 °C (-40 °F-+158 °F)
Operation: -10 °C-+60 °C (+14 °F-+140 °F)
RH (operation): max non-condensing 93 %
COMPATIBILITY
Signamax MT*series unscreened keystone jacks
Signamax TL*series screened keystone jacks
Signamax KRJ45/xS unscreened feed*thru couplers
