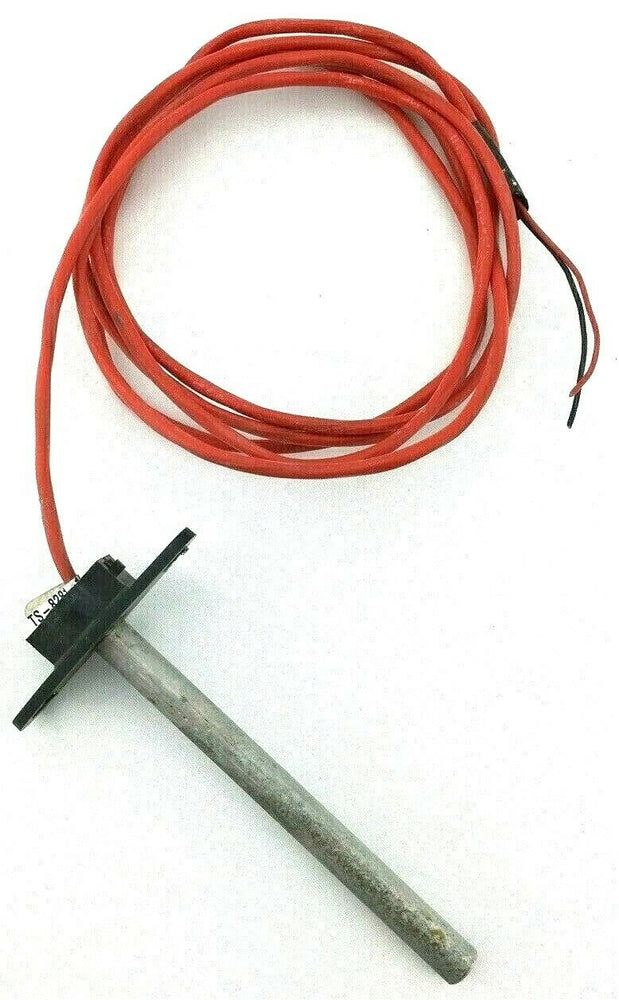

Schneider Electric TS-8281-0-0-1/TS-8281-101-0-1 Duct Temperature Probe/Sensor

$20.00
SKU TS-8281_USED
Schneider Electric TS-8281-0-0-1/TS-8281-101-0-1 Duct Temperature Probe/Sensor
Grade B physical condition.

APPLICATION

Electronic sensing of temperature in ducts.


SPECIFICATIONS

Sensing Element:
Balco resistance. 1000 ohms ±0.1% at 70°F (21°C); changes 2.2 ohms per 1°F(.5°C) at 70°F (21°C).

Ambient Limits:
Shipping and Storage Temperature: -40 to 160°F (-40°F to 71°C).
Operating Temperature: 40 to 140°F (4 to 60°C).
Humidity: 5 to 95% RH, non-condensing.,

Wiring Connections:
TS-8281-0-0-1: 6 ft. (1.8 m) 22 AWG (1) red, (1) black shielded and jacketed cable.
TS-8281-101-0-1: 6 ft. (1.8 m) 22 AWG, (1) red, (1) black shielded and jacketed plenum rated cable.

Mounting:
In any position on duct. Optional mounting to electrical junction boxes outlined in NEMA Standards Publication OS 1-1984.

Probe Dimensions:
3-5/8" long × 5/16" dia. (92 mm × 7.9 mm)
