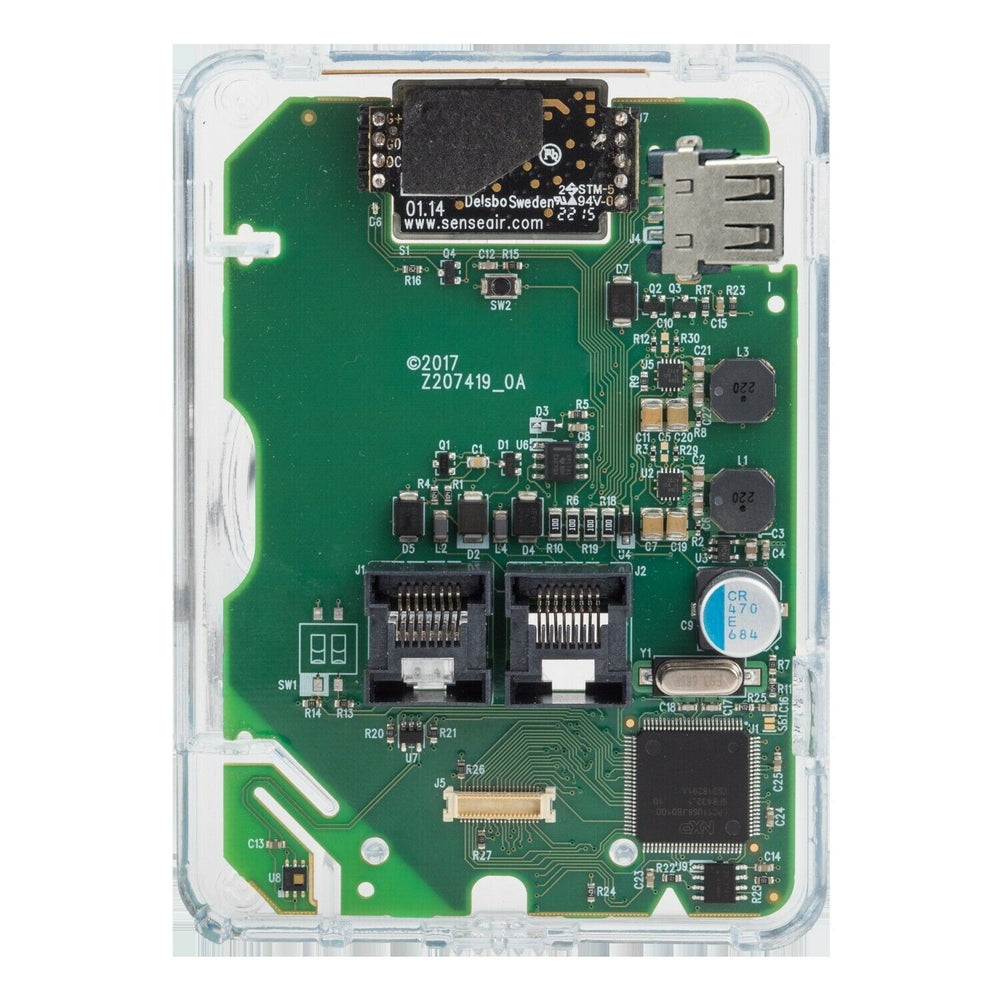

Schneider Electric SXWSBTXXXSXX Sensor, Wall Base, Temp, Communicating, RJ45
Sold out
$27.00
SKU SXWSBTXXXSXX
Schneider Electric SXWSBTXXXSXX Sensor, Wall Base, Temp, Communicating, RJ45
CHARACTERISTICS
| range | SpaceLogic |
|
|---|---|---|
| product name | SmartX Living Space Sensor |
|
| product or component type | Base unit |
|
| device presentation | Without cover |
|
| sensor type | transmitter sensor +/- 0.2 °C |
| [Us] rated supply voltage | 24 V DC |
|
|---|---|---|
| supply | Via bus connector |
|
| max power consumption in W | 2 W |
|
| range compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers EcoStruxure Building Operation SmartX Living Space Sensor sensor coverplate |
|
| communication port support | RJ45 |
|
| function available | With temperature sensor |
|
| material | ABS (acrylonitrile butadiene-styrene) |
|
| colour | White |
|
| display type | Without display |
|
| accuracy | +/- 0.2 °C typical |
|
| measurement range | 0...50 °C temperature |
|
| width | 81.2 mm |
|
| depth | 20.7 mm |
|
| height | 111.6 mm |
| relative humidity | 0…95 % |
|
|---|---|---|
| ambient air temperature for operation | 0…50 °C |
|
| standards | UL 916 FCC part 15 class B |
|
| product certifications | CE conforming to EN 61000-6-3 RCM EAC ICES-003 |
|
| IP degree of protection | IP20 |
|
| flame retardance | UL94-V0 |
