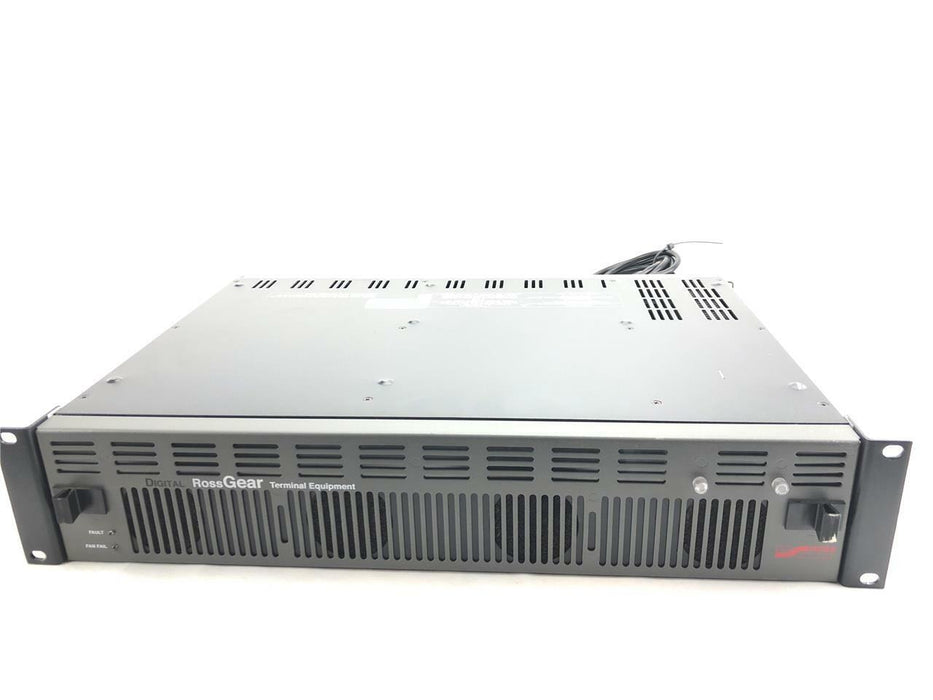

RossGear DFR-8110A Digital Products Frame & Power Supply Video Switcher

Sold out
RossGear DFR-8110A  Digital Products Frame & Power Supply Terminal Equipment
Tested and in working condition. Grade A Condition

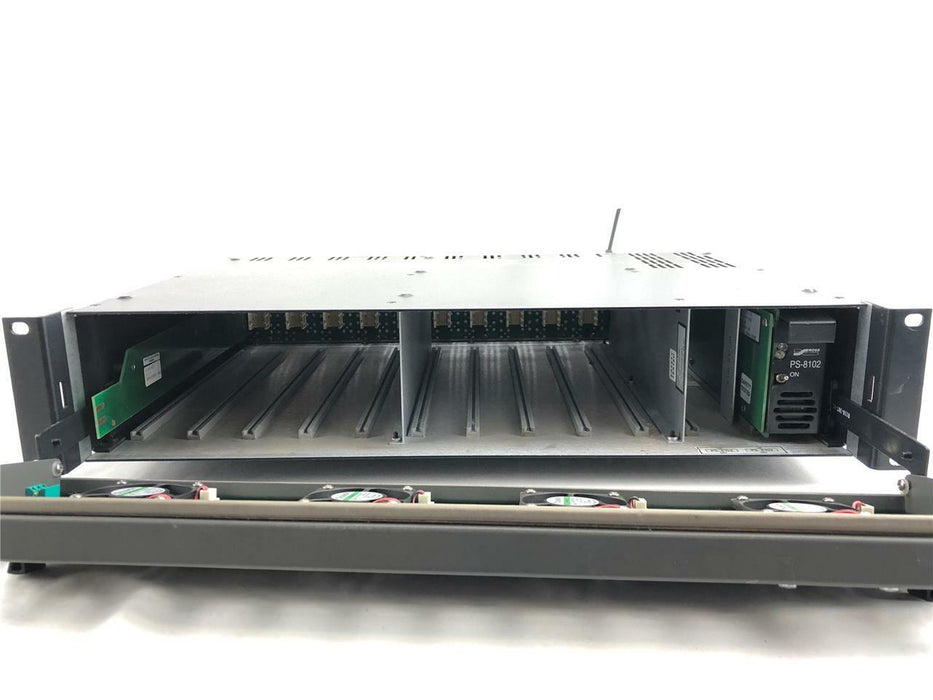

The DFR-8110A Digital Products Frame accommodates up to ten Ross 8000 series Distribution Products or ten Leitch* 6800 series video products. For high power consumption requirements, the DFR-8110A can be field upgraded with the CFM-8110A Cooling Fan Module, which is mounted on the inside of the door. Alternatively, the DFR-8110A-C version comes direct from the factory with the cooling fan option already installed. The DFR-8110A design offers several key features such as; heavy-duty door hinges, durable powder-coat paint finish, and a specially designed top cover to enable frame stacking in high density environments. The DFR-8110A carries forward the heritage of our past digital frames by featuring our unique Master Reference Input, which accepts one external analog color black signal that is distributed to all modules. The frame also employs rugged aluminum construction, which provides superb heat dissipation, as well as the use of the highest quality connectors throughout the product.

 Key Features:
  • DFR-8110A(-C) accommodates 10 modules in 2 rack units
  • Heavy duty door hinges
  • Aluminum construction for increased heat dissipation and weight reduction
  • Universal Power Supply (PS-8102) for all world standards (85 - 264 volts)

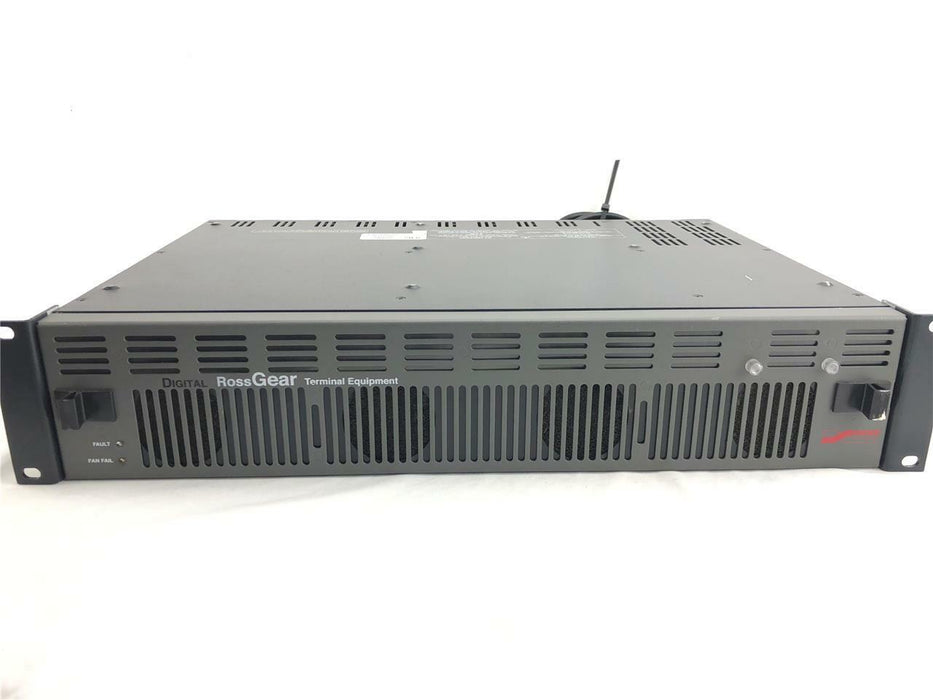

  • Fan Fail and Error Indicator LEDs on front of the frame (available with optional Cooling Fan Module)
  • PowerLock cord retainer mechanism guards against accidental power loss
  • Power Switch is accessible from front of the rack frame
  • Power factor corrected supply with power fail detection circuit
  • Separate power cords for each supply for power redundancy
