RDL FP-PA20 Mono Audio Amplifier 20W RMS Compression 8Ω Out Balanced/Unbalanced
by RDL
Sold out
$38.50
SKU FP-PA20_USED
RDL FP-PA20 Mono Audio Amplifier 20W RMS Compression 8Ω Out Balanced/Unbalanced

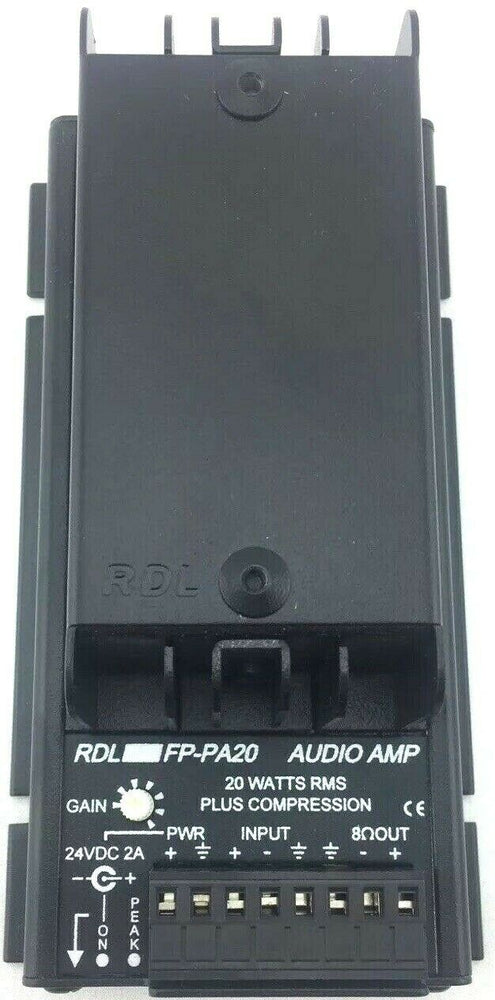

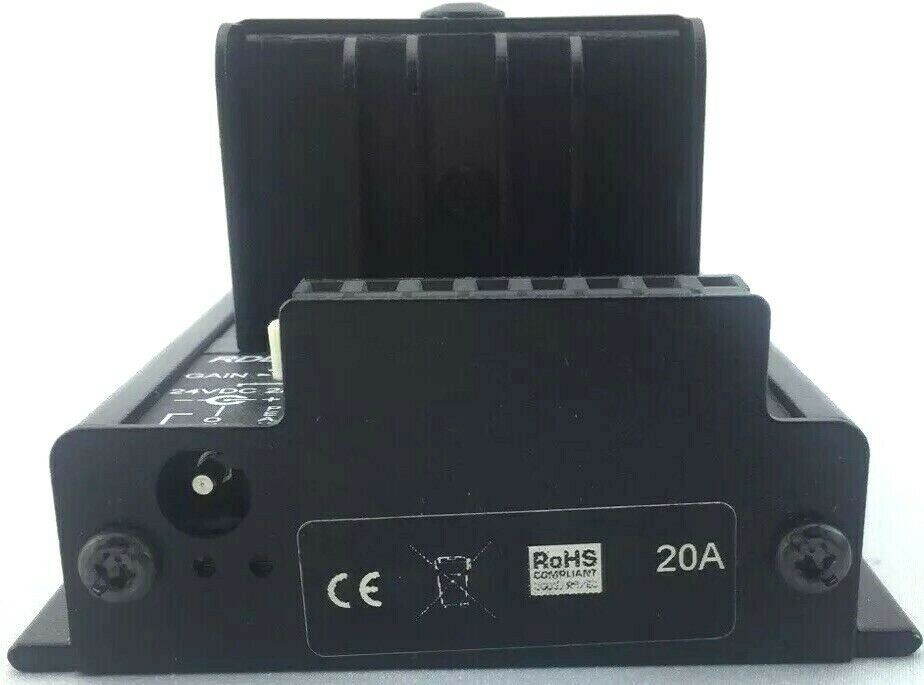

Grade A condition. Includes unit as pictured.
Description:
The FP-PA20 features a balanced line level input that may be connected unbalanced. A front panel gain control is designed to be adjusted either manually or with a trimming screwdriver. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. The output will drive an 8 Ω speaker or multiple speakers connected to present an 8 Ω load to the amplifier. Audio levels that could cause the amplified output to clip are compressed using two dynamic time constants designed to preserve aural transparency. Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics and preventing the compressor from increasing feedback potential when the amplifier is used for paging. The FP-PA20 produces average audio levels and audio clarity normally expected of amplifiers delivering much higher output power.
Features:
- 20 Watts RMS Audio Power Amplifier
- Output for 8 Ω Speaker
- Integral Audio Compressor to Control Clipping
- High Overall Operating Audio Level
- Maximized Audio Level for Output Power
- Audio Quality Superior to Standard Amplifiers
Specifications:
Input:
Line level (+4 dBu bal; -10 dBV unbal)
Input Impedance:
20 kΩ balanced bridging; 10 kΩ unbal
Input / Output Connector:
Detachable terminal block
Gain Adjustment:
Single turn audio taper
Minimum Input Levels:
Balanced: -26 dBu (to cross compressor threshold)
Unbalanced: -28 dBV (to cross compressor threshold)
Unbalanced: -28 dBV (to cross compressor threshold)
Maximum Input Levels:
Balanced: +23 dBu
Unbalanced: +15 dBV
Unbalanced: +15 dBV
Frequency Response:
35 Hz to 50 kHz (± 1.5 dB)*
THD+N:
*measured at compressor threshold level equaling 4 W RMS output power
*measured at compressor threshold level equaling 4 W RMS output power
< 0.1% (@ 1 kHz)*
< 0.5% (35 Hz to 20 kHz)*
< 0.5% (35 Hz to 20 kHz)*
Noise:
< -80 dB (below 20 W RMS)
Compressor:
Threshold 6 dB below rated output, automatic adjusting attack and release
CMRR:
> 55 dB (50 Hz to 120 Hz)
Output Power:
20 W RMS into 8 Ω
Ambient Operating Environment:
0° C to 30° C Max; 20° C Recommended
Indicators (2):
Red LED: PEAK LED indicates compressor activity
Green LED: Power ON
Green LED: Power ON
Power Requirement:
24 Vdc @ 1650 mA, Ground referenced (for continuous RMS power output)
24 Vdc @ 1000 mA, Ground referenced (for normal uncompressed audio)
24 Vdc @ 1000 mA, Ground referenced (for normal uncompressed audio)
Overall Dimensions:
Height: 2.3 in (5.85 cm); Width: 3.25 in. (8.26 cm); Length: 6 in. (15.3 cm)
