Planet IPX-330 Internet Telephony PBX System SIP 2.0 30 Registrations 10 Calls
Sold out
$95.00
SKU IPX-330_USED
Planet IPX-330 Internet Telephony PBX System SIP 2.0 30 Registrations 10 Calls

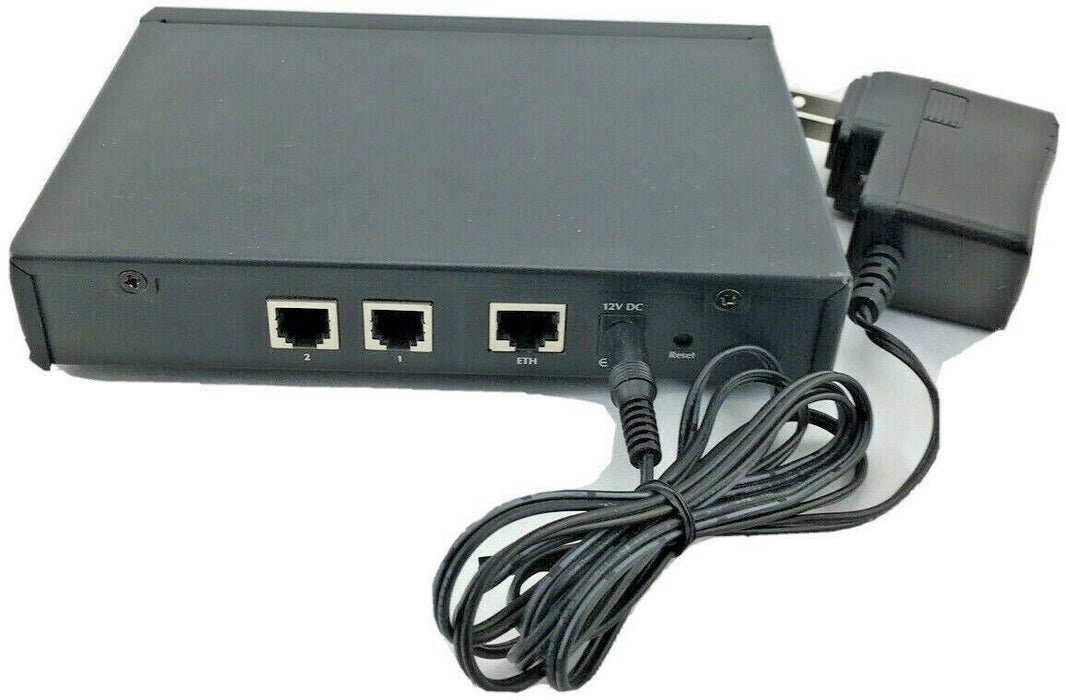

Grade A condition. Includes power supply as pictured.
The IPX-330 is a SIP-based telephony system that allows users to utilize traditional and enhanced telephony communication services via an existing IP-based network.
- SIP 2.0 (RFC3261)
- 30 Registrations / 15 Concurrent Calls
- SNMP V2, VPN Server / Client
- 2 FXO ports
- Custom IVR (voice mail to e-mail), call record, paging and intercom, mail to fax
DESCRIPTION
Intuitive, Ease-of-Use IP PBX Machine Management
The IPX-330 IP PBX telephony system is SIP-based and optimized for small and medium businesses in daily communications. The IPX-330 is able to accept 30 user registrations, and easily manages a full voice over IP system.Versatile Communication
With its 2 FXO ports, the IPX-330 is a feature-rich PBX system that supports seamless communications between existing PSTN calls, analog, IP phones and SIP-based endpoints.Replacing Old PBX Directly Without Any Additional Cable
Cost-effective, easy-to-install and simple-to-use, the IPX-330 converts standard telephones into PoE IP-based networks. It enables service providers and enterprises to utilize traditional and enhanced telephony communication services via an existing broadband connection to the Internet or corporation network. With the IPX-330, home users and companies are able to save on installation costs and continue utilizing their legacy telephones, conferences and speakerphones. The IPX-330 can act as the bridge between traditional analog systems and IP networks.Future-Proof VoIP Communication
The IPX-330 supports IPv6 and VPN (client / server) connections to provide users with flexible communication products. With PLANET's DDNS function, the IPX-330 also helps users to apply and remember the login information easier. Moreover, its multiple language feature helps user to quickly and friendly manage the system.Standard Compliance
Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-330 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.Green IP Office
The Fax to Email / Email to Fax service by the IPX-330 allows users to transfer / receive faxes directly to / from your email inbox as file attachments. It's an easy and confidential way of receiving, storing and forwarding important fax documents, thus creating a paperless green office.Full Security with VPN Support
The IPX-330 provides VPN to securely and cost-effectively connect geographically disparate offices of an organization, creating one cohesive virtual network. The VPN technology of the IPX-330 is also used by ordinary Internet users to connect to proxy servers for the purpose of protecting one's identity. It includes VPN server and client function that can support users full security login.SPECIFICATIONS
| Hardware | |
| LAN | 1 x 100BASE-TX RJ45 for LAN |
| WAN | 1 x 100BASE-TX RJ45 for WAN |
| USB | Store data for external disk |
| Console | Console Interface |
| Analog Ports | 2 x FXO |
| Reset Button | Reset to factory default |
| Protocols and Standard | |
| Standard | SIP 2.0 (RFC 3261), IAX2 |
| Protocols | RFC 793 TCP RFC 826 ARP RFC 1034, 1035 DNS RFC 1631 NAT RFC 2068 HTTP RFC 2131 DHCP RFC 2516 PPPoE RFC 3261, RFC 3311, RFC 3515 RFC 3265, RFC 3892, RFC 3361 RFC 3842, RFC 3389, RFC 3489 RFC 3428, RFC 2327, RFC 2833 RFC 2976, RFC 3263 |
| Voice Codec | G.722/G.711-Ulaw/G.711-Alaw/G.726/G.729/GSM/SPEEX |
| Video Codec | H.261/H.263/H.263+/H.264 |
| Fax over IP | T.38 Fax (pass-through) Note: T.38 support is dependent on fax machine, SIP provider and network/transport resilience |
| Voice Processing | DTMF detection and generation In-band and RFC 2833, SIP info |
| Protocols | SIP 2.0 (RFC 3261), TCP/IP, UDP/RTP/RTCP, HTTP, ICMP, ARP, DNS, DHCP, NTP/SNTP, PPP, PPPoE |
| System Capacity | |
| System Capacity | 15 concurrent call legs Up to 30 IP phone registers/extensions Recording (GSM/default): 664.05 hours; Wav: 68.4 hours Voicemail (GSM/default): 664.05 hours; Wav: 68.4 hours |
| Network and Configuration | |
| Access Mode | Static IP, PPPoE, DHCP |
| LED Indications | SYS: 1, LNK/Off WAN: 1, LNK/Off LAN: 1, LNK/Off PWR: 1, LNK/Off FXO: Red |
| Dimensions (W x D x H) | 155 × 295 × 65 mm |
| Operating Environment | 0~40 degrees C, 5~95% humidity |
| Power Requirements | Input: 100 ~ 240V AC Output: DC 12V, 1A |
| EMC/EMI | CE, FCC Class B, RoHS |
