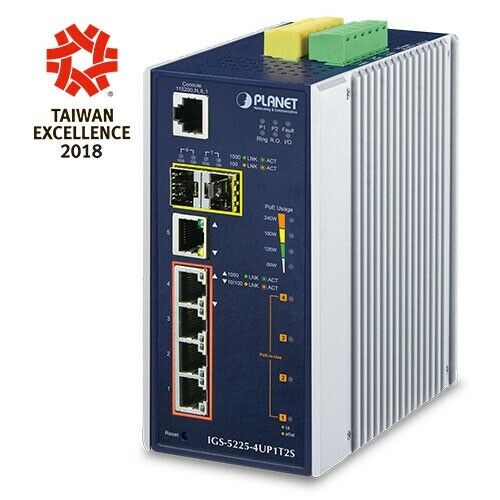

Planet IGS-5225-4UP1T2S Rugged 4-Port PoE Ultra Power Switch 95W/Port 802.3bt

by PLANET
$605.00
SKU SYN_IGS-5225-4UP1T2S
Planet IGS-5225-4UP1T2S Industrial 4 PoE Ultra 95W Ports 802.3bt Managed 2 SFP
Please note this is version 4 of the product with a new sleek design enclosure. No Power Supply is included.

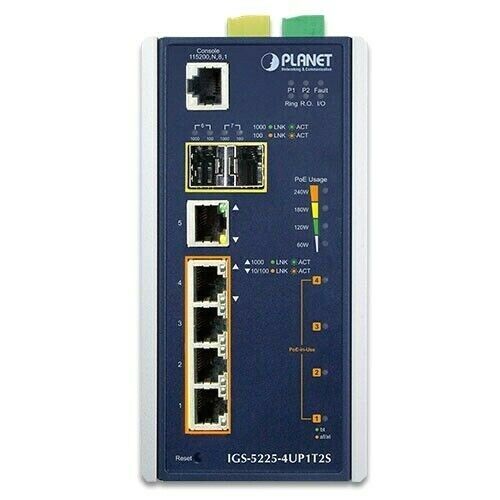

Physical Ports

  • 4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with 802.3bt PoE++ Injector function
  • 1 10/100/1000BASE-T Gigabit Ethernet RJ45 port
  • 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
  • One RJ45 console interface for basic management and setup


802.3bt Power over Ethernet (PoE Ultra)

  • Complies with IEEE 802.3bt Power over Ethernet Plus Plus Type-4 PSE
  • Backward compatible with IEEE 802.3at/af PD device
  • Up to 4 ports of IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt PoE++ devices powered
  • Supports PoE power up to 95 watts for each PoE port
  • Total of 240-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • PoE management features
  • - Total PoE power budget control
    - Per port PoE function enable/disable
    - PoE admin-mode control
    - PoE port power feeding priority
    - Per PoE port power limit
    - PD classification detection
  • Intelligent PoE features
  • - Temperature threshold control
    - PoE usage threshold control
    - PD alive check
    - PoE schedule


Industrial Case and Installation

  • IP30 aluminum case
  • DIN-rail or wall-mount design

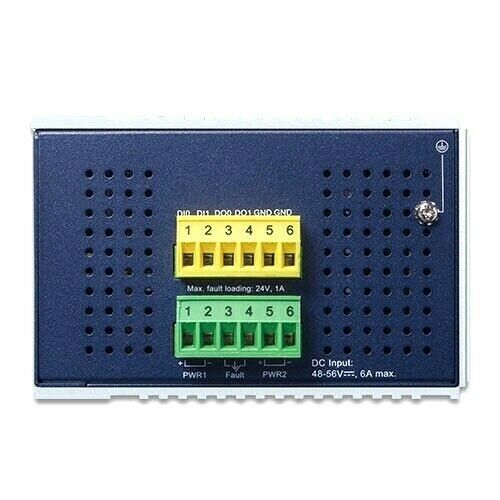

  • 48~56V DC, redundant power with reverse polarity protection
  • Supports 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature


Digital Input and Digital Output

  • 2 Digital Input (DI)
  • 2 Digital Output (DO)
  • Integrate sensors into auto alarm system
  • Transfer alarm to IP network via email and SNMP trap


Layer 2 Features

  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • - Broadcast/Multicast/Unicast
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN
    - Up to 255 VLANs groups, out of 4095 VLAN IDs
    - Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)
    - Private VLAN Edge (PVE)
    - Protocol-based VLAN
    - MAC-based VLAN
    - Voice VLAN
    - GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
  • - IEEE 802.1D Spanning Tree Protocol (STP)
    - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    - BPDU Guard
  • Supports Link Aggregation
  • - 802.3ad Link Aggregation Control Protocol (LACP)
    - Cisco ether-channel (static trunk)
    - Maximum 3 trunk groups with 3 ports per trunk group
    - Up to 6Gbps bandwidth (duplex mode)
  • Provides port mirror (1-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports G.8032 ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)


Layer 3 IP Routing Features

  • IPv4/IPv6 Layer 3 static routing
  • Supports maximum 32 software static routes and route summarization


Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • - IEEE 802.1p CoS
    - IP TOS/DSCP/IP precedence
    - IP TCP/UDP port number
    - Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing  on the switch port
  • DSCP remarking


Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • MVR (Multicast VLAN Registration)


Security

  • Authentication
  • - IEEE 802.1X Port-based/MAC-based network access authentication
    - Built-in RADIUS client to cooperate with the RADIUS servers
    - TACACS+ login users access authentication
    - RADIUS/TACACS+ users access authentication
  • Access Control Lit
  • - IP-based Access Control List (ACL)
    - MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder


Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
  • - Console/Telnet Command Line Interface
    - Web switch management
    - SNMP v1 and v2c switch management
    - SSH/SSL and SNMP v3 secure access
  • SNMP Management
  • - Four RMON groups (history, statistics, alarms, and events)
    - SNMP trap for interface Link Up and Link Down notification
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
  • - Firmware upload/download via HTTP
    - Reset button for system reboot or reset to factory default
    - Dual images
  • DHCP Relay
  • DHCP Option 82
  • DHCP Server
  • User Privilege levels control
  • Network Time Protocol (NTP)
  • Network Diagnostic
  • - ICMPv6/ICMPv4 remote ping
    - Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
    - SFP-DDM (Digital Diagnostic Monitor)
  • SMTP/Syslog remote alarm
  • System Log
  • PLANET Smart Discovery Utility for deployment management
