Pepperl+Fuchs V15-W-5M-PVC Factory Automation Female Connector 5-Pin Gray 109482
Sold out
$10.00
SKU V15-W-5M-PVC

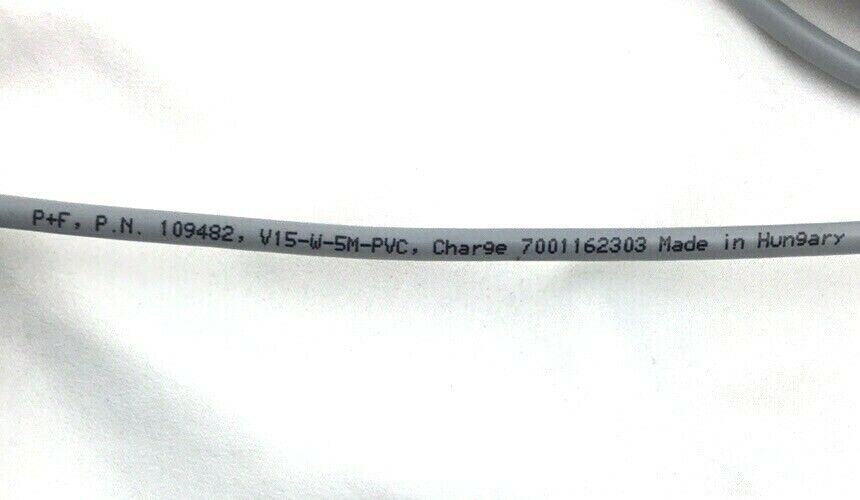

Pepperl+Fuchs V15-W-5M-PVC Factory Automation Female Connector 5-Pin Gray 109482
This item is in Grade A condition.
- Knurled nut suitable for tool assembly
- Immunity to vibration, with mechanical latching
- Gold plated contacts
- Degree of protection IP67 / IP68 / IP69K
- Suitable for 2-, 3- and 4-wire technology
| Product Description | ||
|---|---|---|

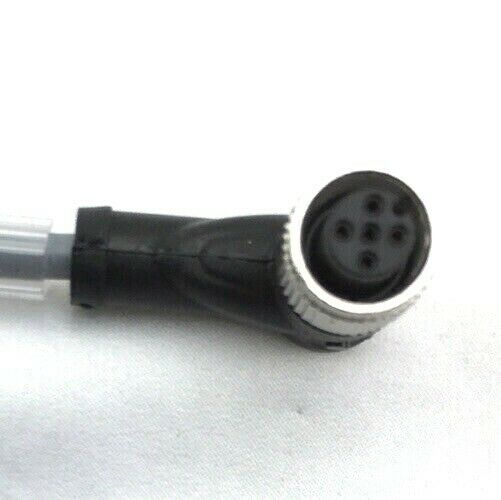

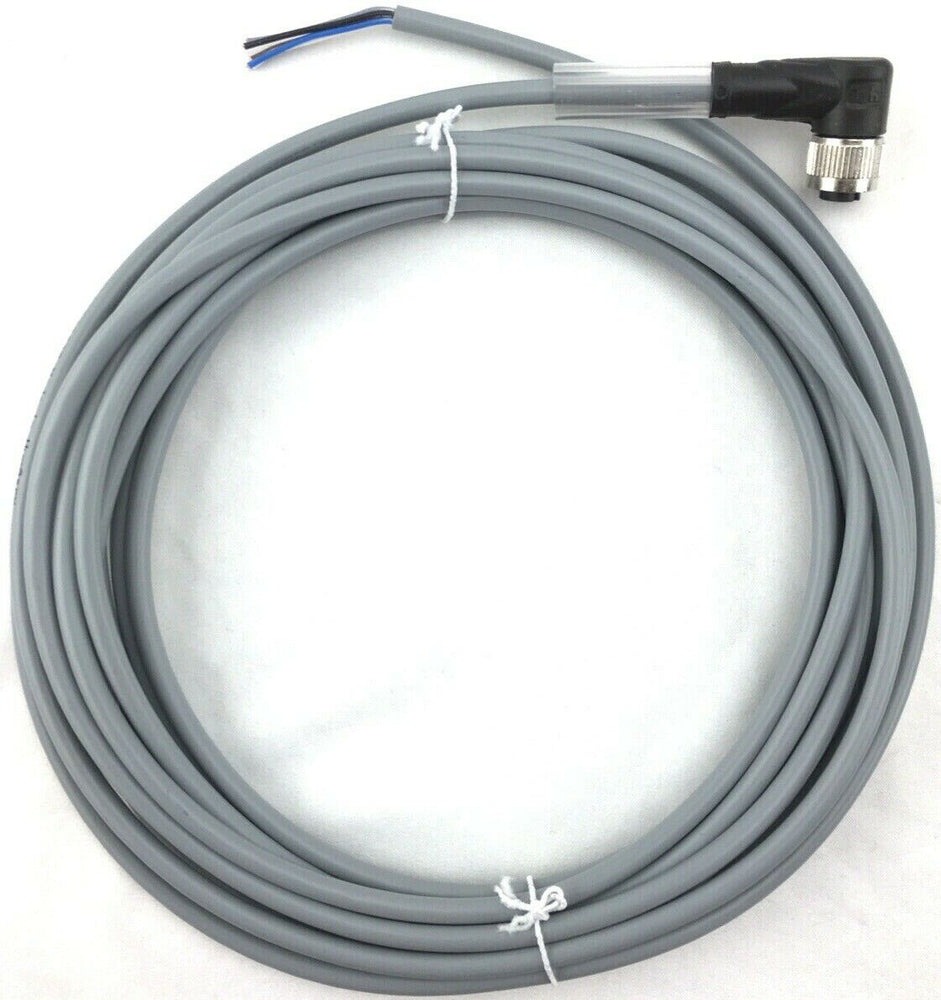

| Female cordset, M12, 5-pin, PVC cable | ||
| General specifications | ||
|---|---|---|
| Number of pins | 5 | |
| Connection 1 | socket | |
| Construction type 1 | right angle | |
| Threading 1 | M12 | |
| Connection 2 | cable end | |
| Electrical specifications | ||
| Operating voltage | max. 48 V AC / 60 V DC | |
| Operating current | max. 4 A | |
| Volume resistance | < 5 mΩ | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Standards | IEC 61076-2-101:2008 with test voltage 500 VDC | |
| Flammability | Grip: UL 94 | |
| Specification | connector M12 x 1 : IEC 61076-2-101 | |
| Ambient conditions | ||
| Ambient temperature | Body: -40 ... 90 °C (-40 ... 194 °F) cable, fixed: -25 ... 70 °C (-13 ... 158 °F) cable, flexing: -5 ... 70 °C (23 ... 158 °F) |
|
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Contact elements | spring-loaded contact socket | |
| Pin diameter | 1 mm | |
| Degree of protection | IP67 / IP68 / IP69k | |
| Material | ||
| Contacts | CuSn / Au | |
| Contact surface | Au | |
| Body | TPU, black | |
| Cable | PVC | |
| Slotted nut | Diecast zinc | |
| Core insulation | PVC | |
| Cable | fine-strand, flexible | |
| Sheath diameter | ∅ 4.8 mm | |
| Bending radius | > 10 x cable diameter, moving | |
| Color | grey | |

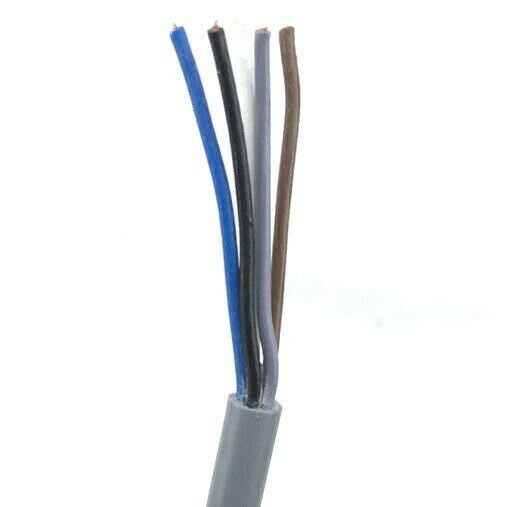

| Number of cores | 5 | |
| Core cross-section | 0.34 mm2 | |
| Conductor construction | 19 x 0.15 mm ∅ | |
| Length | 5 m | |
| Flammability | ||
| Contact carrier | 94 HB | |
| Housing | 94 V-2 | |
