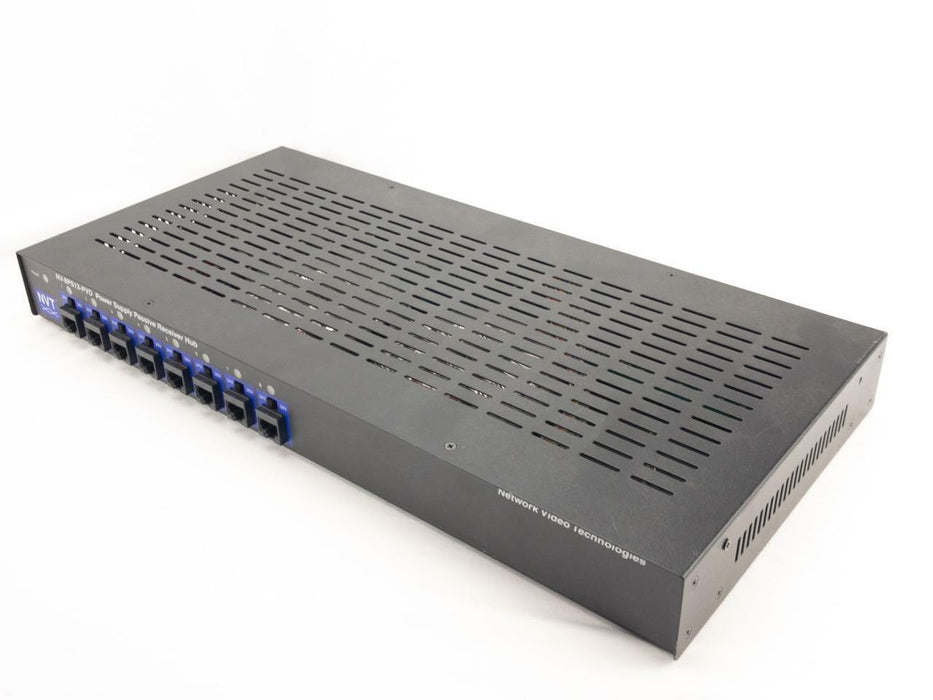

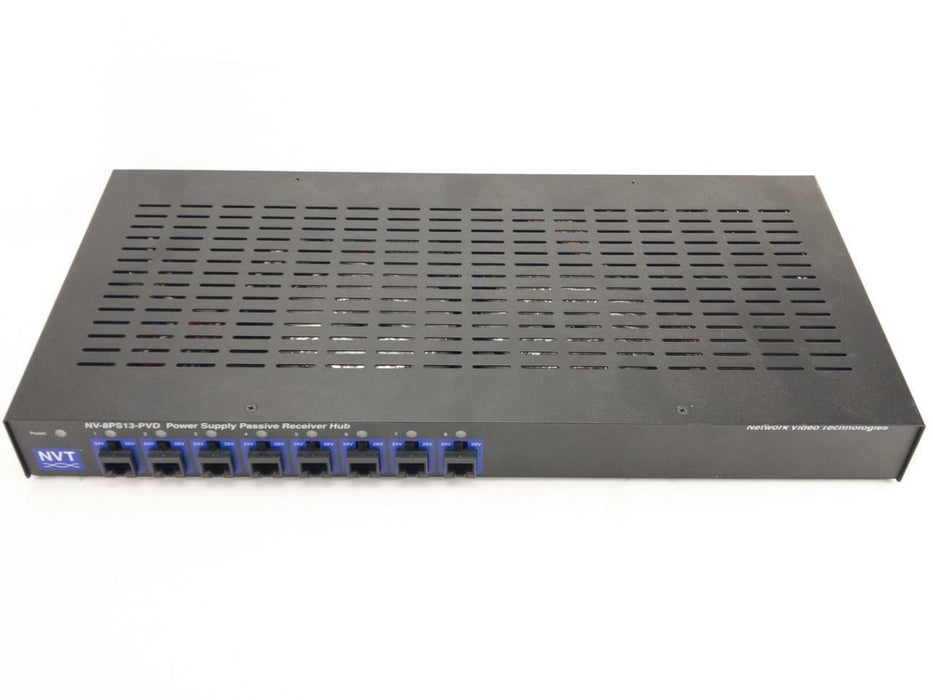

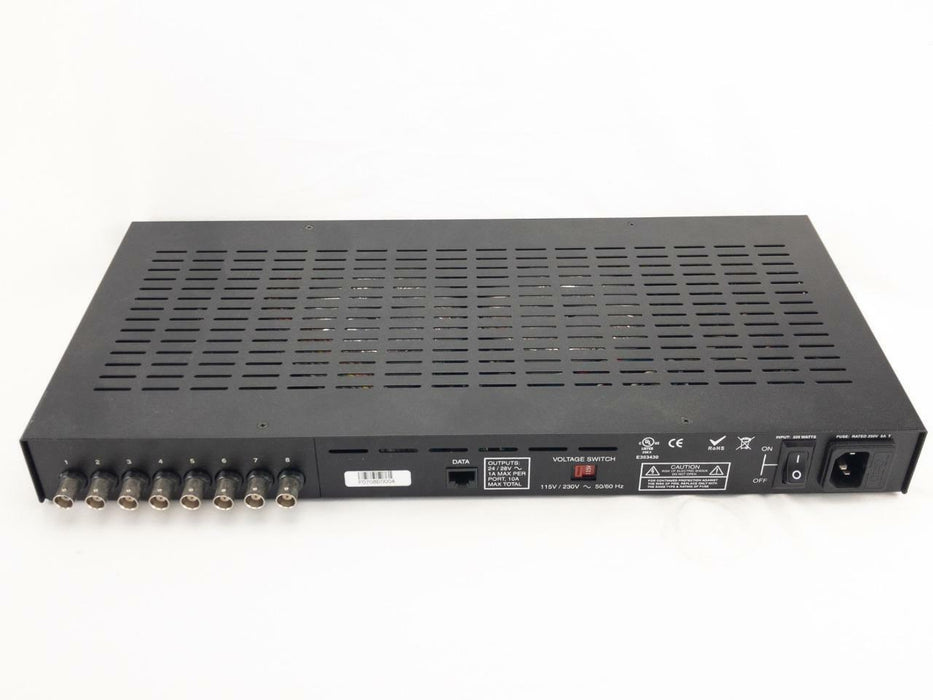

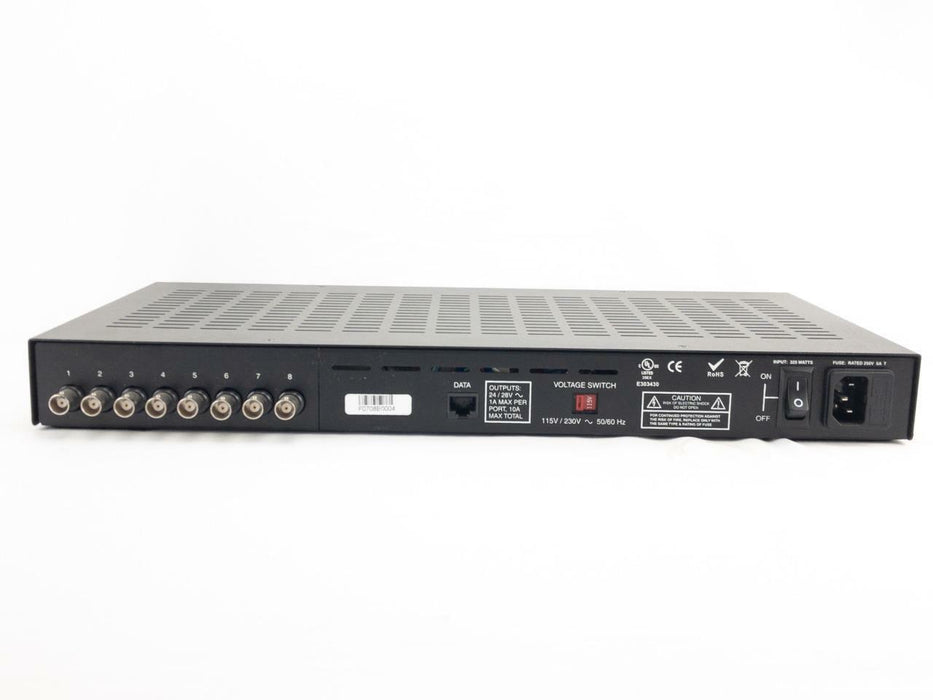

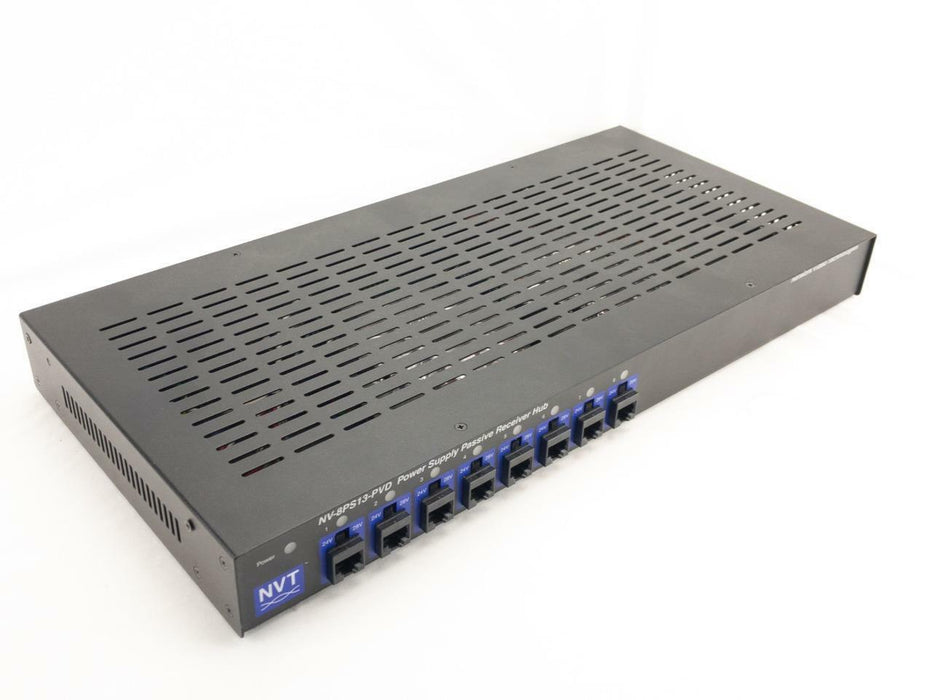

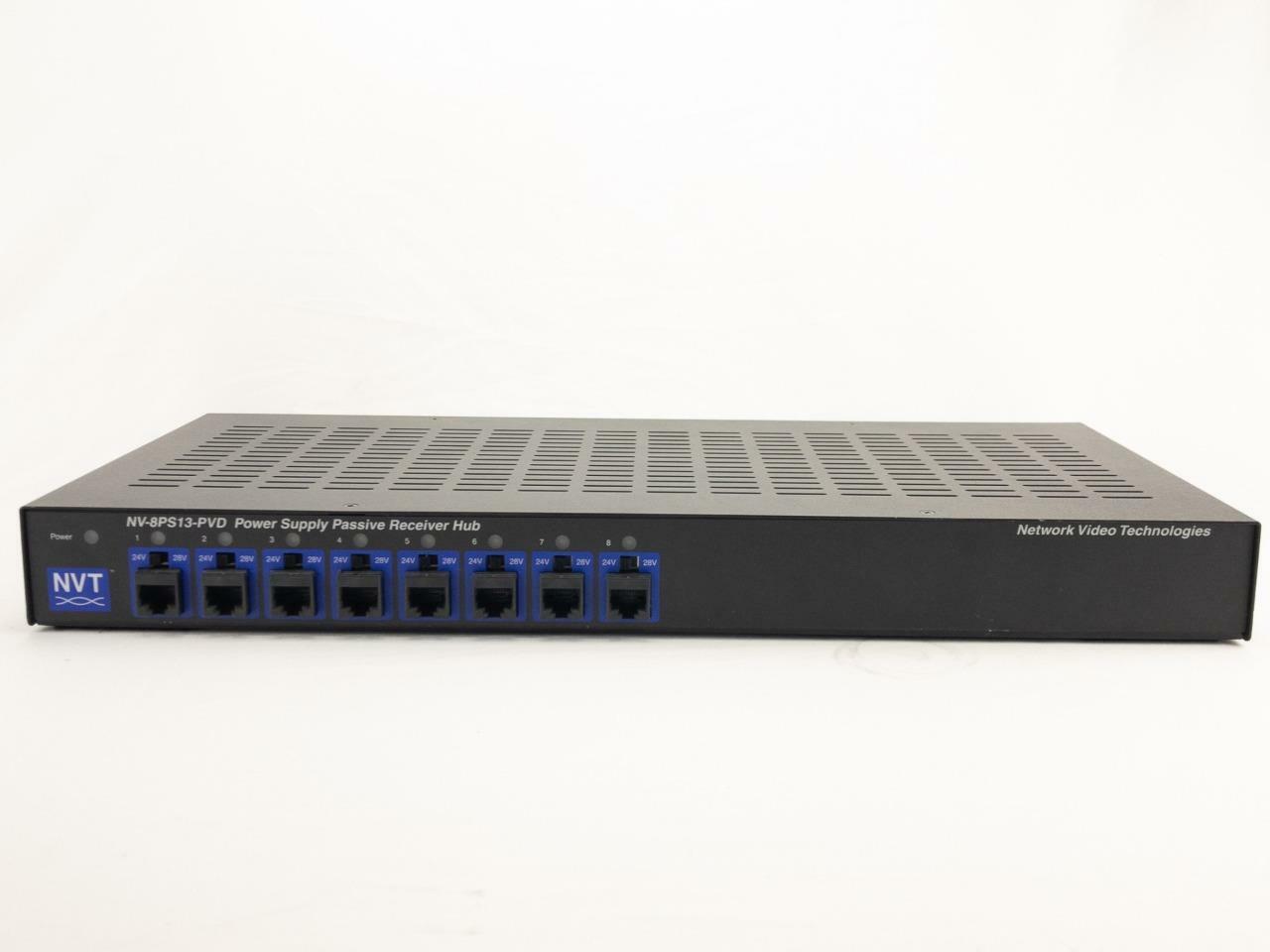

NVT NV-8PS13-PVD 8-Channel UTP Power Supply Passive Video Receiver Hub

by NVT
$215.00
SKU rwk-NV8PS13-PVD-used
NVT NV-8PS13-PVD 8-Channel UTP Power Supply Passive Video Receiver Hub
No Signs this was ever installed or used. No original packaging. Rack Mount ears are included along with power cable.


The NVT NV-8PS13-PVD provides 24 or 28VAC power for up to 8 CCTV cameras over the same UTP cable used for video and telemetry communication. This allows a single Cat5 cable connection between an NVT UTP camera and the system DVR, encoder or NVR. In addition to simplifying the installation process and being a major cost saver, this type of configuration also provides better power management.

FEATURES

  • Supplies 24VAC power while allowing video and telemetry signal pass-through
  • Independently selectable 24VAC - OFF - 28VAC with 1Amp per channel
  • Low profile design with high port density saves rack space (1RU high)
  • Transient and automatic reset fault protection
  • Diagnostic LEDs indicate load/no load, miswire and overload conditions
