NVT NV-4PS13-PVD 4-Channel Power Supply Passive Receiver Hub Cameras UTP Cat5e
by NVT
Sold out
$80.00
SKU NV-4PS13-PVD_USED

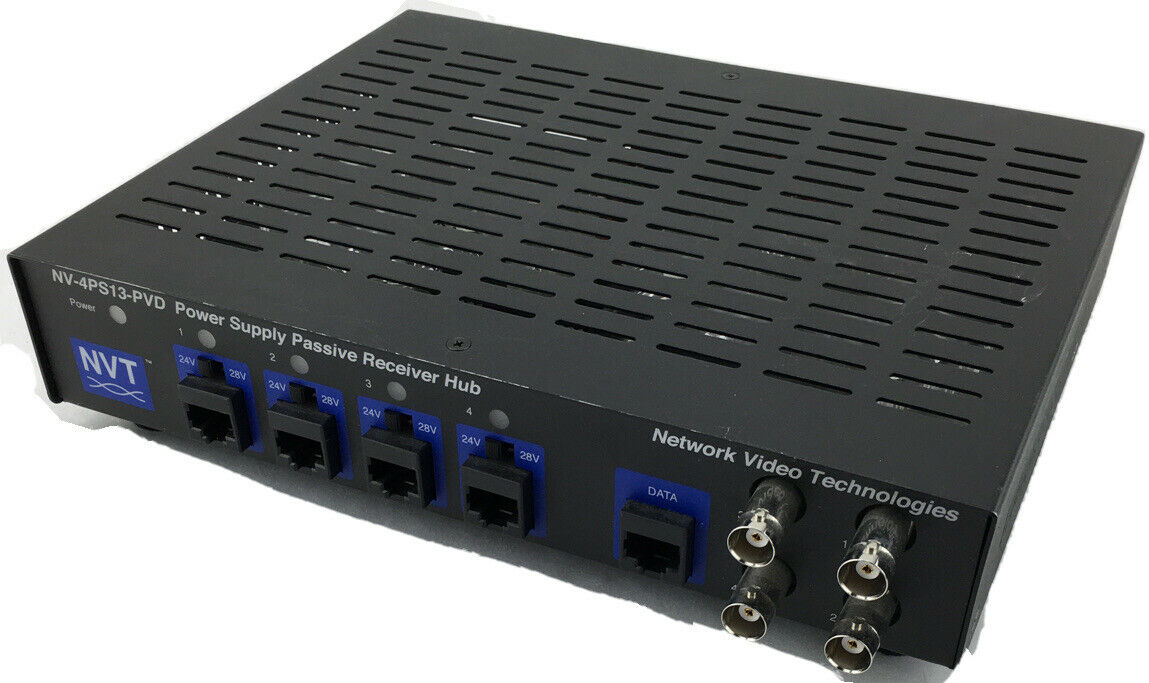

NVT NV-4PS13-PVD 4-Channel Power Supply Passive Receiver Hub Cameras UTP Cat5e
Grade A condition. Ships with power cable.
OVERVIEW
The 4-channel NV-4PS13-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, the Power Supply Passive Video Receiver Hub has independently selectable 24VAC-OFF-28VAC outputs that can support at-distance camera loads up to 1 Amp per channel. Use with NVT’s PVD™ transceivers for cable runs under 750ft (225m). A built-in passive receiver hub allows connection to DVR or an encoder for IP transmission. Per-channel diagnostic LEDs display load /no-load, miswires, or fault conditions at a glance. Automatic-reset fault protection, transient protection, and ground loop free individually floating outputs.
SPECIFICATIONS
- Provides Class 2 SELV camera power while receiving video transmission and delivering P/T/Z telemetry all over a single 4-pair Cat5e cable
- Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
- Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel
- Automatic-reset fault protection; transient protection
- Frequency Response DC to 10 MHz
- Individually floating outputs ensure total ground-loop immunity
- Diagnostic LEDs show load/no load, miswires, and overload conditions
- Use with the NV-216A-PV, NV-218A-PVD or the NV-226J-PV transceiver at the camera
- Power cameras via UTP over significant distances
- 1U high x 8” deep wall, desk or desk rack-mountable
