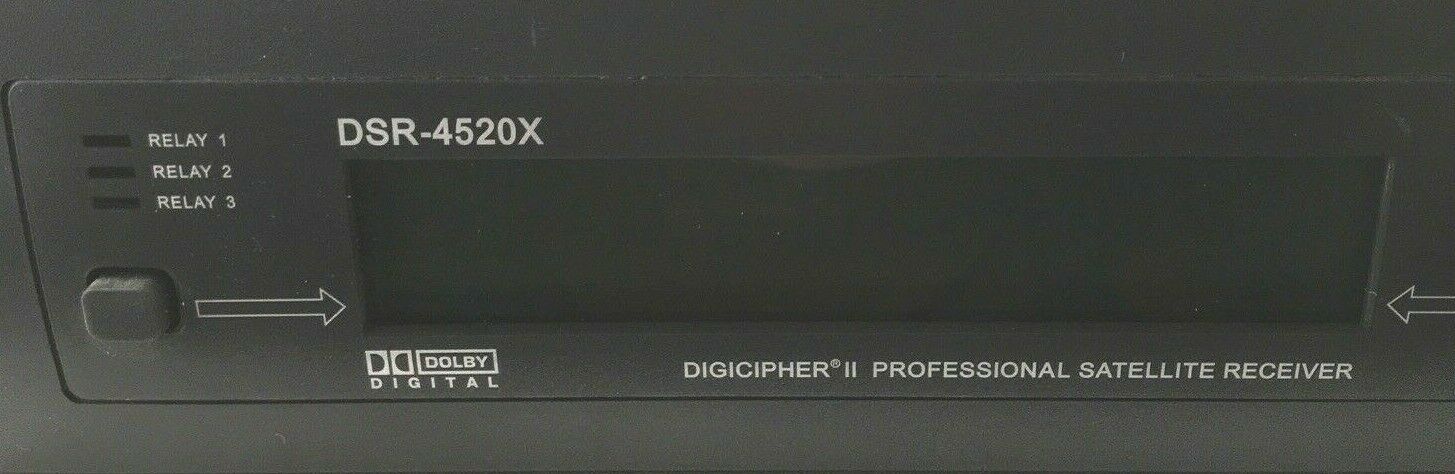

Motorola DSR 4520 / DSR-4520X DigiCipher II Professional Satellite Receiver
by Motorola
Sold out
$40.00
SKU DSR-4520X_USED

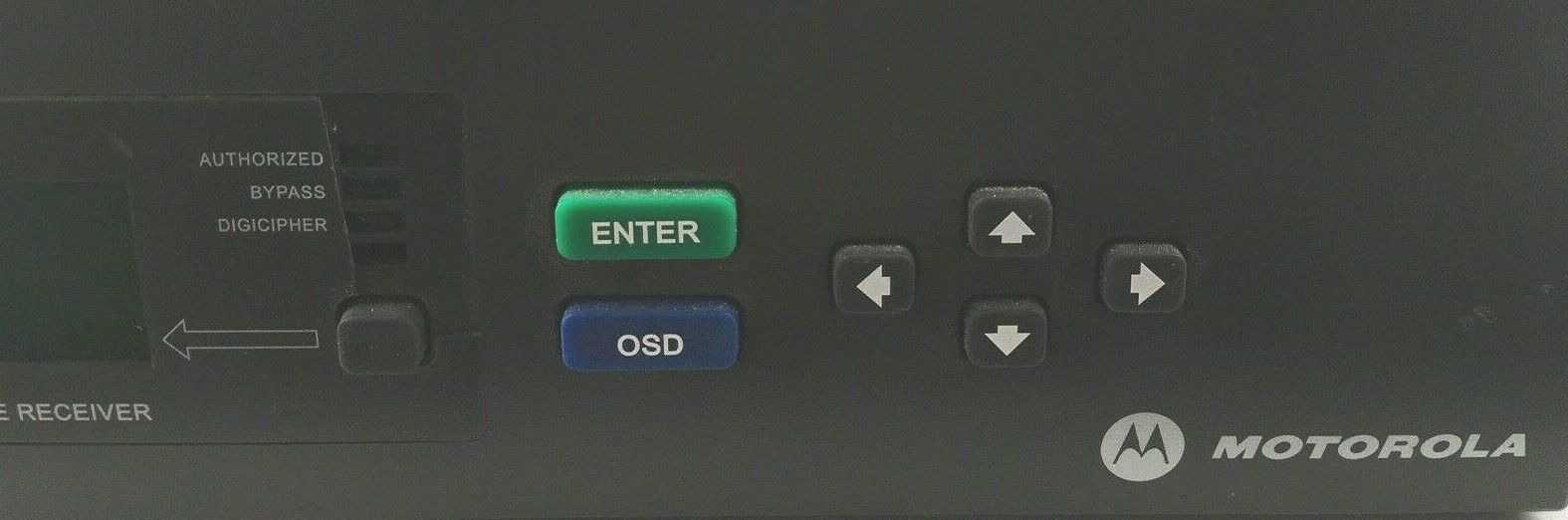

Motorola DSR 4520 / DSR-4520X DigiCipher II Professional Satellite Receiver

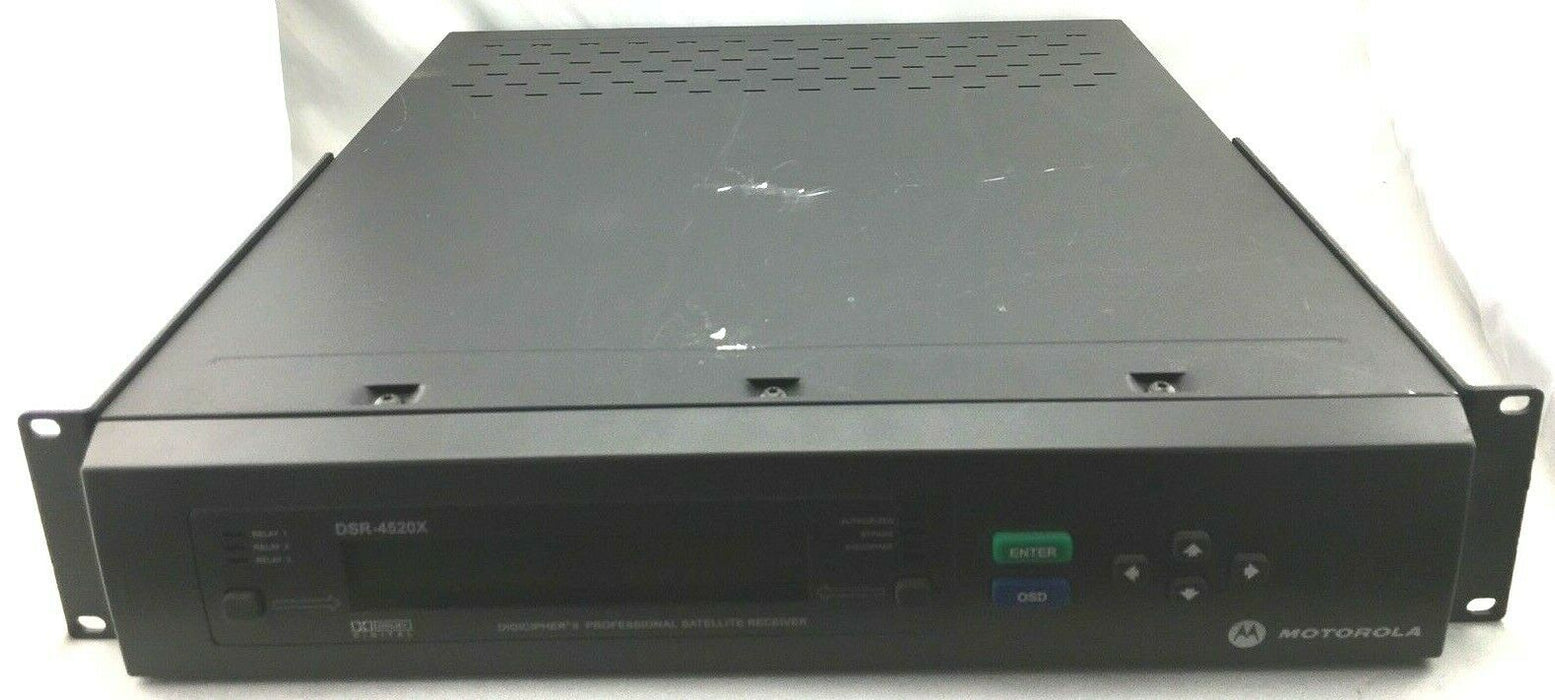

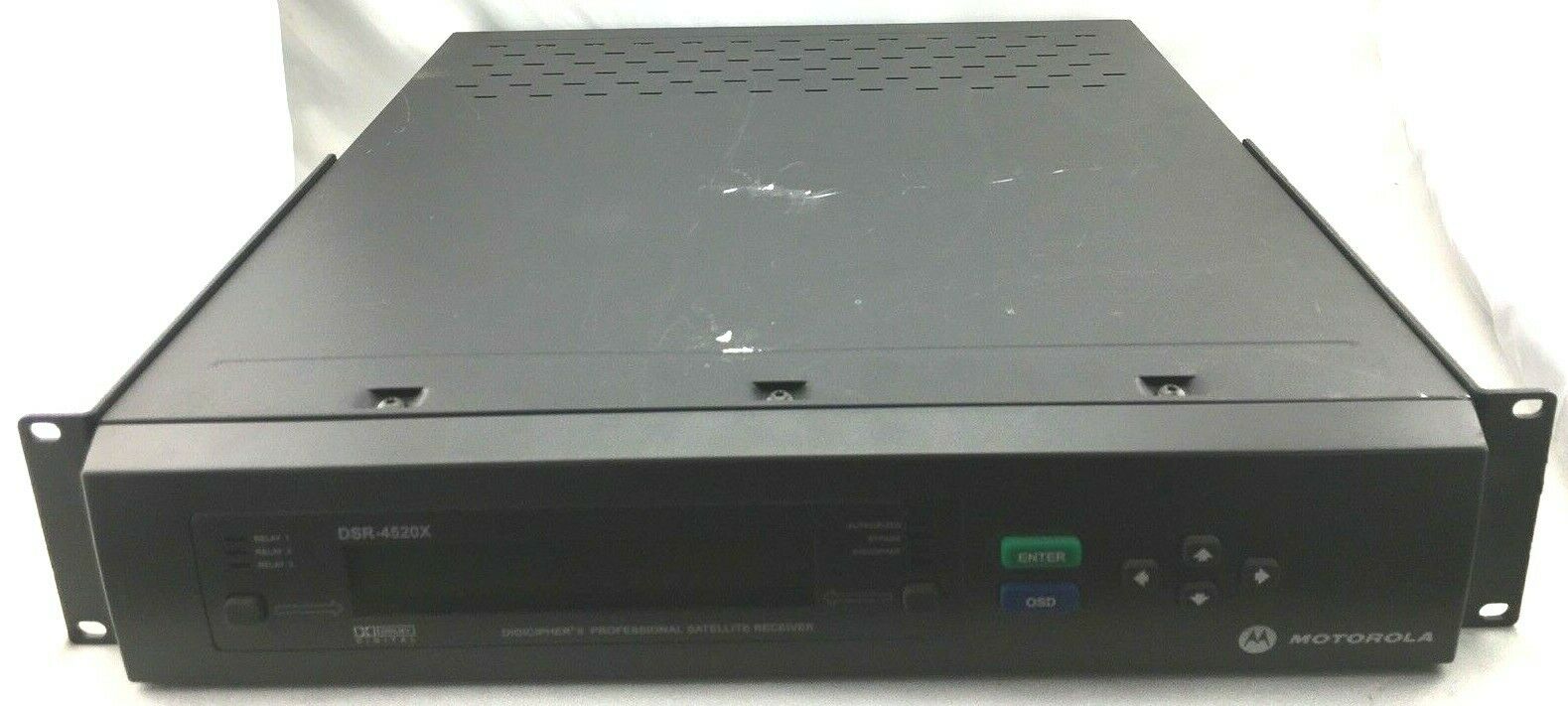

Grade A- physical condition. Has some scuffs/scratches. Ships with universal power cable.
The Motorola DSR-4520X is the new advanced featured DigiCipher® II integrated receiver/decoder (IRD).
The Motorola DSR-4520X digital satellite receiver is
designed for cable operators and other commercial
satellite operations who want to maintain their signal
in a digital format. Incorporating multiple digital
outputs, the Motorola DSR-4520X is the IRD to provide
solutions for today’s needs and tomorrow’s opportunities. Digital outputs on the Motorola DSR-4520X

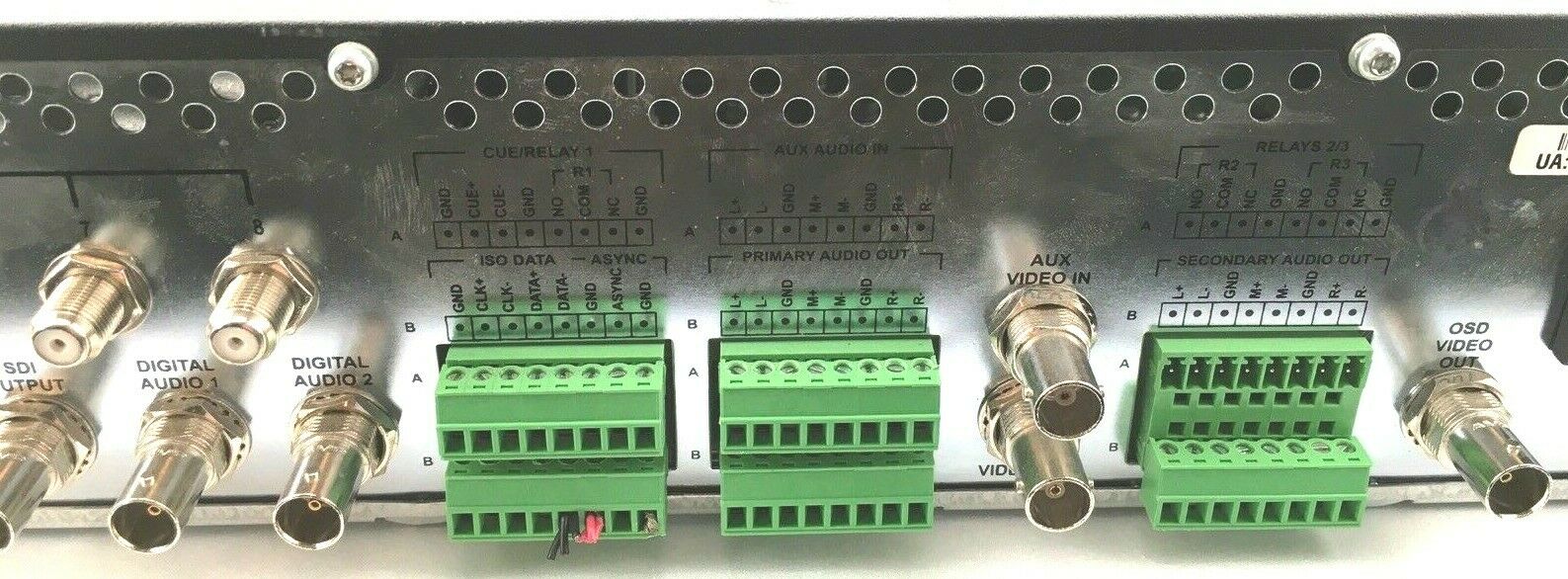

include: serial digital interface (SDI) output, AES/EBU
audio outputs and asynchronous serial interface (ASI)
output. Digital data outputs include: Internet protocol
data, isochronous data and asynchronous data.
The SDI output provides 2 channels of embedded
audio to allow easy routing of video and audio through
a cable facility. The discrete AES audio outputs can
be used in combination with the SDI video without the
need for audio de-embedding equipment. Dolby®
digital audio pass-through is available on both the SDI
embedded audio and the discrete AES audio outputs.
A complete MPEG-2 transport stream is available
through the ASI output.

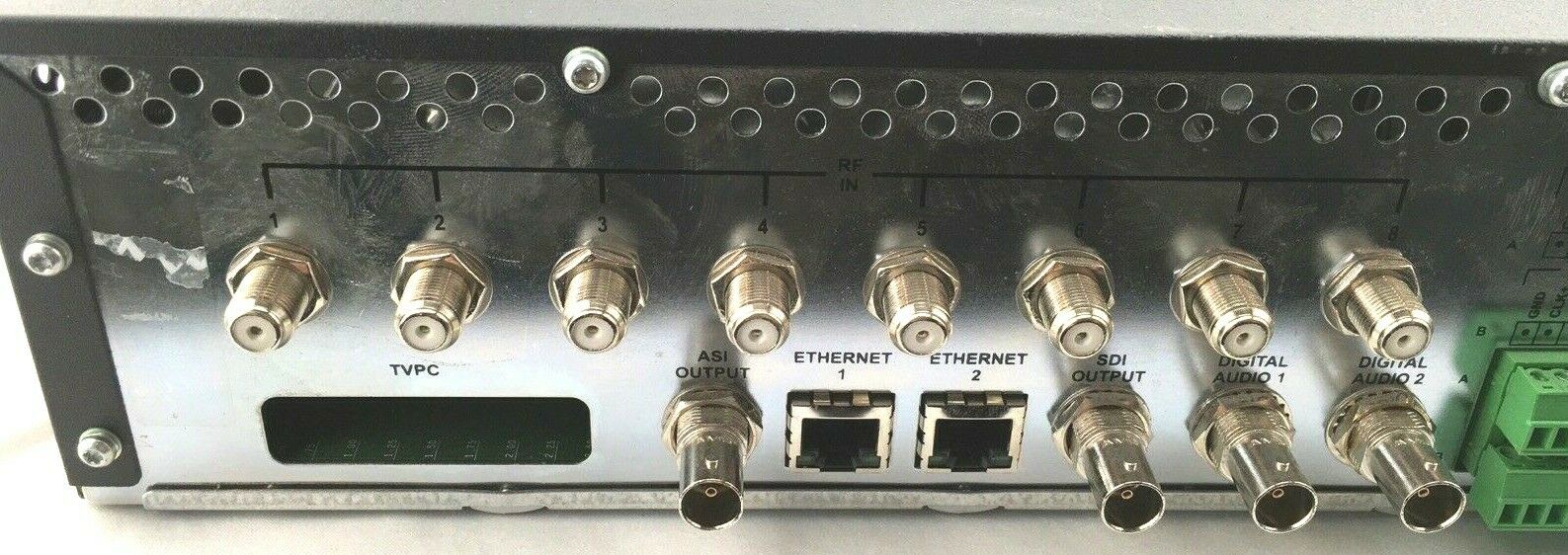

IP data is output directly onto one of the 2 Ethernet
connectors on the DSR-4520X. A transport stream
consisting entirely of IP data can be output from the
DSR-4520X Ethernet port. The Ethernet connections
also allow remote command/control capabilities.
Additional data delivery applications are supported
through asynchronous (RS-232) and isochronous
(RS-449) ports.
Highlights Include:
• SDI output with 2 channels of
embedded audio
• 2 discrete AES digital audio outputs
• 10/100 BaseT Ethernet port
• ASI output
• Variable symbol rate from 3.25 Msps
to 29.27 Msps
• Supports maximum 47.2 Mbps
throughput for MegaPipe
configurations
• Dolby® brand AC-3® audio processing
• VBI reinsertion SID/AMOL-I & II,
NABTS and closed caption
• Separate video output for diagnostic
on-screen-display (OSD)
• DigiCipher II conditional access
control
• Bypass video and audio inputs
• DTMF cue tones for local ad insertion
• 3 sets of contact closures (1 set can
be used for summary alarm)
