Miller Edge MWR02 Universal Receiver Saftey Swing Slide Edge Gates 400-MW-001

Sold out
Miller Edge MWR02 MWR-02 Universal Receiver for SafteySwing Slide Edge Gates NEW

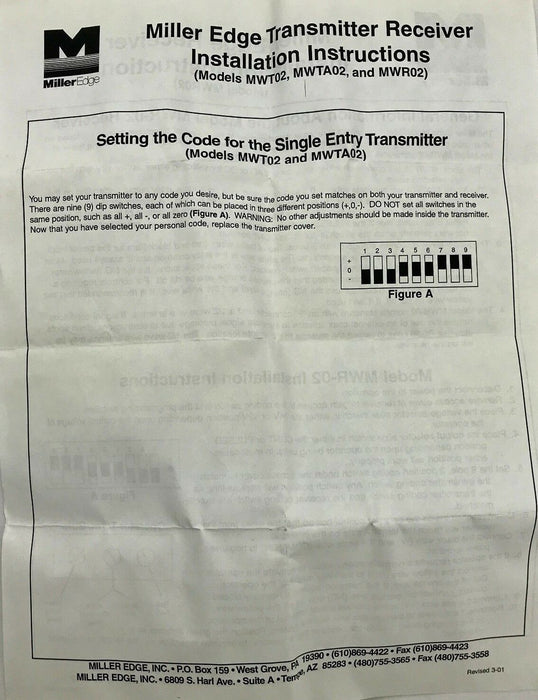

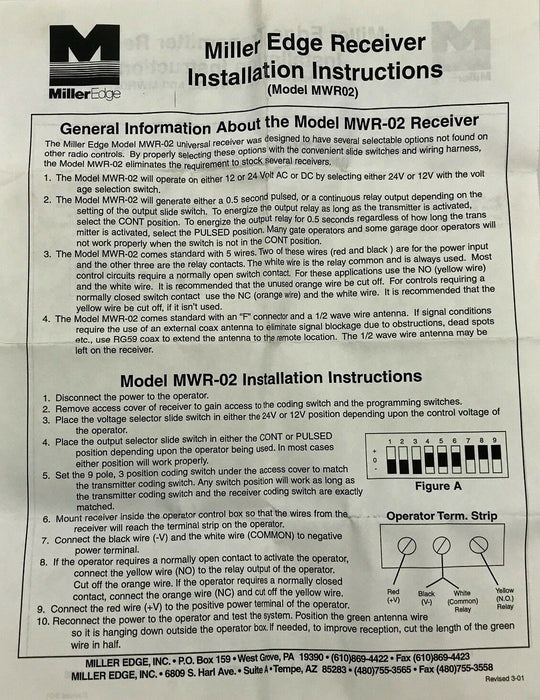

No packaging, never used, comes with instructions.

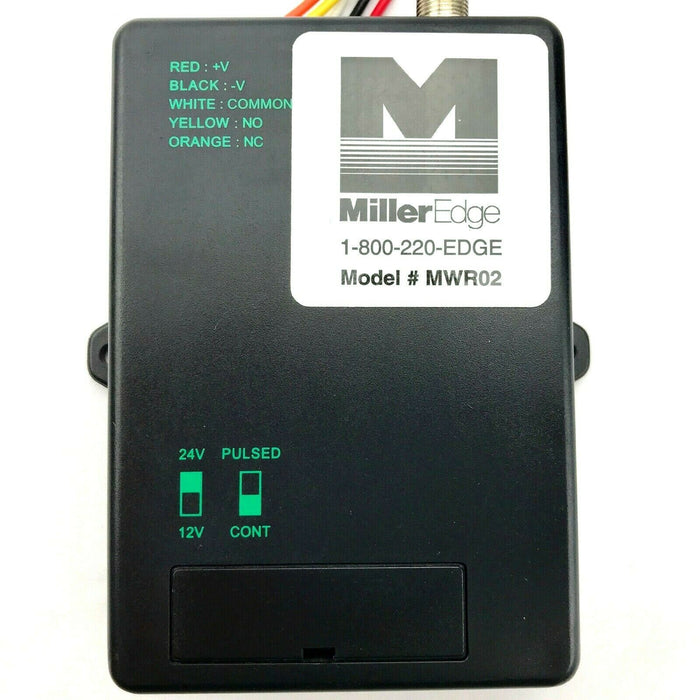

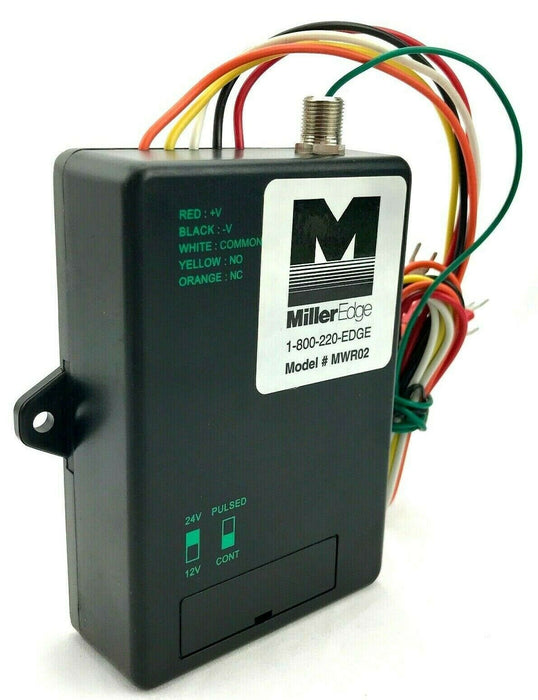

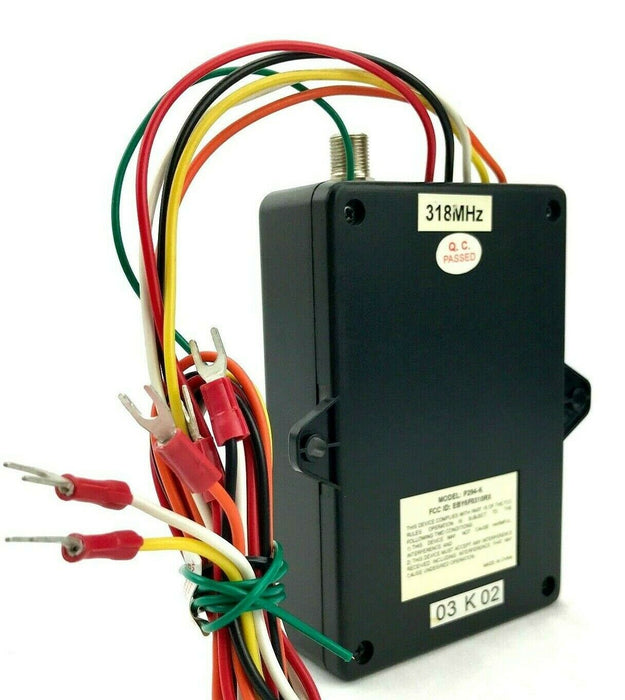

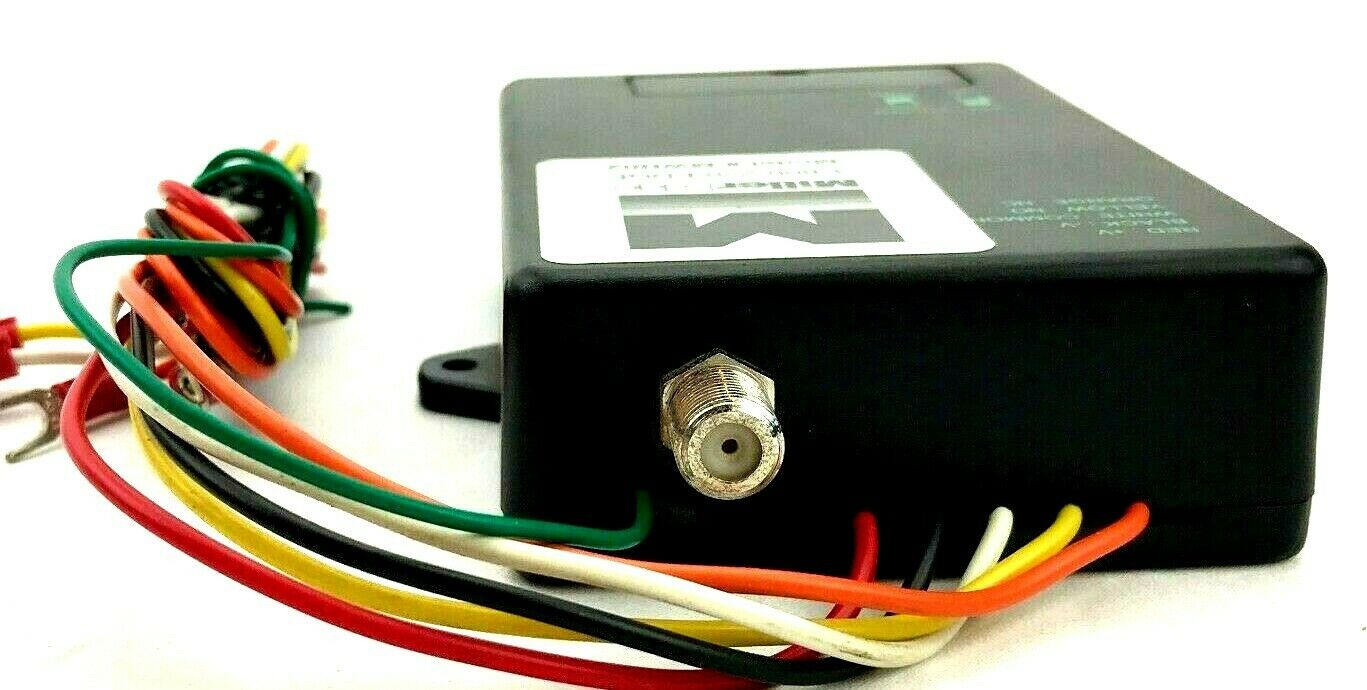

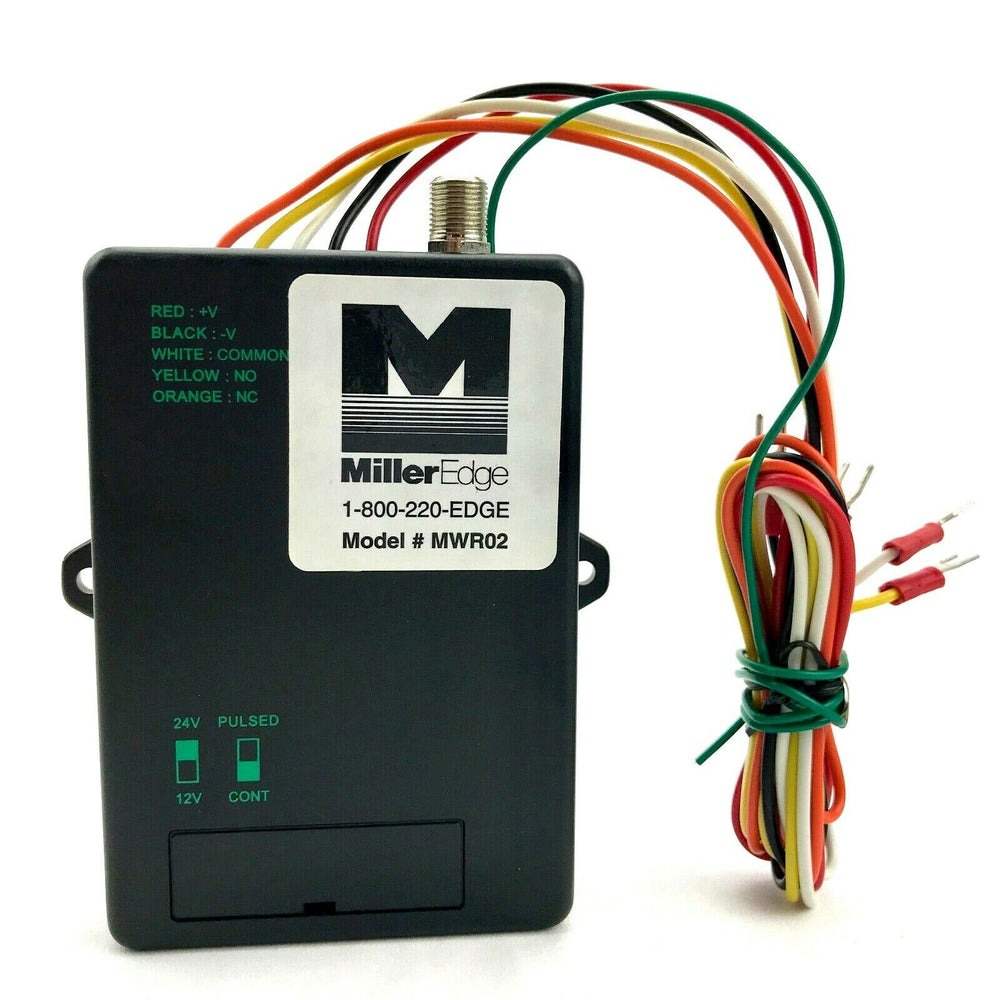

Model #MWR02 Receiver
  • Enclosure Material: Polycarbonate
  • Enclosure Color: Black
  • Response Time: < 3 msec.
  • Operating Temperature: -25o Fto 120o F
  • Maximum Operating Distance: 100 Feet
  • Power: 12 or 24 volt AC or DC
  • Electrical Configuration: Optional N.O. or N.C.
  • Special Features: 19,683 programmable receiver codes
  • Pulse or Continuous Signal
The Miller Edge gate and door edge transmitters are designed to provide obstacle sensing protection for a variety of motorized gates and doors. They are easily mounted and wired to the gate or door edge sensor. When the sensing edge comes into contact with an obstruction, a closed circuit signal is created and is sent to the transmitter. The transmitter relays the information to the receiver and the receiver passes the message along to the operator motor. The gate or door stops movement instantaneously and will then reverse the direction of travel.

Both the Miller Edge receiver and transmitters are designed to have several selectable options not found on other radio controls. Simply select these options with the convenient dip switches and wire harness. The receiver will operate on either 12 or 24 volt AC or DC and is capable of sending a pulse or continuous signal.
