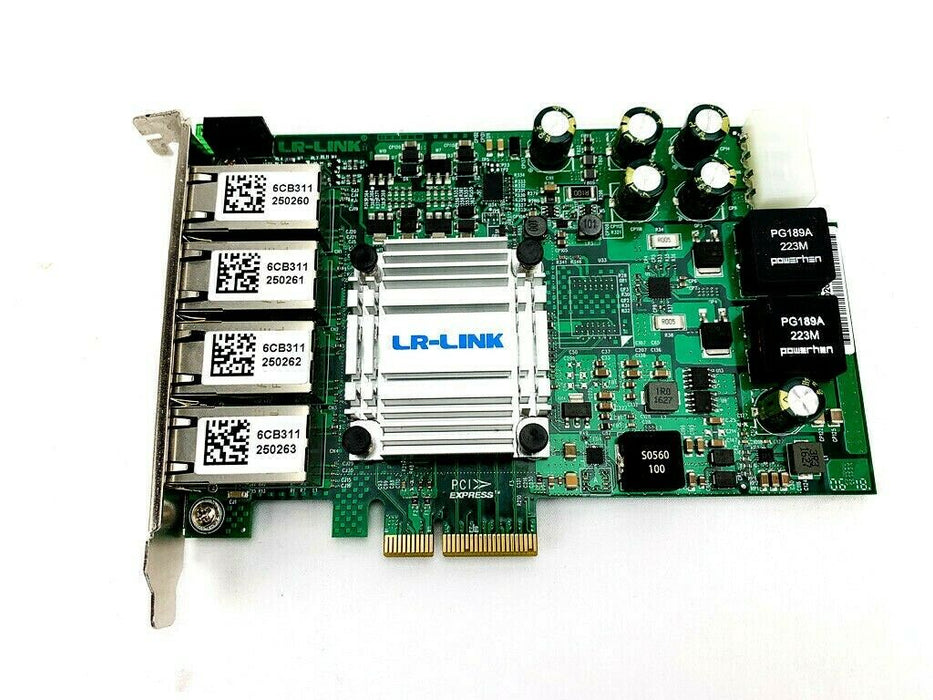

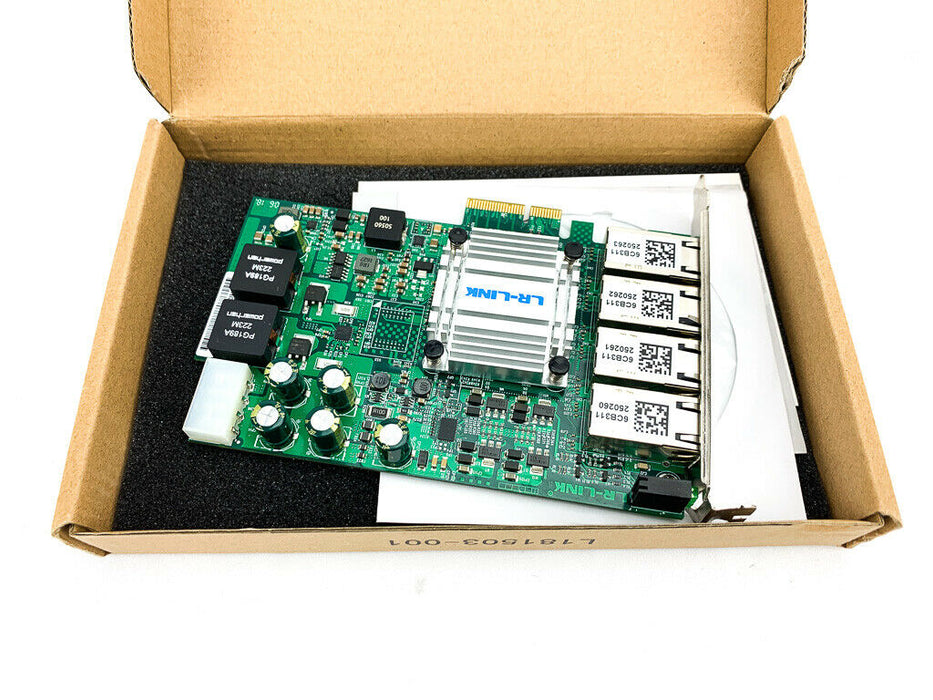

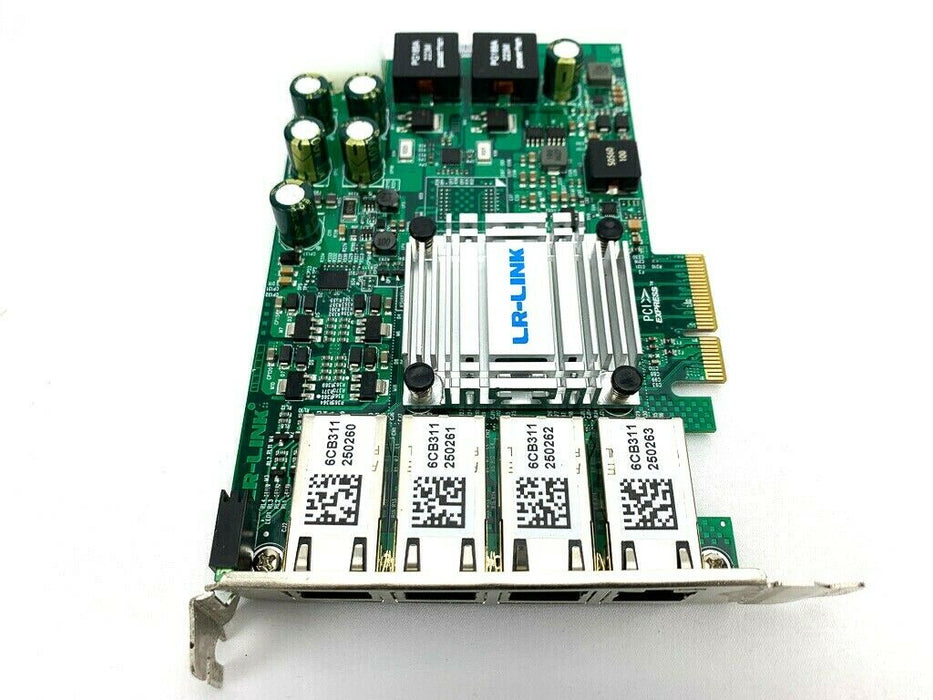

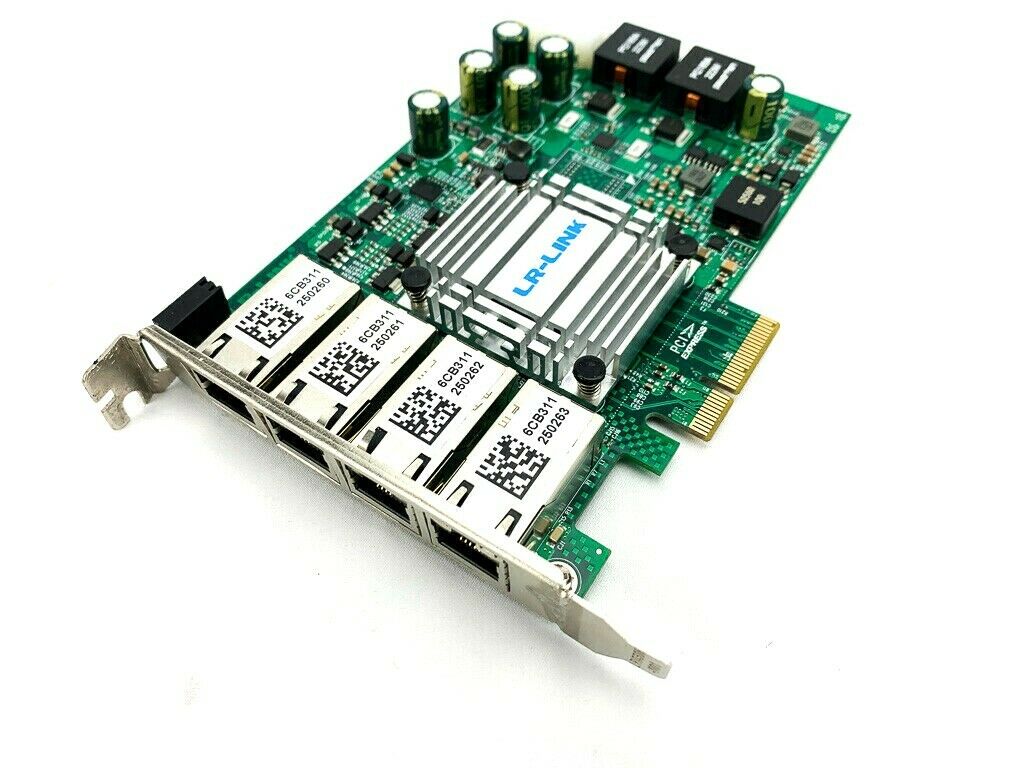

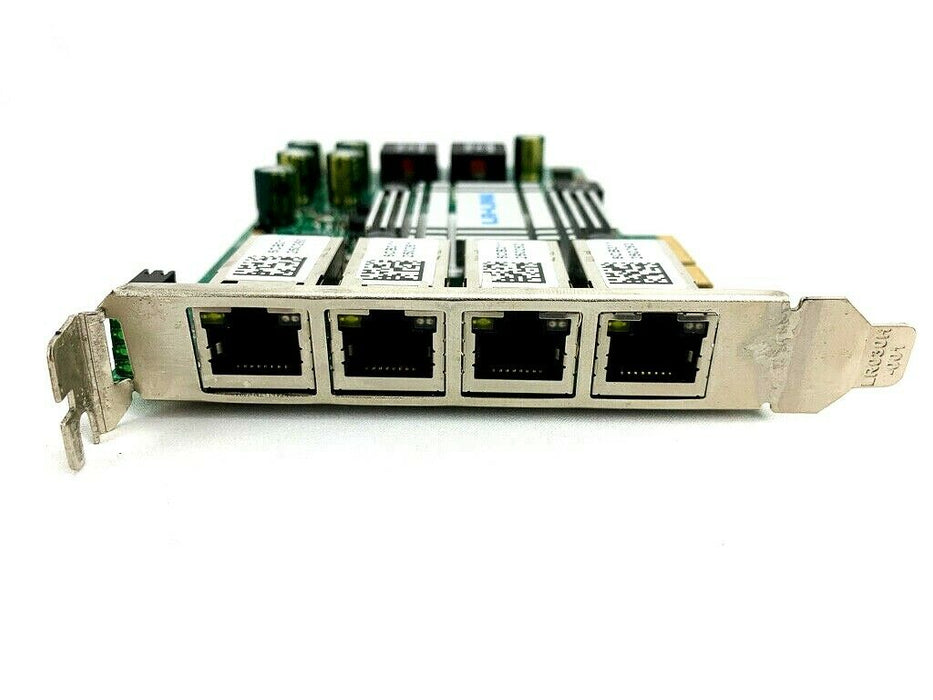

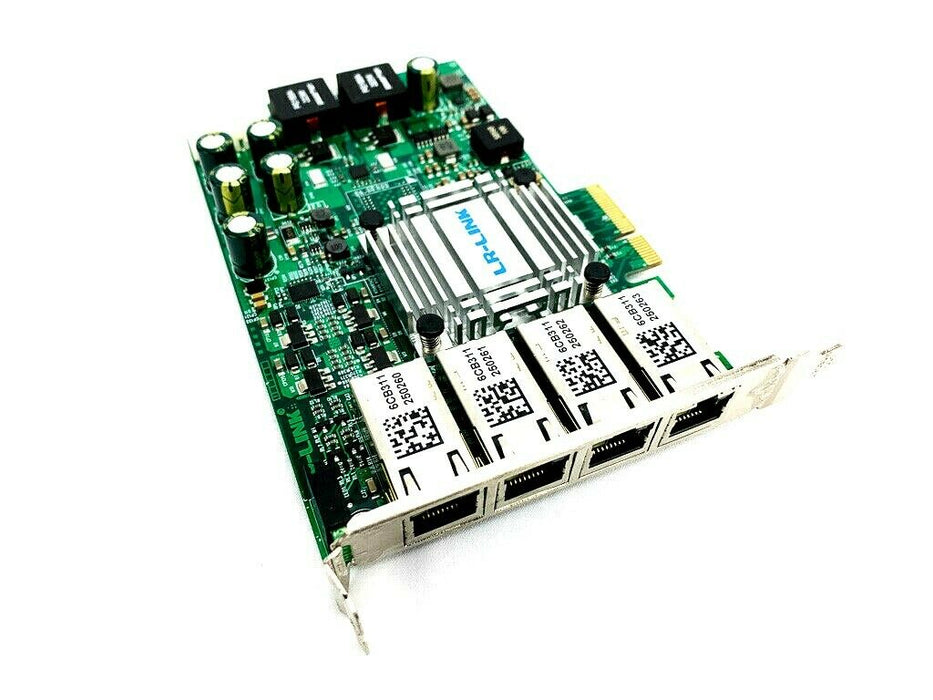

LR-Link LREC9724HT-POE 1G 4-Port PoE PCIe x4 Ethernet Server Adapter Card SFF
by LR-Link
Sold out
$145.00
SKU SY_LREC9724HT-POE
LR-Link LREC9724HT-POE 1G 4-Port PoE PCIe x4 Ethernet Server Adapter Card SFF
BRAND NEW ITEM
- bull Quad Port PoE+ Adapter
- bull 10/100/1000Mbps per port
- bull PCI Express 2.1, 2.5 GT/s, x4 lanes
- bull Supports +12V DC AT/ATX input
- bull Support 802.3at and IEEE 802.3af, each port delivers up to 30W of power, 125W total power budget
- bull Powered Device (PD) auto-detection and classification per PoE+ port
- bull 2.25KV Isolation protection on LAN ports and power
- bull Supports IEEE-1588 and IEEE-802.1 AS
- bull Supports IEEE 802.3u Auto-Negotiation
- bull Compatibility: IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, 802.3at
LREC9724HT-POE IS PCI Express x4 RJ45 1000Mbps Gigabit Ethernet Quad Port high-performance image capture card, based on Intel 1350AM2 Chipset.The cards supports 4 independent 10/100/1000BaseT(X) 802.3af & 802.3at (PoE) compliant Ethernet ports, With 12 VDC AT/ATX power input. It can boost then provides up to 25.5 watts at 48 VDC power to maximum 2/ 4 x PoE ports on each module.
LREC9724HT-PoE is ideally designed for scientific research instrumentations. Medical Research Instrumentations, Gigabit Ethernet surveillance IP cameras in intelligent transportation systems.
