Lot of 20 EB582-08DS-000 8 Position 5mm 0.197" Black Pluggable Blocks 300VAC 15A

by EBY
$55.00
SKU EB582-08DS-000_OB

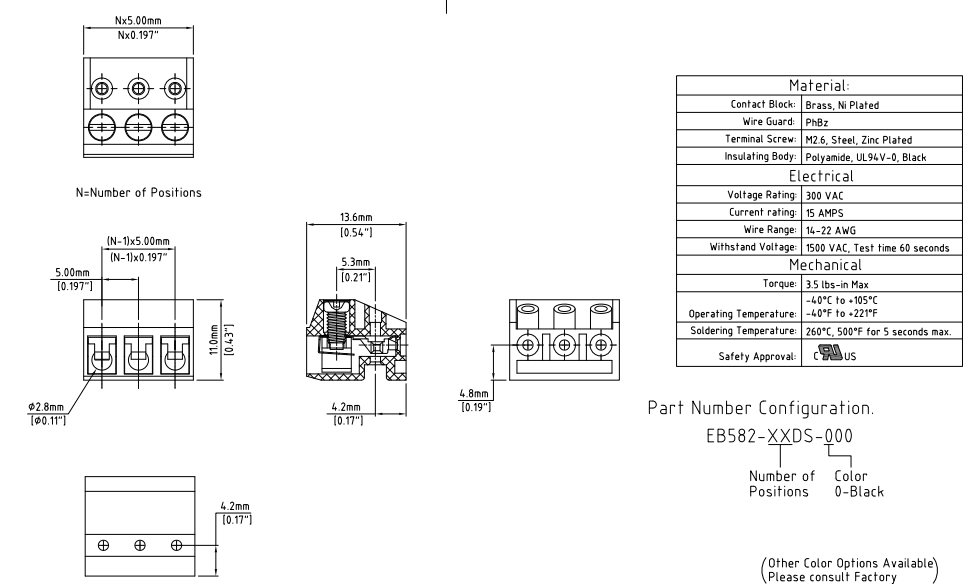

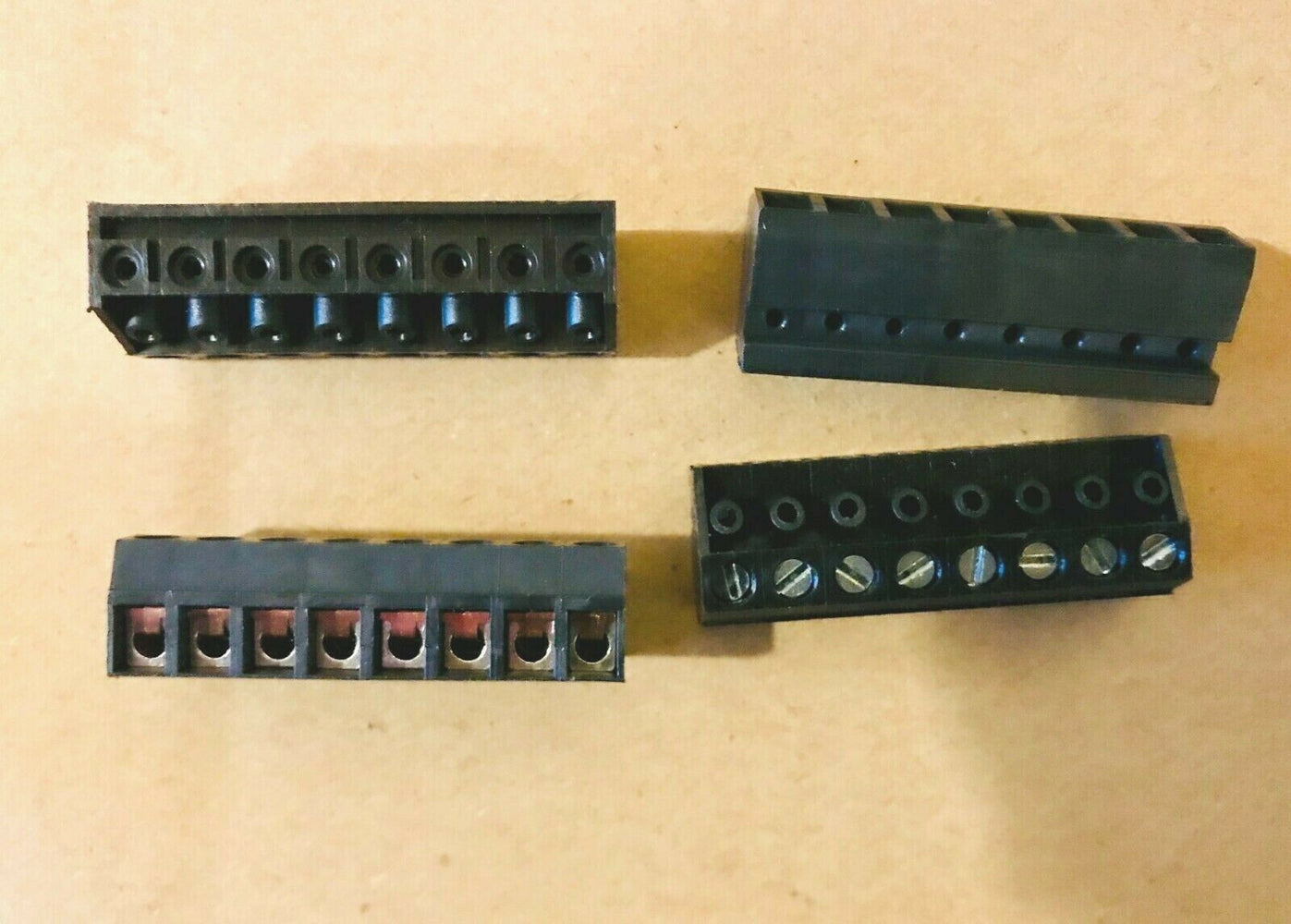

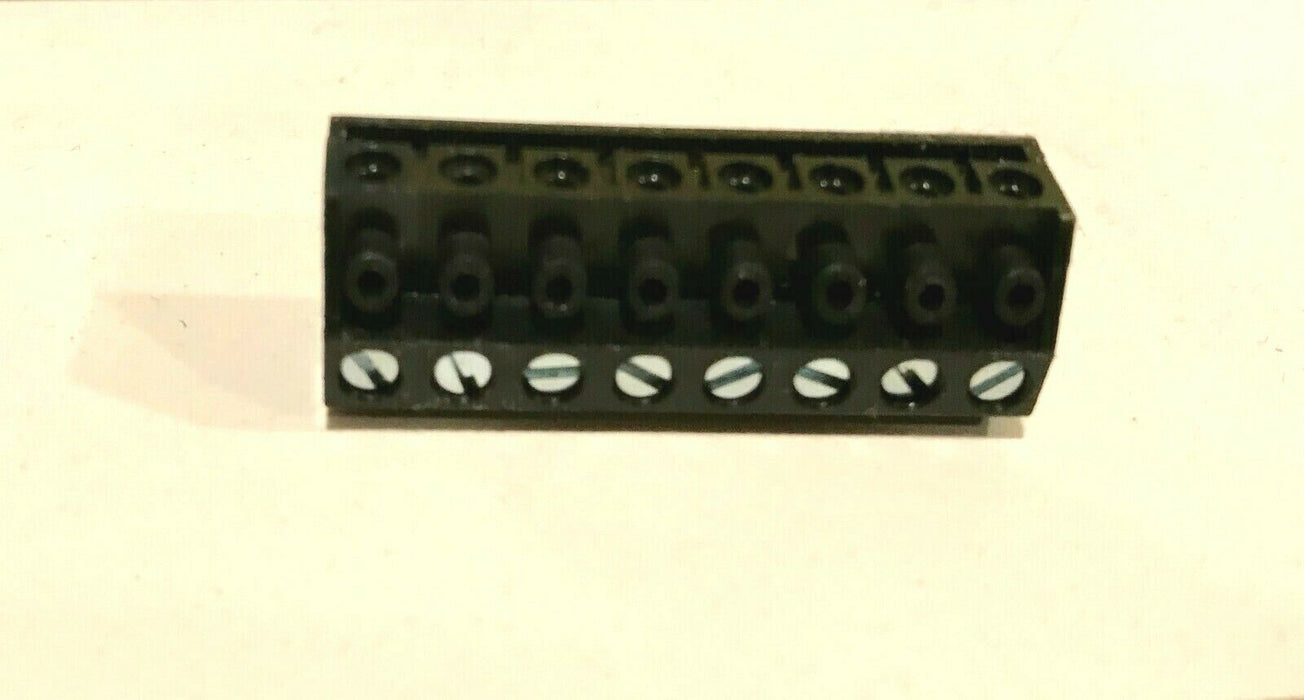

Lot of 20 Pieces of the EB582-08DS-000 8 Position 5mm 0.197" Black Pluggable Blocks 300VAC 15A

ELECTRICAL

Voltage Rating: 300 VAC

Current Rating: 15 Amps

Wire Range Min / Max: 14-22AWG

MECHANICAL:

Torque: 3.5 lbs-in. Max.

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M2.6

Terminal Screw Material: Steel, Zinc Plated

Contact Block Material: Brass, Ni Plated

Wire Guard Material: PhBz

Color: Black

COMPATIBILITY

Pin strips: PS500, PS503, PS505, PS506, PS507, PS520, PS5X3, PS650
