Lite-On SOHW-1693S DVD+/-RW Internal Rewritable Optical Drive w/ Audio Jack 16x

by Lite-On
Sold out
$20.00
SKU SOHW-1693S_USED

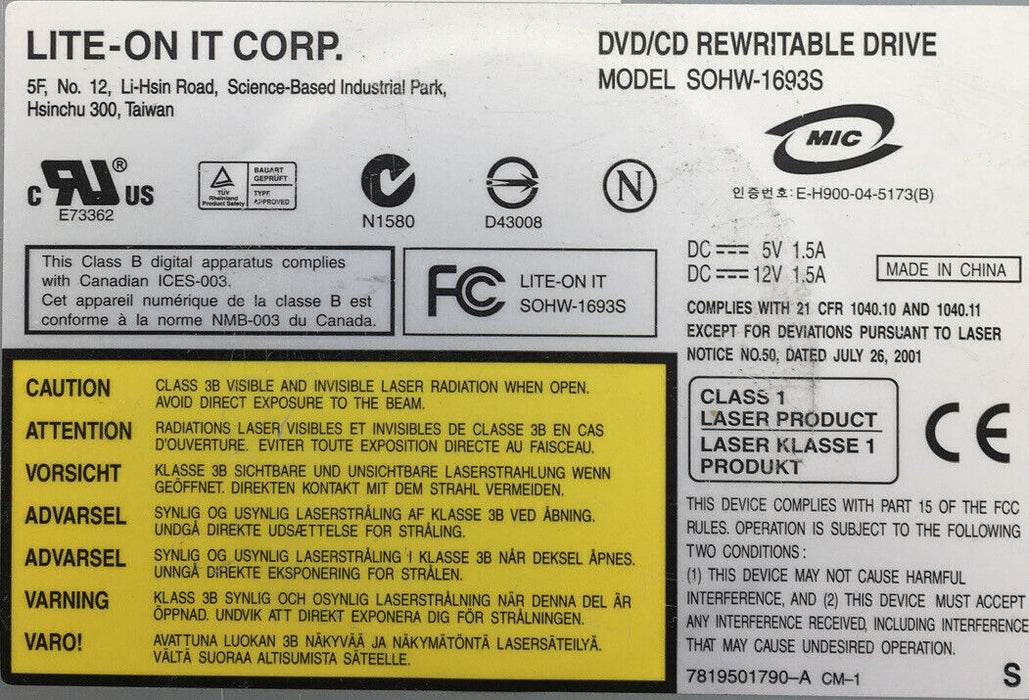

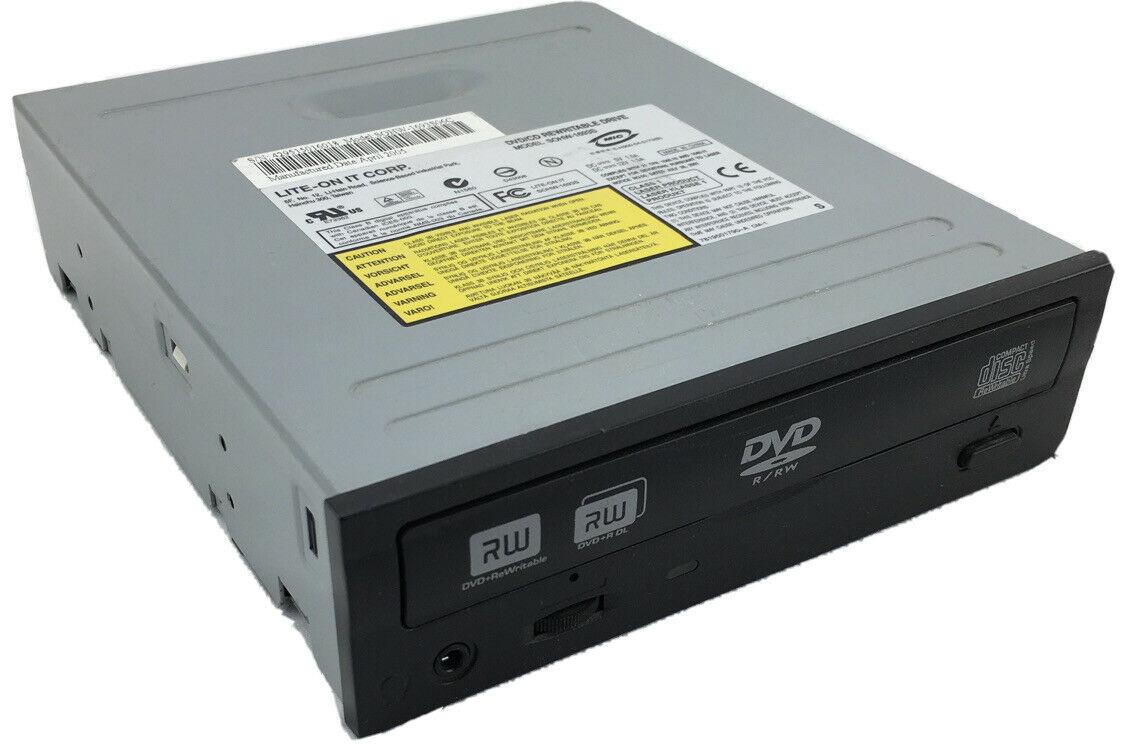

Lite-On SOHW-1693S DVD+/-RW Internal Rewritable Optical Drive w/ Audio Jack
Grade A- physical condition.

SPECIFICATIONS

POWER DEVICE

  • Type
    none

STORAGE

  • Drive Type
    DVD writer
  • Product Type
    DVD±RW (±R DL) drive
  • Enclosure Type
    internal
  • Interface
    IDE

OPTICAL STORAGE

  • Type
    DVD±RW (±R DL) - 5.25" x 1/2H
  • Form Factor
    5.25" x 1/2H
  • Form Factor (metric)
    13.3 cm x 1/2H
  • Speeds
    16x/16x
  • Read Speed
    48x (CD) / 16x (DVD)
  • Write Speed
    48x (CD) / 16x (DVD±R) / 4x (DVD±R DL)
  • Rewrite Speed
    24x (CD) / 6x (DVD-RW) / 8x (DVD+RW)
  • Supported Recording Modes
    disk-at-once, multisession, packet writing, session-at-once, track-at-once
  • Supported Media Formats
    CD Extra, CD+G (Karaoke CD), CD-DA (audio), CD-I, CD-ROM, CD-ROM XA, Photo CD, Video CD
  • Supported Media Types
    CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-ROM
  • Buffer Size
    2 MB
  • Buffer Underrun Protection
    SMART Burn
  • Access Time
    160 sec
  • Media Load Type
    tray
  • Features
    SMART-X, Vibration Absorber System (VAS)
  • Compliant Standards
    Video CD

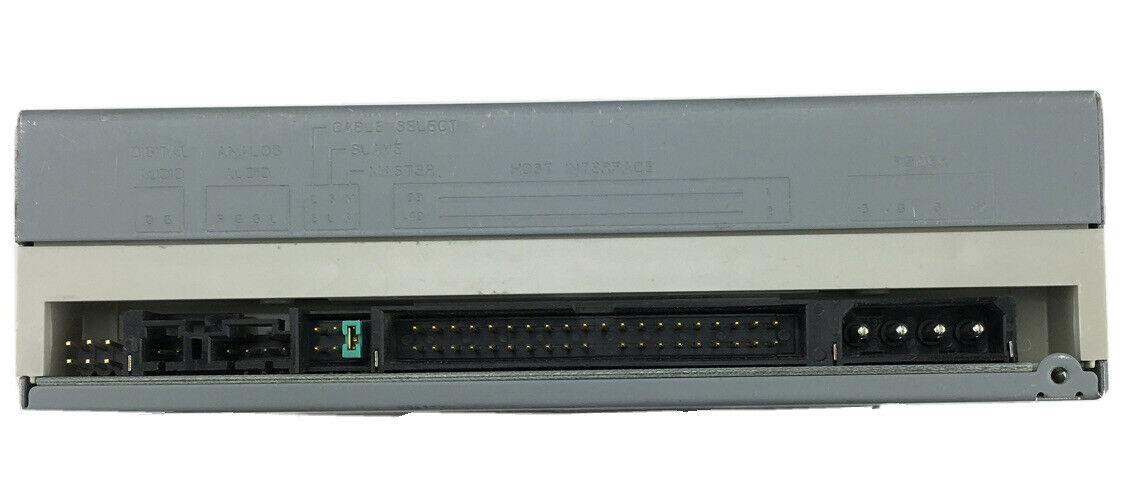

INTERFACE PROVIDED

  • Qty
    1
  • Connector Type
    40 pin IDC, mini-phone stereo 3.5 mm
  • Interface
    IDE/ATAPI, headphones

MISCELLANEOUS

  • Color
    black
  • MTBF
    70000 hour(s)
  • Color Category
    black

VIDEO

  • Video Output
    none

ENVIRONMENTAL PARAMETERS

  • Min Operating Temperature
    41 °F
  • Max Operating Temperature
    113 °F
  • Humidity Range Operating
    15 - 80%

HEADER

  • Brand
    LiteOn
  • Product Line
    LiteOn
  • Model
    SOHW-1693S
  • Packaged Quantity
    1
  • Compatibility
    PC

EXPANSION SLOTS

  • Type
    none

DIMENSIONS & WEIGHT

  • Width
    5.7 in
  • Depth
    6.7 in
  • Height
    1.6 in
  • Weight
    1.98 lbs

BAY REQUIRED

  • Total Qty
    1
  • Type
    front accessible
  • Form Factor
    5.25" x 1/2H
  • Form Factor (metric)
    13.3 cm x 1/2H

SLOT REQUIRED

  • Type
    none

SYSTEM REQUIREMENTS DETAILS

  • Processor Type
    Pentium III
  • Processor Speed
    450 Hz
  • Min RAM Size
    128 MB
  • Min Hard Drive Space
    650 MB

GENERAL

  • Manufacturer
    Lite-On IT Corp.
