LevelOne FSW-0503 Network Switch Unmanaged 4-Port Fast Ethernet 4 FE PoE + 1FE

Sold out
$30.00
SKU FSW-0503_USED
LevelOne FSW-0503 Network Switch Unmanaged 4-Port Fast Ethernet 4 FE PoE + 1FE
Grade A condition. Ships with power supply.

Advanced PoE Solution

FSW-0503 is a 4 Fast Ethernet PoE +1 Fast Ethernet Switch. Per PoE port is powered up to 15.4W. The total PoE power budget is 61.6W. It is an ideal solution for extensive WLAN, IP surveillance system deployments especially when the legacy and PoE compliance devices co-exist in your network environment. The switch automatically detects IEEE 802.3af compliant device connected and provides power and data over a single cable to these devices.FSW-0503

FSW-0503 is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0503 in a 19" chassis (POC-6000) for a largescale rack-mount PoE Solution.

Stable and Reliable Network Environment

FSW-0503 enables users to deploy a stable and reliable high-speed LAN environment, with store-and-forward switching architecture, packet error filtering and non-blocking packet forwarding. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. This device supports N-way auto-negotiation protocol that automatically detects networking speed and duplex modes.

Easy to Use

For instant error detection, the switch is equipped with a full range of LEDs to help monitor and troubleshoot problems on the network.

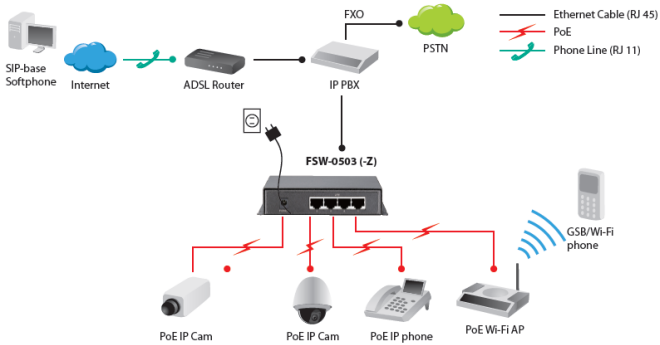

FSW-0503 diagram


Key Features

  • Complies with IEEE 802.3,802.3u and 802.3af
  • 5-Port 10/100Mbps Ethernet with 4-Port PoE Switch
  • Provide 5 10/100Mbps auto-detect with half/full duplex switch ports
  • Provides 4 PoE ports with classification identify
  • Supports 15.4W Maximum per PoE port
  • Supports up to 1K MAC address table
  • Provides 512 KB frame buffer

Package Contents

  • FSW-0503
  • Power Adapter


Model

Brand
LevelOne
Model
FSW-0503

Format & Standards

Format
External
Standards
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
Network Management Type
Unmanaged

Ports & Interface

Primary Ports
5 x RJ45
Primary Port Speed
10/100Mbps

Data Transmission

MAC Address Table
1K
Switching Method
Store and Forward

Details

Buffer Memory
48KB
Cabling
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP
LEDs
Power, Uplink, LAN 1~4 port, PoE 1~4 port
Power
100~240V DC / 50~60Hz 1.35A External Power Adapter

Features

Features
Interface:
4 x 10/100Mbps RJ-45 PoE Ports
1 x 10/100Mbps RJ-45 Uplink Port

Backplane: 1Gbps

Filtering/Forwarding Rates:
100Mbps port-148,000pps
10Mbps port-14,880pps

PoE Spec:
PoE Standard: IEEE 802.3af Power over Ethernet / PSE
PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 48V DC, Max. 15.4 watts (802.3af)
Power Budget: Max. 61.6w
Power Pin Assignment: 1/2(+), 3/6(-)

Dimensions & Weight

Dimensions
120 x 90 x 28mm
Weight
0.8kg

Environmental

Temperature
0ºC to 40ºC (32ºF to 104ºF)
Humidity
10% - 90%, Non-condensing

Group

Model
FSW-0503
