Kramer VM-1010 1:10 Daul Mode Video Distribution Amplifier 2x5 Composite Looping

by kramer
Sold out
$125.00
SKU VM-1010-used
Kramer VM-1010 2-Channel Programmable Composite Video Distribution Amplifier
The item has been tested and is in working condition. Grade B due to a minor bent on rack mount ear. Power cord included.

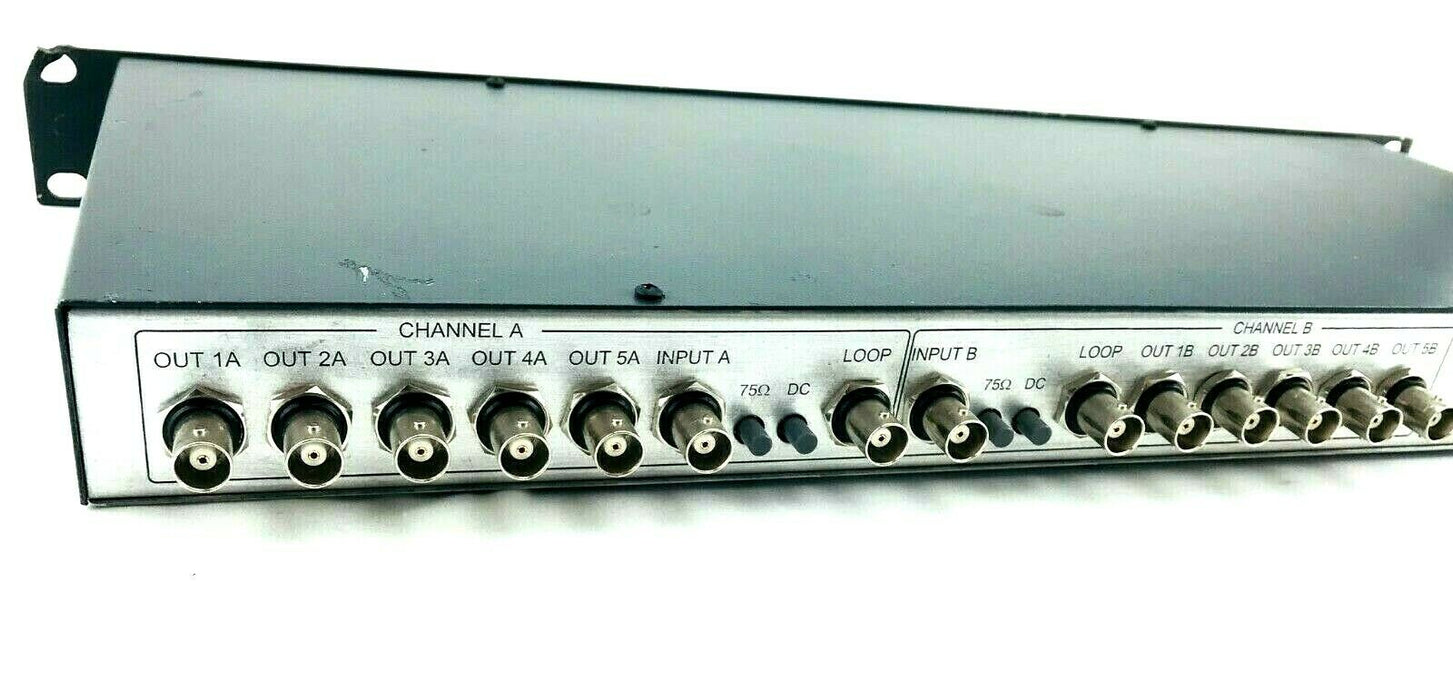

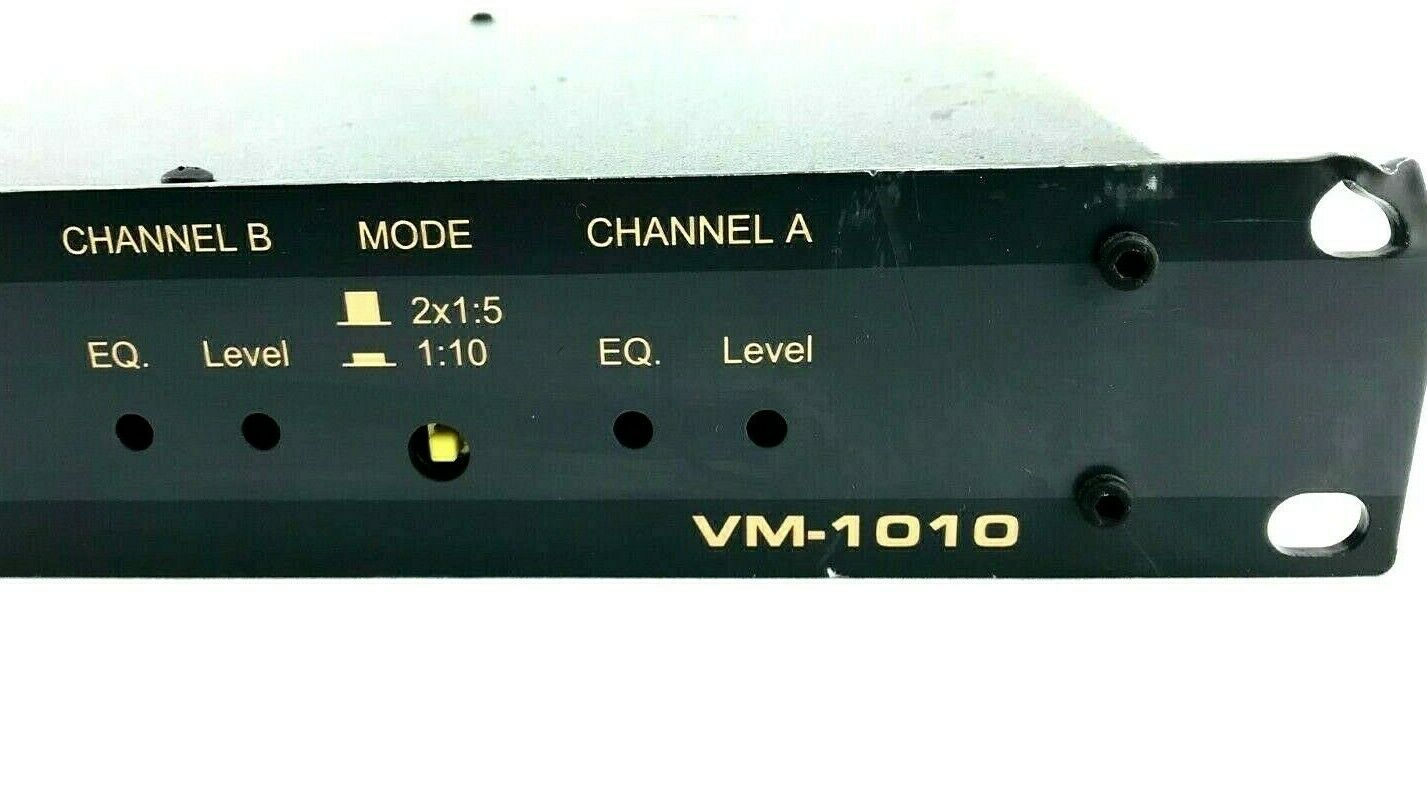

A looping video distribution amplifier, Incorporates state-of-the-art video amplifying circuitry to deliver undiminished quality video duplicates. Designed to split a pair of input sources into five outputs, it can also be programmed by user selectable front switches to work either as a 1x10 DA or two 1x5 DAs.

  • MAX. VIDEO OUTPUT: 1.8Vpp.
  • VIDEO BANDWIDTH (- 3DB): 235 MHz.
  • DIFF. GAIN: 0.2%.
  • DIFF. PHASE: 0.04°.
  • K-FACTOR: 0.05%.
  • VIDEO S/N RATIO: 77dB.
  • NON LINEARITY: 0.2%.
  • CONTROL: Level front trimmers: -1.4dB/+2.5dB,
  • EQ. trimmers: 0/+2.5dB @ 4.4MHz.
  • COUPLING: DC or AC (user selectable).
  • POWER SOURCE: 230VAC 50/60 Hz (115V U.S.A.), 10.3 VA.
  • DIMENSIONS: 19 inch (W), 7 inch (D), 1U (H) rack mountable.
  • WEIGHT: 1.98 kg (4.4 lbs) approx.
  • ACCESSORIES: Power cord.
