Kramer Electronics C-GM/GM Heavy Duty 3-50FT VGA Molded15-pin Male-Male Cable
Kramer Electronics C-GM/GM Heavy Duty 3-50FT VGA Molded15-pin Male-Male Cable

Kramer Electronics C-GM/GM Heavy Duty 3-50FT VGA Molded15-pin Male-Male Cable

by Kramer Electronics
Sold out
$35.00
SKU C-GM/GM-50

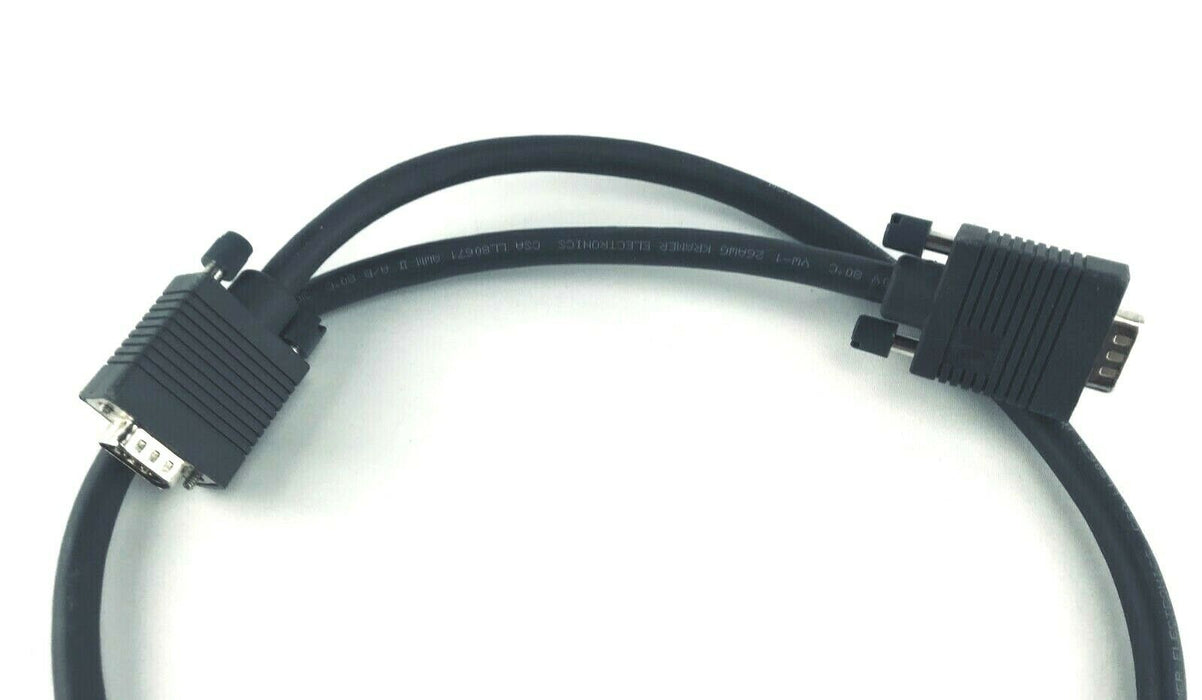

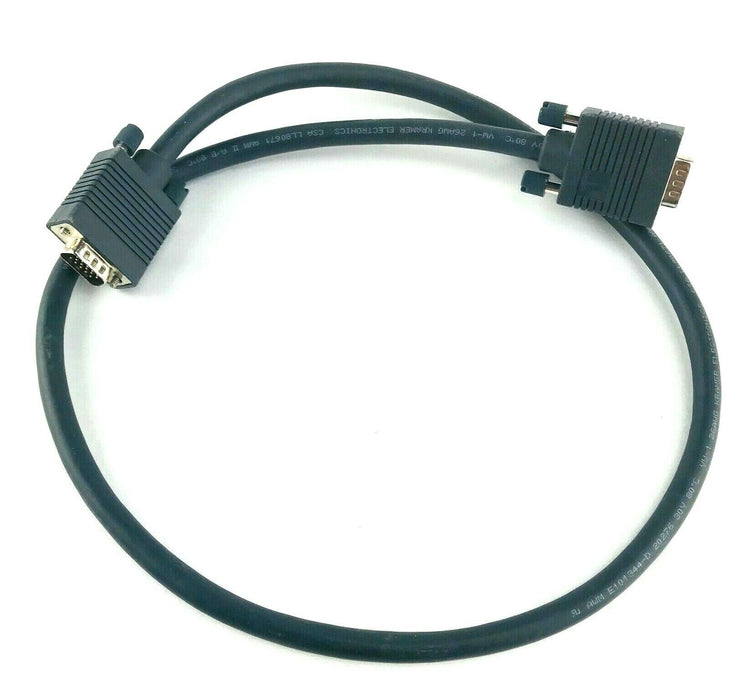

Kramer Electronics C-GM/GM Heavy Duty VGA Male-Male Cable Molded15-pin Using from Factory Cable Reel MPN: BC-3X2T7S

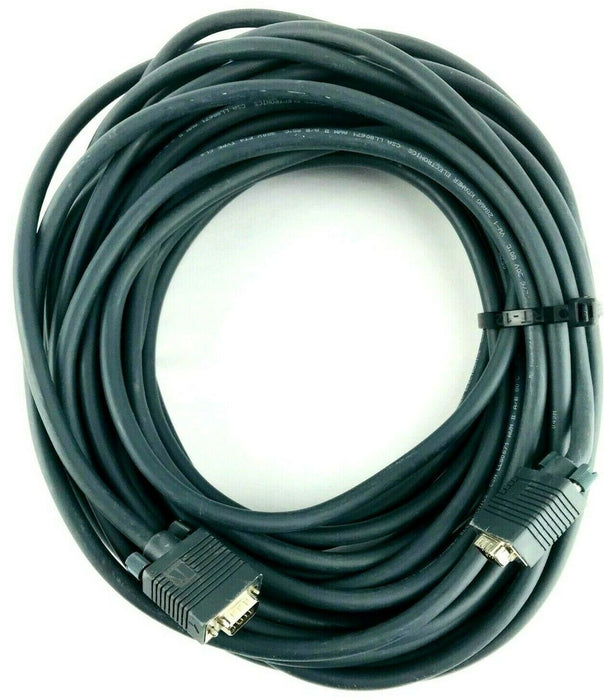

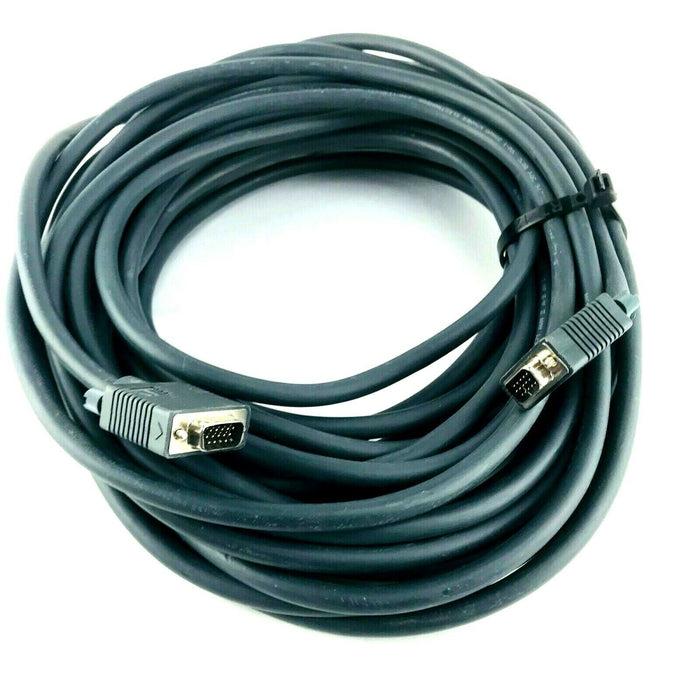

Available in 3/10/50 Foot Options

Great condition. GRADE Quality. No cuts, bent pins.

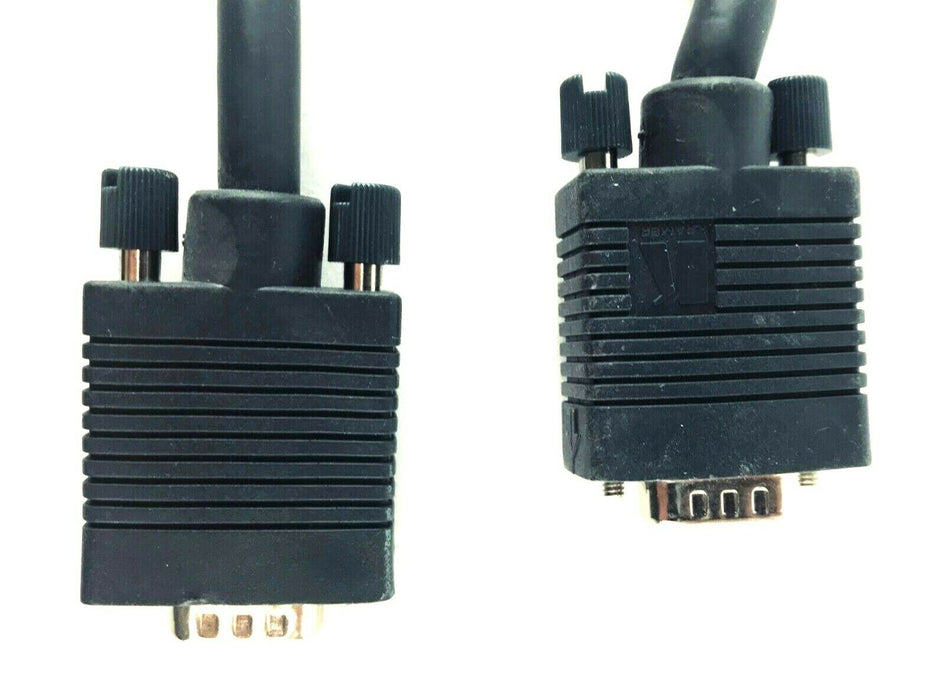

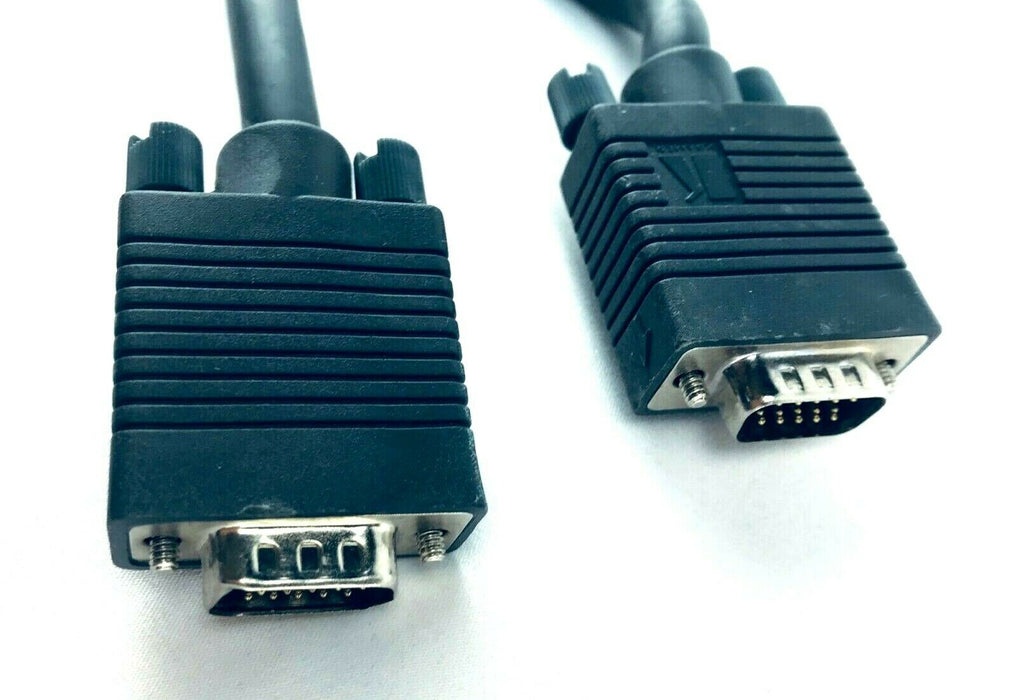

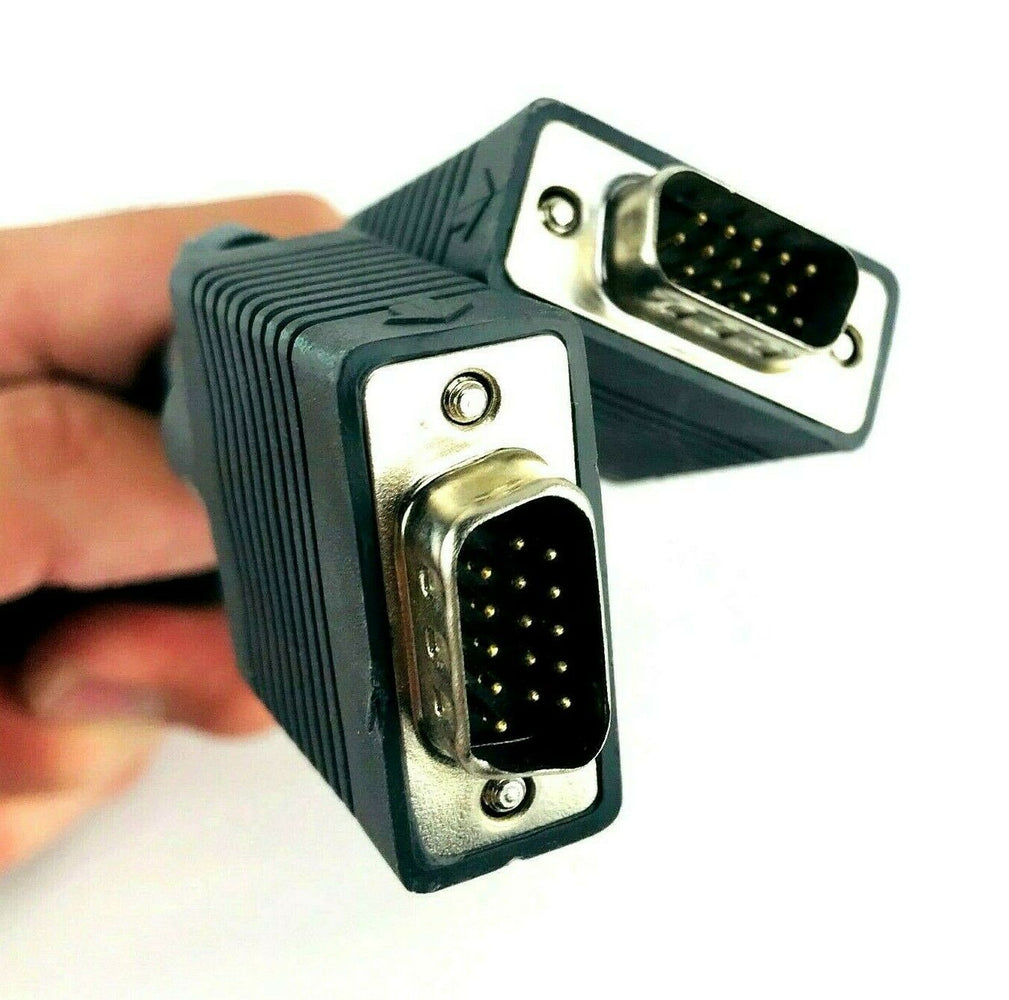

Kramer’s GM/GM and GM/GF computer graphics video cables are high performance cables with molded 15-pin HD connectors on both ends. They are used for connecting computer graphics video signals between computers or video scalers and plasma, LCD or other popular display technologies.

Kramer C-GM/GM Specifications:
  • Coax Specifications:
    • Conductor: 26 AWG 7/34 tinned copper
    • Dielectric: Foam polyethylene with red, green, blue color coding
    • Inner Jacket: PVC
    • Jacket Colors: Black
    • Shield:
    • (A) 90% spiral 38 AWG tinned copper
    • (B) aluminum-foil/mylar 25% overlap rate
  • Diameter:
    • Center Conductor: 0.019" (0.48mm)
    • Dielectric: 0.076" (1.95mm)
    • Individual Coax: 0.102" (2.6mm)
  • Electrical Specifications:
    • Attenuation (dB/100 ft.):
      • -0.5 dB @1MHz.
      • -1.3 dB @ 5 MHz.
      • -1.9 dB @ 10MHz.
      • -4.0 dB @ 50MHz.
      • -5.7 dB @100MHz.
      • -8.0 dB @ 180MHz.
      • -14.0 dB @ 400MHz.
    • Capacitance: 17.3pF per foot, 57pF per meter.
    • DC resistance: 45 ohms per 1000ft, 148 ohms per km.
    • Impedance: 75 ohms
    • Temperature: 68° to 167°F (20° to 75°C)
  • Regulatory Specifications:
    • CSA: C(UL) CL2.
    • UL: CL2.
