IFS VR1505WDM-R3 Pelco PTZ Coaxitron Fiber Rx Single Multi-Mode WDM bi-direction

by GE

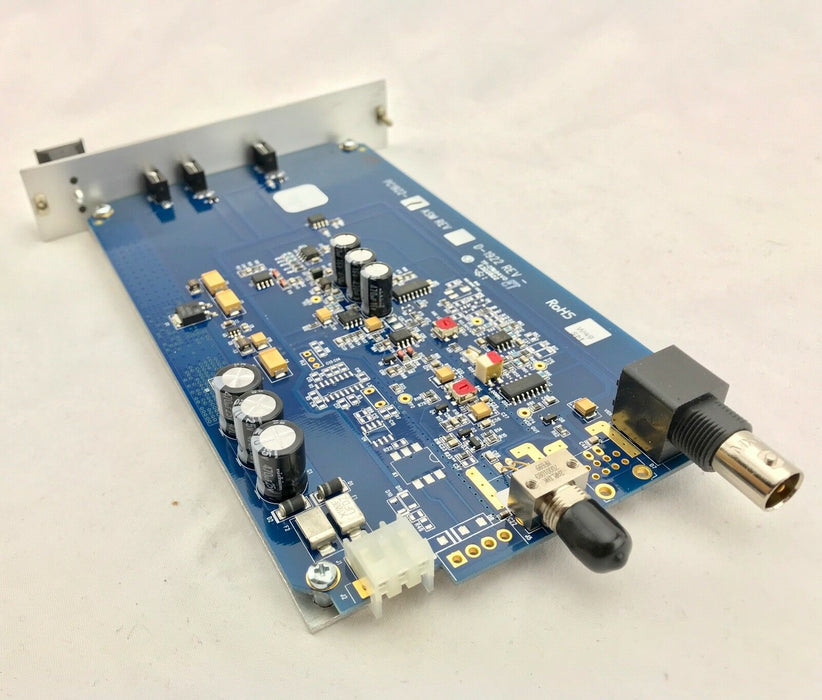

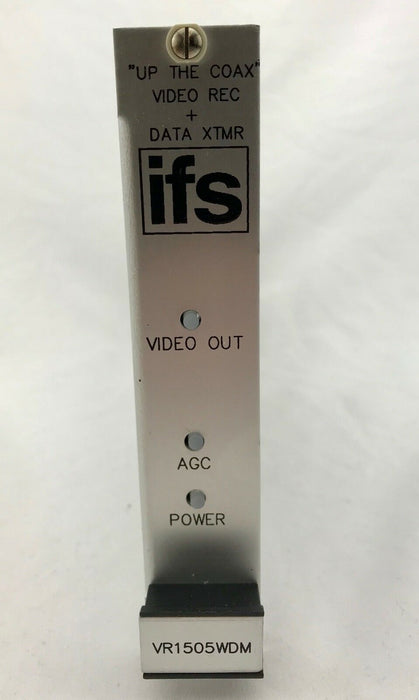

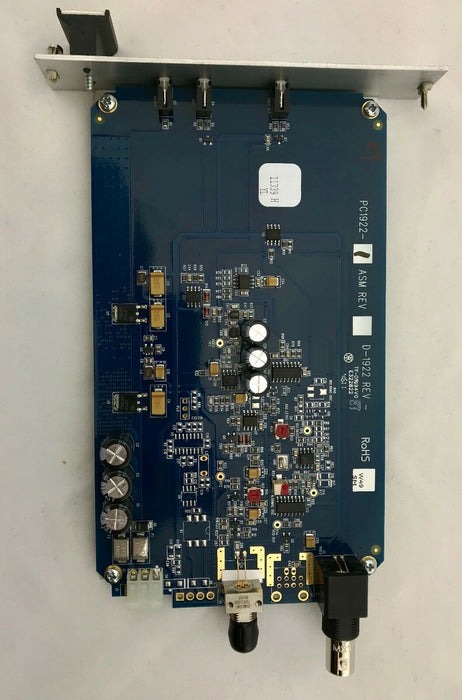

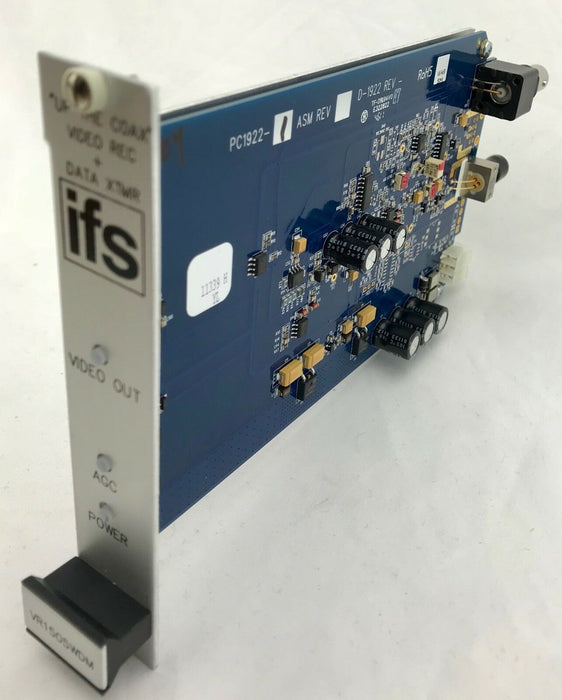

The VR1505WDM-R3 from GE Security is a Video Receiver / Data Transmitter, Up-the-Coax, MM, 1 Fiber, Rack Mount.

The series video and data transmission system is designed for full compatibility with UP-THE-COAX (Coaxitron) video/data systems from major manufactures such as Panasonic Proteus, Pelco Coaxitron, Robot, Vicon Vicoax, Videolarm CoaxLynx, Elbex, and others.

The module supports the simultaneous transmission of video and Up-The-Coax one-way data over one or two multimode optical fibers. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. The modules incorporate power and AGC status indicating LED’s to monitor proper system operation. The modules are available in either stand-alone or rack mount versions.

  • Transmission of Video and ‘Up-the-Coax’ One-Way Data
  • NTSC, PAL, SECAM Compatible
  • Full Color Compatibility
  • Full Range Automatic Gain Control (AGC)
  • No In-field Electrical or Optical Adjustments Required
  • Power and AGC Status Indicating LED’s to Monitor System Performance
  • Integrated WDM for Greater Product Reliability
  • Hot-Swappable Rack Modules
  • Automatic Resettable Fuses on all Power Lines
  • Available in FiberPakTM
  • Distances up to 1 mile (1.6 km) – Limited by the Manufacturer’s "Up-the-Coax" Specifications on Copper Wire.
