HP 1740 17 inch LCD Flat Color Monitor PL766A HSTND-2H02 NO STAND

by HP
$10.00
SKU 1740_USED

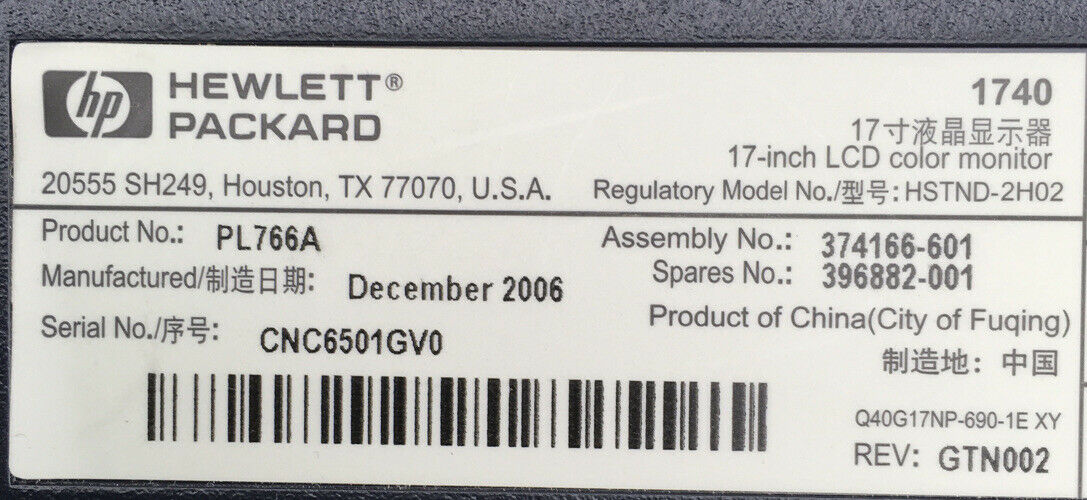

HP 1740 17 inch LCD Flat Color Monitor PL766A HSTND-2H02 NO STAND
Grade B physical condition. Some scuffs & scratches on screen and body. Tested & working. Ships with power and VGA cords. Stand is NOT included.

Product features

Feature
specification
Panel type
Active matrix TFT (thin film transistor); anti-glare/anti-static coatings
Cabinet colors
Carbonite black and silver (two-tone)
Viewable image area (diagonal)
43.2 cm (17 in)
Bezel width
17 mm left and right, 17 mm top, and 24 mm bottom
Resolutions supported
Native resolution
  • 1280 x1024 @ 60 Hz (analog)
  • 1280 x1024 @ 60 Hz (digital)
Maximum resolution
  • 1280 x1024 @ 75 Hz (analog)
  • 1280 x1024 @ 75 Hz (digital)
All VESA modes
  • Up to 1280 x1024 @ 60 Hz, 75 Hz
Video input
Plug and play
Yes - supports VESA DDC2B; PC2001 compliant

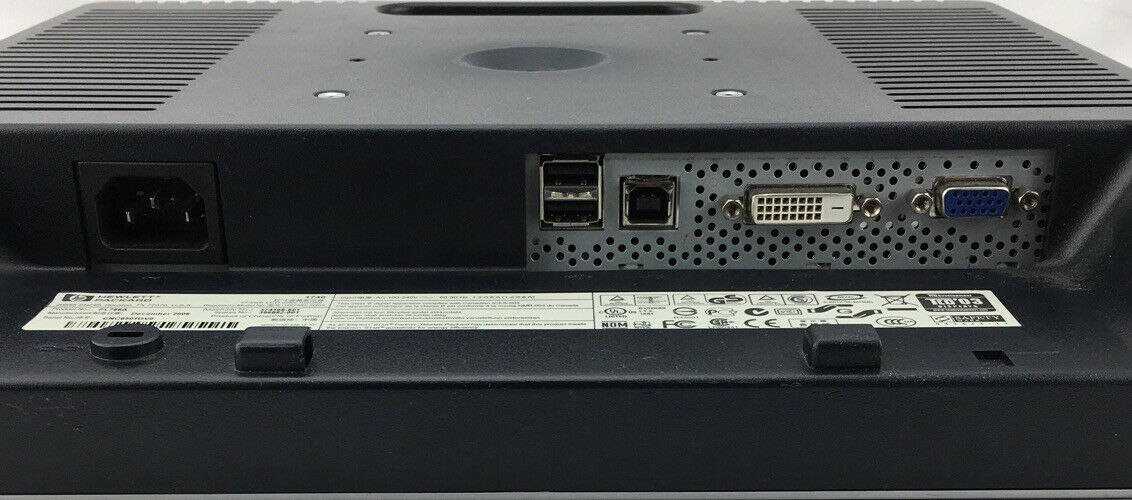

Input signals - two connectors
  • One 15-pin mini D-sub analog VGA
  • One DVI-D (VGA analog or digital)
Viewing angles (typical)
Up to 150o horizontal/135o vertical (10:1 minimum contrast ratio)
Brightness
Up to 300 nits (cd/m2)
Contrast ratio
Up to 500:1 (typical)
Response rate
< 13 ms (rise + fall)
Pixel pitch
0.264 mm
Frequency range
Horizontal frequency
  • 30 to 83 kHz
Vertical frequency
  • 56 to 76 Hz
Color depth support
16.7 million colors
USB 2.0 hub
Self-powered; two ports
Power consumption
Maximum
  • < 60 W
Typical
  • < 40 W
Power saving mode
  • < 2 W
Off mode
  • < 2 W
Temperature
Operating
  • 5o to 35o C (41o to 95o F) (non-condensing)
Non-operating
  • -20o to 60o F (-4o to 140o C)
Humidity
Operating
  • 20% to 80%
Non-operating
  • 5% to 90%
Accessories
VGA cable, AC power cord
Compatibility
VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven compatible for use with the HP L1940 Flat Panel Monitor. Recommended for use with HP products.
Kensington lock-ready
Yes

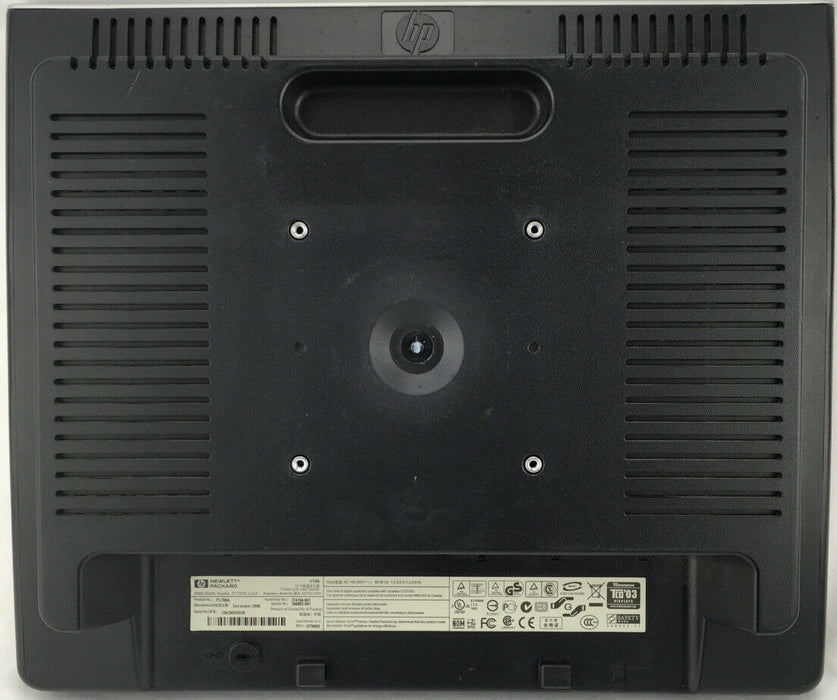

VESA external mounting
Yes (standard 4 hole pattern, 100 mm); base must first be removed
Approvals and certifications
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS Mark), ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval, MPR-II Compliant, PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO 99 or 03 depending on region (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Microsoft Windows Certification

Panel specifications

Panel
Type
Active matrix TFT (thin film transistor); anti-glare/anti-static coatings
Viewable image area (diagonal)
43.2 cm (17 in)
Screen opening (W x H)
34.0 x 27.2 cm (13.4 x 10.7 in)
Viewing angle (typical)
Up to 150o horizontal/135o vertical (10:1 minimum contrast ratio)
Brightness (typical)
Up to 300 nits (cd/m2)
Contrast ratio (typical)
Up to 500:1 (typical)
Response rate (typical)
< 13 ms (rise + fall)
Pixel pitch
0.264 mm
Color depth support
16.7 million colors

On-Screen display (OSD) controls

OSD controls
Buttons and switches
4-button OSD (auto-adjust, menu, minus, plus); power on/off; second level OSD buttons include dual-input switch
Languages
English, Spanish, French, German, Dutch, Italian, Simplified Chinese
User controls
Size and positioning, contrast, brightness, clock, clock phase, selectable color temperature, serial number, mode displayed, sleep timer, input selection, factory reset, individual color contrast, full-screen resolution

Signal interface/performance specifications

Signal interface/performance
Horizontal frequency
30 to 83 kHz
Vertical frequency
56 to 76 Hz
Native resolution
1280 x 1024 @ 60 Hz (digital and analog)
Maximum resolution
1280 x 1024 @ 75 Hz (digital and analog)
Preset VESA graphic (non-interlaced)
  • 640 x 480 @ 60 Hz, 72 Hz, 75 Hz
  • 720 x 400 @ 70 Hz
  • 800 x 600 @ 60 Hz, 72 Hz, 75 Hz
  • 1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
  • 1280 x 1024 @ 60 Hz, 75 Hz
Preset MAC mode
  • 832 x 624 @ 75 Hz
  • 1152 x 870 @75 Hz
Preset SUN mode
1152 x 900 @ 76 Hz
Fail safe mode
Yes (limits out of range signal messages)
Maximum pixel clock speed
140 MHz
User programmable modes
Yes, 15
Anti-glare
Yes
Anti-static
Yes
Asset control
Yes (accessible on HP Compaq Business Desktops featuring Intelligent Manageability)
Default color temperature
6500o Kelvin

Video input specifications

Video input
Plug and play
Yes (supports VESA DDC2B; PC2001 compliant)
USB 2.0 hub
Self-powered; two ports (cable included)
Input signal
Two connectors
  • One 15-pin mini D-sub analog VGA
  • One DVI-D (digital)
Input impedance
75 ohms + and - 2%
Sync input
Separate sync (HSYNC/VSYNC)
Video cable
15-pin D-sub mini connector; detached
Video cable length
1.8 m (70.9 in); detached

Factory preset display modes

Preset
Pixel Format
Horizontal Freq (KHz)
Horizontal Polarity
Vertical Freq (Hz)
Vertical Polarity
Pixel Clock (MHz)
Source
1
640 x 480
31.469
-
59.940
-
25.175
VGA
2
640 x 480
37.861
-
72.809
-
31.500
VESA
3
640 x 480
37.500
-
75.000
-
31.500
VESA
4
720 x 400
31.469
-
70.087
-
28.322
VGA
5
800 x 600
31.469
+
60.317
+
40.000
VESA
6
800 x 600
48.077
+
72.188
+
50.000
VESA
7
800 x 600
46.875
+
75.000
+
49.500
VESA
8
832 x 624
49.726
+ and -
74.551
+ and -
57.284
Mac
9
1024 x 768
48.363
-
60.004
-
65.000
VESA
10
1024 x 768
56.476
-
70.069
-
75.000
VESA
11
1024 x 768
60.023
+
75.029
+
78.750
VESA
12
1152 x 870
68.68
-
75.06
-
10.000
Mac
13
1152 x 900
71.71
-
76.05
-
105.561
Sun
14
1280 x 1024
63.98
+
60.02
+
108.000
VESA
15
1280 x 1024
79.97
+
75.02
+
135.000
VESA

Electrical specifications

Power
Internal power supply
Auto-ranging, 90 to 265 VAC
Input voltage
100 to 240 VAC
Nominal current
1.5 A maximum
Frequency
50 to 60 Hz
Average
33 W when displaying standard office software
Typical power consumption
< 40 W
Maximum power consumption
< 60 W
Power saving
< 2 W
Off mode
2 W (when master power switch is in the off position)

Software overview

HP Display LiteSaver
HP Display LiteSaver feature allows you to schedule Sleep mode at preset times to help protect the monitor against image retention, drastically lower power consumption and energy costs, and extend the lifespan of the monitor.

Environmental specifications

Environmental specifications
Temperature
Operating
  • 5o to 35o C (41o to 95o F) (non-condensing)
Non-operating
  • -20o to 60o F (-4o to 140o C)
Humidity
Operating
  • 20 to 80%
Non-operating
  • 5 to 90%
Altitude
Operating
  • 0 to 3,658 m (0 to 12,000 ft)
Non-operating
  • 0 to 12,192 m (0 to 40,000 ft)
