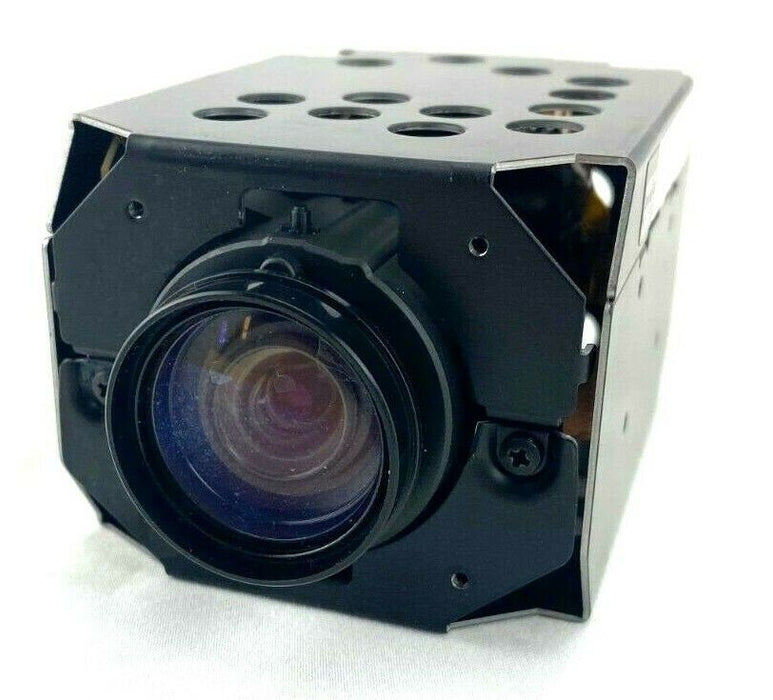

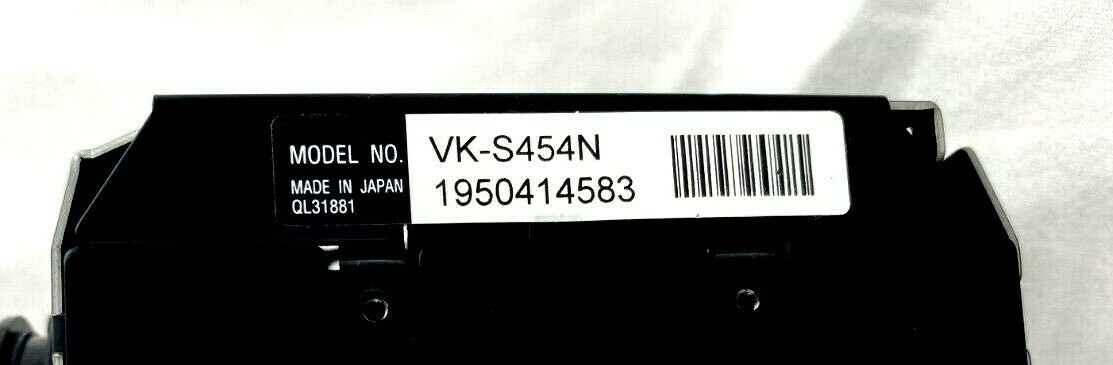

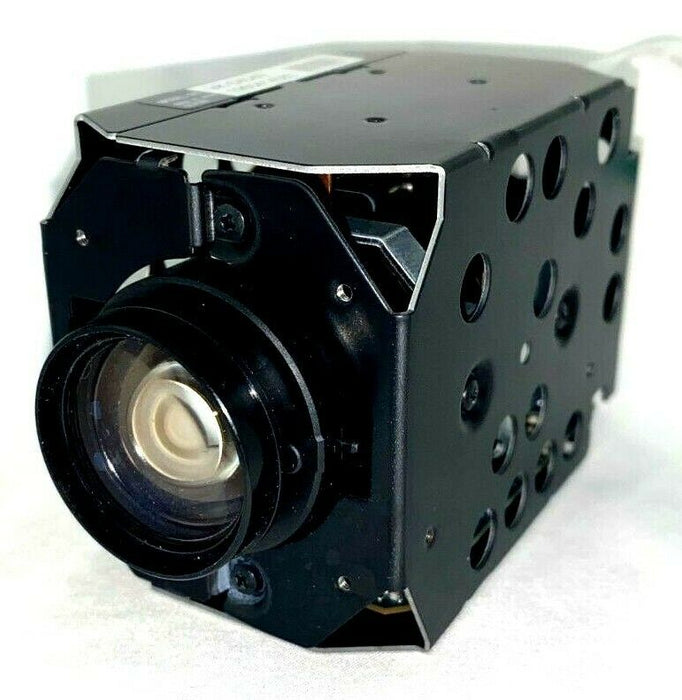

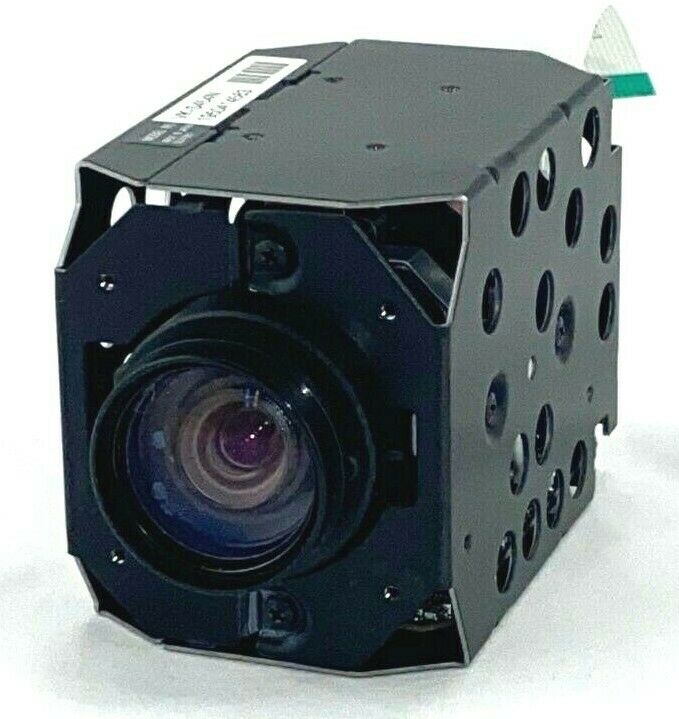

HITACHI VK-S454N 23x Optical Zoom Camera Module CCD For Pelco Spectra 1/4" NTSC

by HITACHI
$65.00
SKU VK-S454N_USED
HITACHI VK-S454N SD Block Camera Progressive Scan CCD Wide D 1/4 23x Optical
Grade A condition. Tested and confirmed. Fully functional.

The Hitachi VK-S454N is a RoHS-Compliant compact chassis-type camera designed for surveillance of various sites under a wide range of light conditions. Even high-contrast scenes can be captured without glare or loss of detail thanks to the Wide Dynamic Range design. The Digital Slow Shutter and Removable IR Cut Filter function make the camera particularly suitable for monitoring sites at nighttime or dark locations.

  • Hitachi DSP 8 camera control
  • 23X Optical Zoom
  • F1.6 Lens and practical f value 3.6-82.8mm
  • IR cut filter removed for Day/Night capability
  • 1.0 lux typical sensitivity, 50 IRE, 0.01 lux IR Cut Filter Off
  • Composite Video Output, YUV422 8 bit digital output
  • 1/4" Progressive Scan Ex-View Color CCD, NTSC
  • output 540 TV Lines of Resolution Motion Detection
  • Frame Noise Reduction
  • Wide Dynamic Range
  • S/N 50dB or more
  • Privacy Masking 2 Zone 2-D, 8 Zone 3-D
  • Operating Temperature 0-60 degrees C
  • Serial Control via TTL
