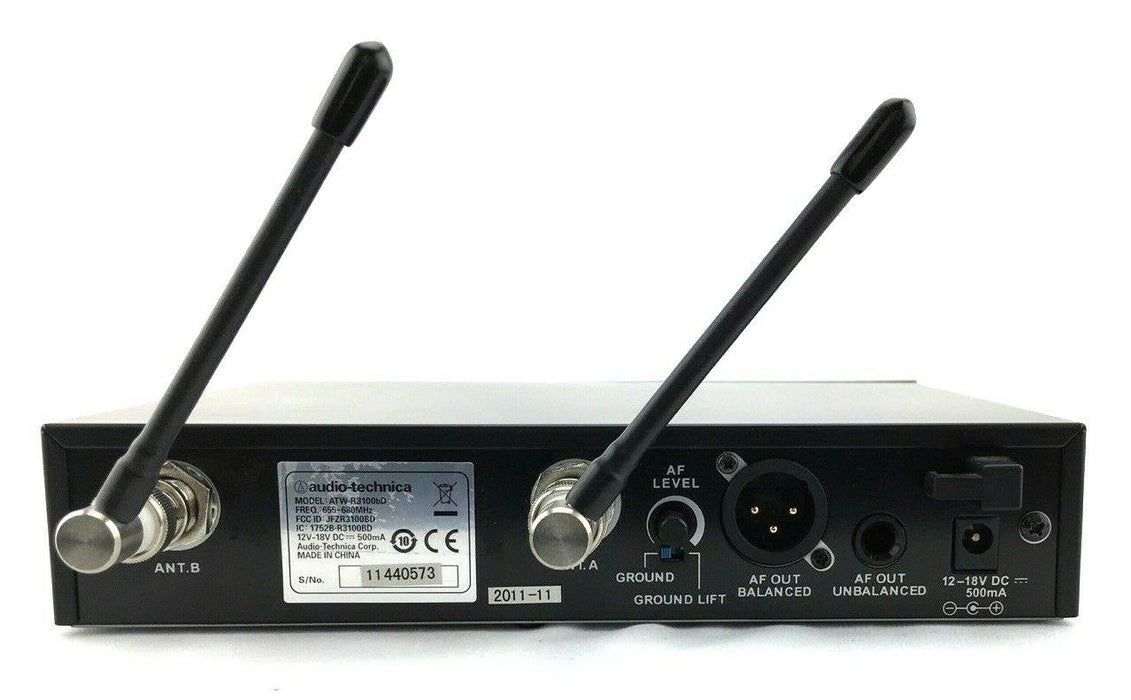

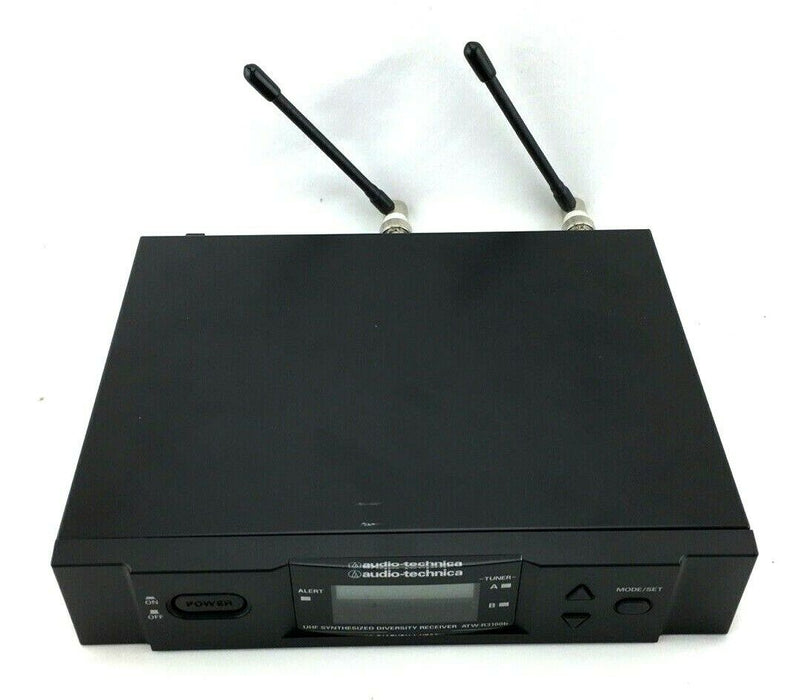

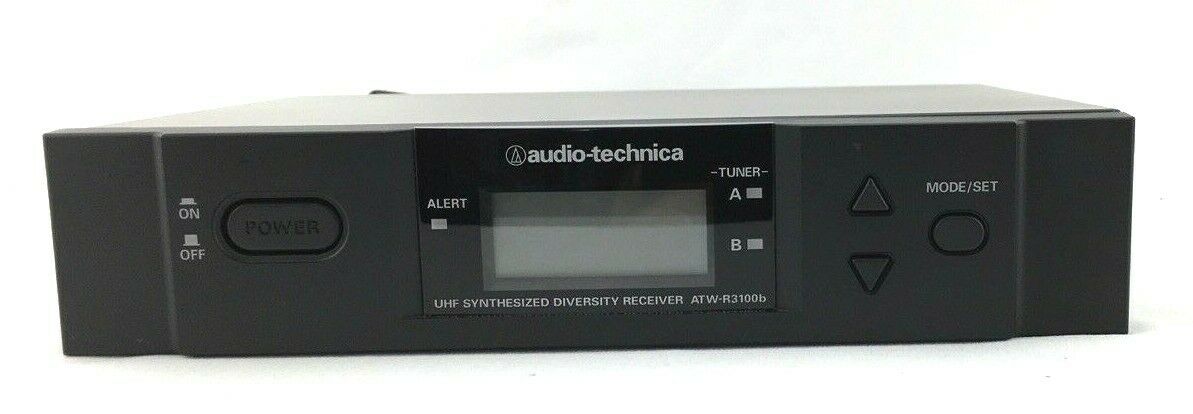

GENUINE AUDIO TECHNICA ATW-R3100D ,ATW-T310 wireless system.655-680MHz.
Sold out
$48.00
SKU ATW-R3100D_USED
GENUINE AUDIO TECHNICA ATW-R3100D ,ATW-T310 wireless system.655-680MHz.
Grade A Condition. Fully functional.
ATW-R3100 Receiver Specifications:
- Receiving System: Dual independent receivers, automatic-switching diversity
- Image Rejection: 60dB nominal, 55dB minimum
- Signal-to-Noise Ratio: 110dB at 35kHz deviation (IEC-weighted), maximum modulation 75kHz
-
Total Harmonic Distortion: <=1% (10kHz deviation at 1kHz)Sensitivity: 24 dBuV (S/N 60dB at 5kHz deviation, IEC-weighted)
- Intermediate Frequency: 243.950 MHz, 10.7 MHz
- Audio Output: Unbalanced: 50 mV (at 1kHz, +/-5kHz deviation, 10k ohm load); Balanced: 32 mV (at 1kHz, +/-5kHz deviation, 10k ohm load)
- Output Connectors: Unbalanced: 1/4" TS ("mono") phone jack; Balanced: XLRM-type
- Power Supply: 120V AC 60 Hz, or 12-18V DC, 500 mA, center positive, with external supply
- Dimensions (W x H x D): 8.27" x 1.93" x 7.20"
- Weight: 2.4 lbs
- Accessories Included: AC adapter; two flexible UHF antennas; rack-mountadapters
