GE Security Interlogix SafeAir 250-CO Carbon Monoxide Detector 046188112883

by GE
$22.00
SKU 250-CO_USED

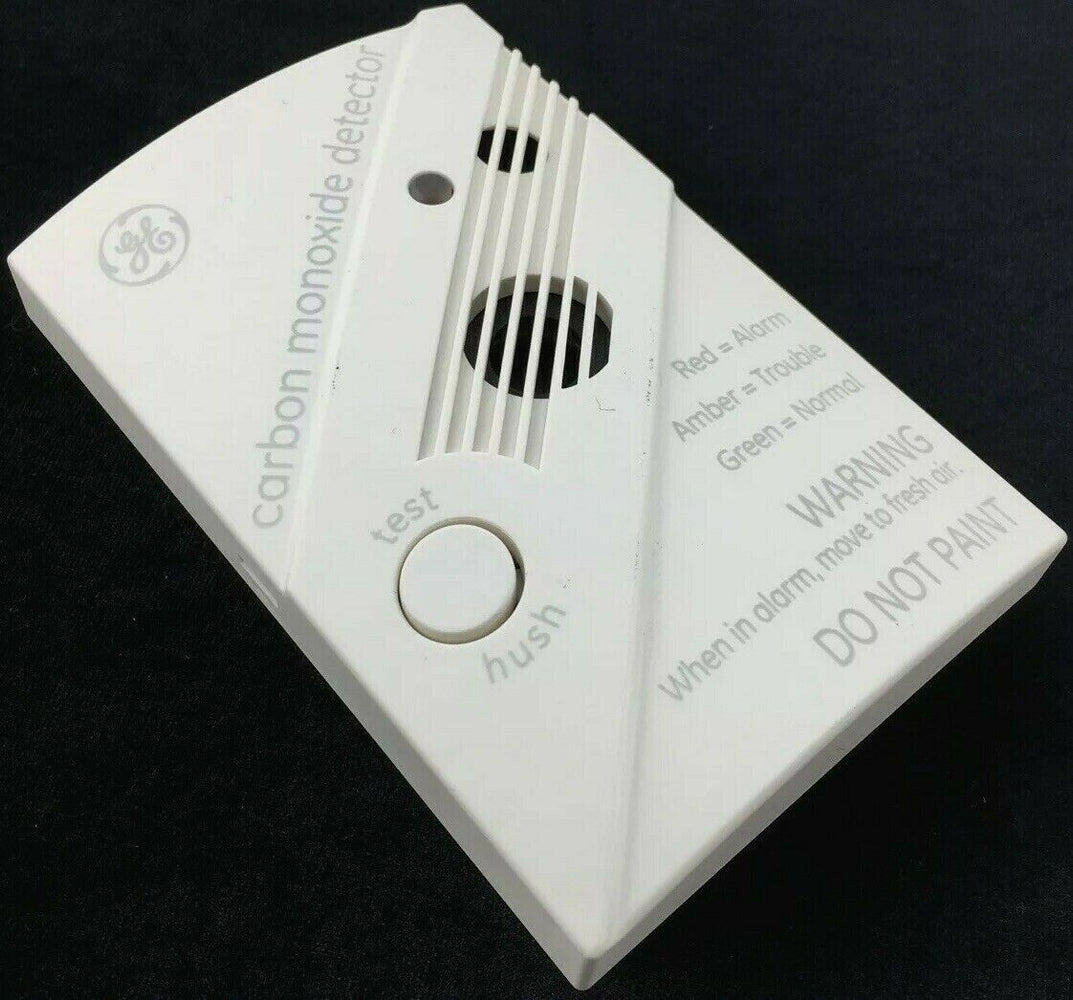

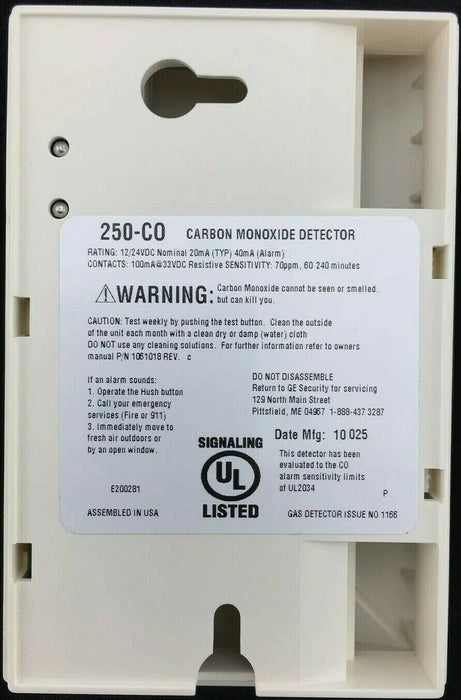

GE Security Interlogix SafeAir 250-CO Carbon Monoxide Detector 046188112883
Grade A physical condition. Comes as pictured.


GE Security's 250-CO is a Carbon Monoxide Detector designed to meet the performance standards of both residential and commercial locations.

Using commercial-grade electrochemical sensing technology, the GE 250CO protects your family or employees from dangerous carbon monoxide gas. Self-diagnostics ensure that the 250CO continues operating at optimal capacity over the course of its six year life. The end-of-life sensor transmits signals to the control panel and (optionally) the central station, notifying all necessary parties when the carbon monoxide detector requires servicing.

GE Security's 250-CO provides a wealth of features, including trouble relays, a sounder and 12/24VDC operation. The 250-CO sensor is built to withstand normal indoor temperature fluctuations as well.


Technical Specifications:

Input voltage: 12 or 24 VDC supplied by control panel or resettable auxiliary power supply

Current consumption:
-Normal - 20 mA
- Alarm - 40 mA (75 mA in test)
- Alarm relay - 150 mA at 12 or 24 VDC
- Type - Form C
- UL rating - Zone

Common trouble relay:
- 150 mA at 12 or 24 VDC
- Type - Normally open, held closed with power applied
- UL rating - common

CO alarm level: 70 ppm / 60 to 240 minutes

Sounder: 85 dB

Compatible control panel: Listed to UL 985 or 864 standard

Compatible electrical box: North American 2 1/2 in. (64 mm) deep 1-gang

Wire size: 14 to 22 AWG (0.25 to 2.0 mm2)

Dimensions:
- Detector - 3.1 x 4.6 x 1.3 in. (7.8 x 11.7 x 3.2 cm)
- Adapter plate - 4.5 x 6.5 x 0.2 in. (11.4 x 16.5 x 0.5 cm)

Weight:
- Detector - 4.7 oz. (133 g)
- Adapter plate - 1.6 oz (46 g)
