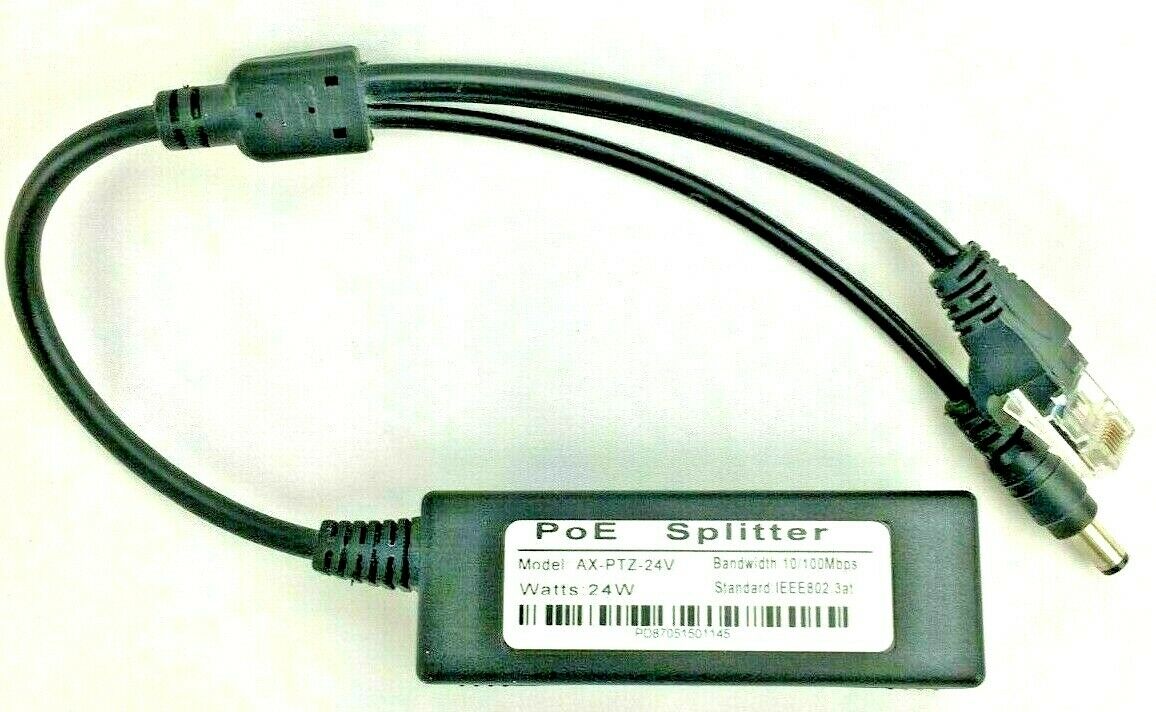

Ethernet Splitter PoE 802.3at 48V 24W Powered w/ Step-Down 24V DC Output Barrel

by Syncom
$14.35
SKU ONV-PD3202
New 24V ONV-PD3202-at PoE Splitter Cable 24W

OVERVIEW

Cost-effective and high reliable remote PoE PD device based on standard IEEE802.3af/at,  splits the power and data transmitted through cable. It provides power and data to device without PoE function when connecting with a PoE Switch or PSE Injector. The output voltage is 24V, and equipped with PoE power supply device, it can flexibly expand the scale of Security Surveillance, Access Control Door Hardware & Wireless Network without the limitation of power line layout.

With transformer isolated design for circuit input stage and output stage of the power, it strengthens anti-jamming capability and protection for circuit. Also it effectively reduces PoE Switch Abnormal Power Supply Matters caused by common ground problem. Compatible with power supply methods of both End-span(1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 24W, low ripple, more than 82% high efficiency, Port Isolation Protection: 1500V and Protection for short circuit, over-current & over-temperature. With 1 to 2 design, it could be working with device that support external PoE, and it also simplifies effectively the project wiring and maintenance.

FEATURES

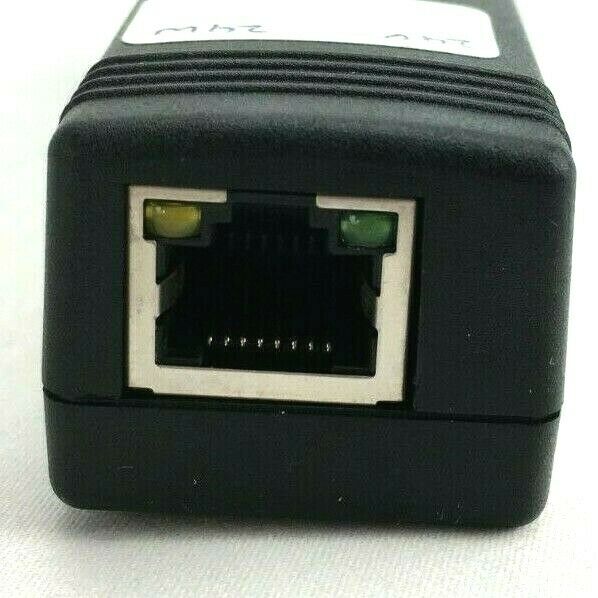

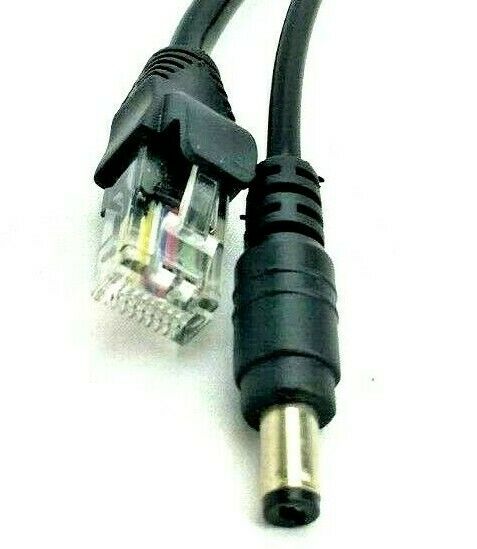

  • 1x 10/100Mbps RJ45 port+ 1*10/100M male output port+1*(5.5*2.1mm) DC output port
  • Support IEEE 802.3at Ethernet power standard
  • 10/100M data transmission
  • Output voltage: 24V
  • Circuit protection to protect the connected device
  • Top-quality design, stable and reliable
