Efector OG0015 Fiber Optic Amplifier OGF-HBOA/90-250V Photoelectric Sensor NIB

by Efector
SKU OG0015
Efector OG0015 OGF-HBOA/90-250V Photoelectric Sensor Fiber Optic Amplifier

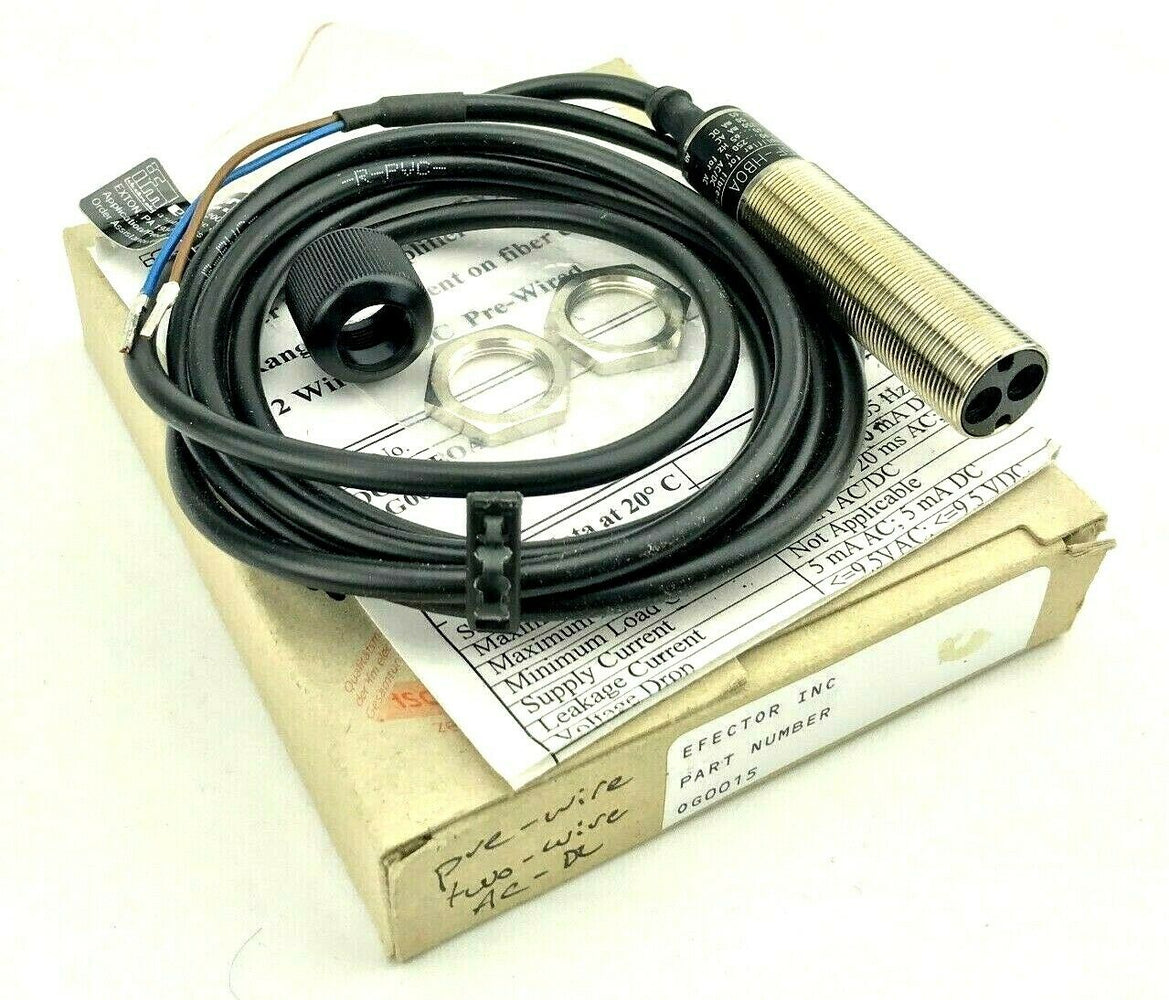

New, never used, box has some writing, may or may not include instructions

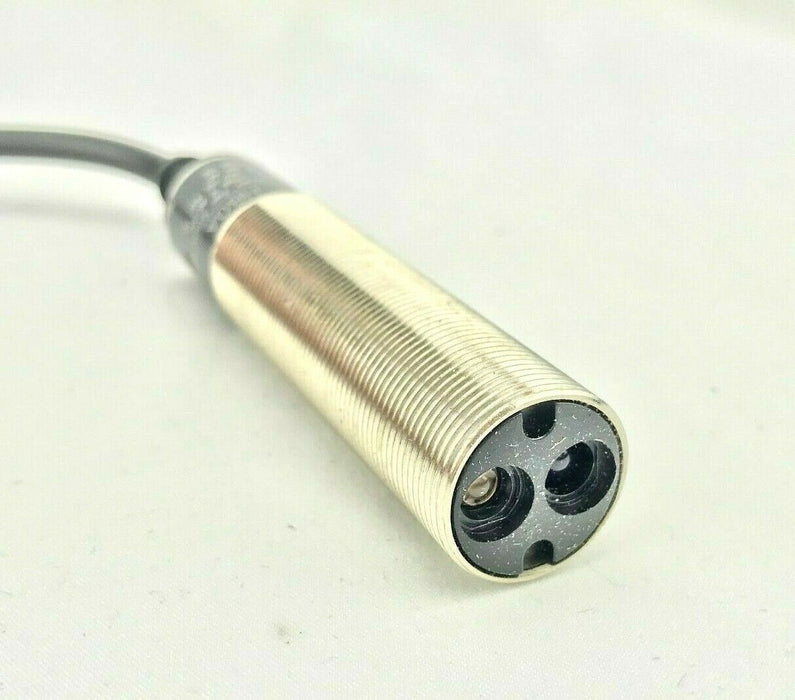

Fiber-optic amplifier, Threaded type, M18 x 1, AC/DC, Cable
Operating voltage: 90...250 V AC/DC (47...63 Hz V AC)
Electrical design: AC/DC
Output function: light-on mode
Sensing range: 0...0.08 (Through-beam sensor) m
Range: 0...15 (Diffuse reflection sensor) mm
Current rating (continuous): 200 AC / 50 DC; 250 AC (...50 °C) mA
Length: 88 mm
Switching frequency: 25 AC / 70 DC Hz
Type of light: Infrared light 880 nm

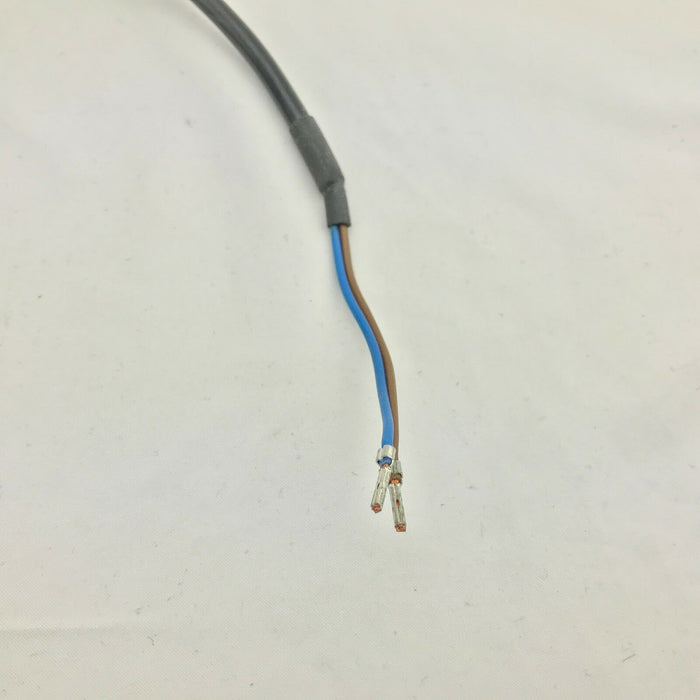

Connection: PVC cable / 2 m; 2 x 0.5 mm²
Housing materials: brass nickel-plated
Ambient temperature: -25...80 °C
Protection: IP 65
Output status indication: LED yellow
Brand: ifm electronic gmbh or equivalent
Type: OG0015
