Efector KG0005 KG-2008-ABOA Barnum E1009010 Capacitive sensors Quick Disconnect

by Efector
Sold out
$19.00
SKU E1009010

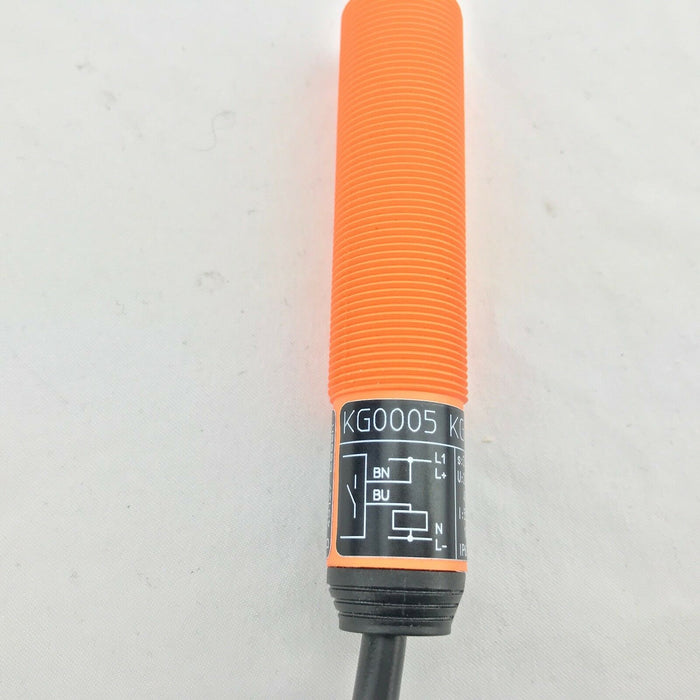

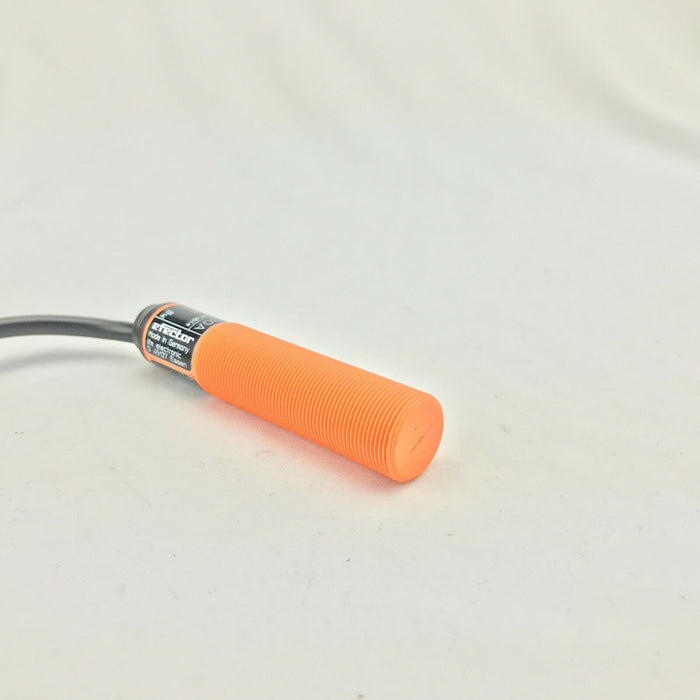

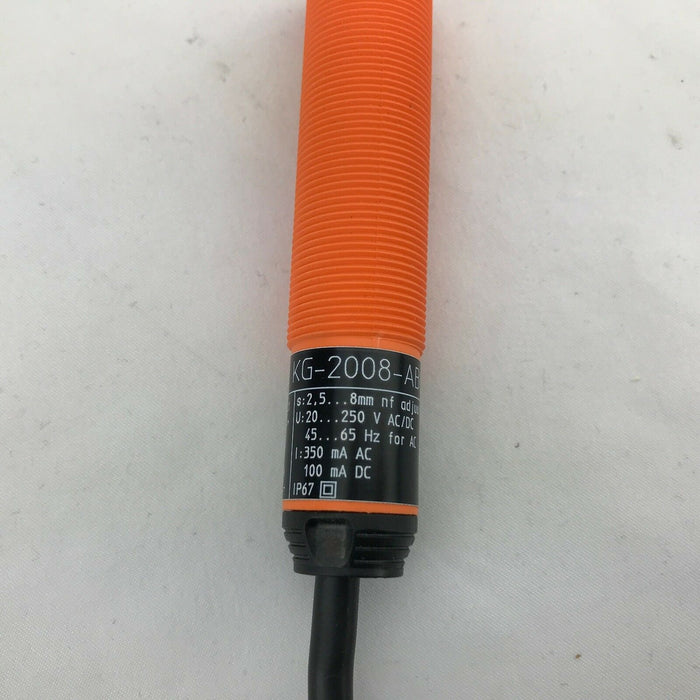

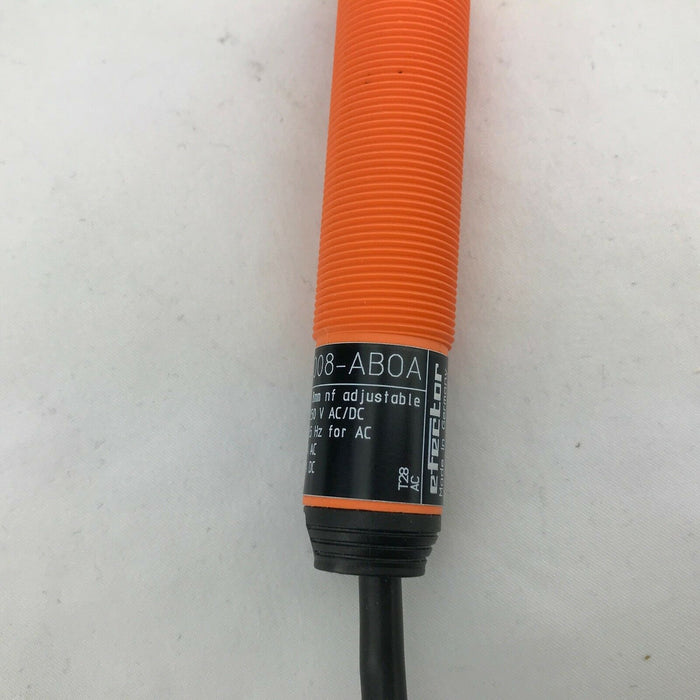

Efector KG0005 KG-2008-ABOA  Barnum E1009010 Capacitive sensors Quick Disconnect

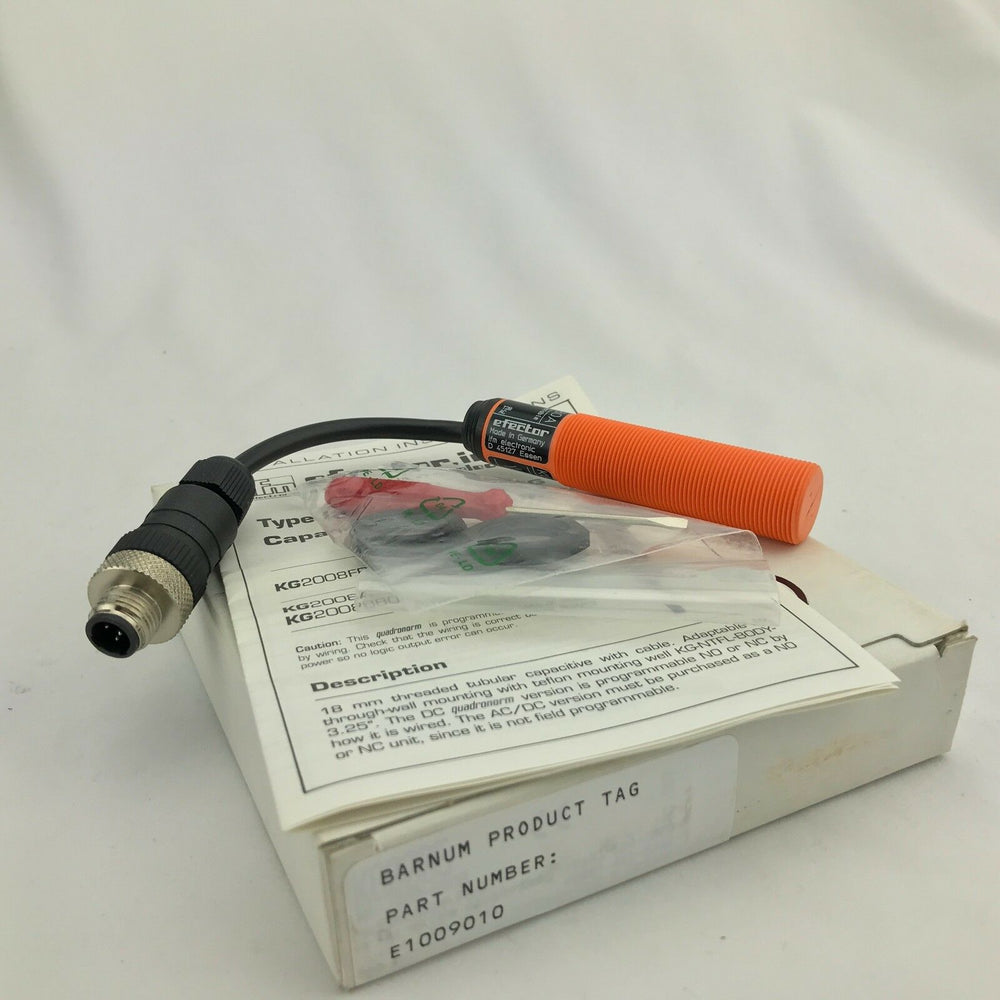

New, never used, box has some writing, may or may not include instructions

Capacitive sensor, Plastic thread, M18 x 1, AC/DC, Cable, Sensing range 8 mm [nf]

Operating voltage:                             20...250 V AC/DC

Electrical design:                               AC/DC

Output function:                                 normally open

Current rating (continuous):                250 AC / 100 DC; 350 AC (...50 °C) mA

Current rating (peak):                         î: 2.1 A (20 ms / 1 Hz) mA

Length:                                              85 mm

Mounting:                                          non-flush mountable

Sensing range:                                   8 mm

Switching frequency:                          25 AC / 50 DC Hz

Connection:                                       PVC cable / 2 m; 2 x 0.5 mm²

Housing materials:                             PBT

Ambient temperature:                         -25...80 °C

Protection:                                         IP 67

Output status indication:                     LED red

Brand:                                               ifm electronic gmbh or equivalent

Type:                                                 KG0005
