Efector IF0007 IFA2004-ABOW Inductive Sensor In Box

by Efector
Sold out
$95.00
SKU IF0007

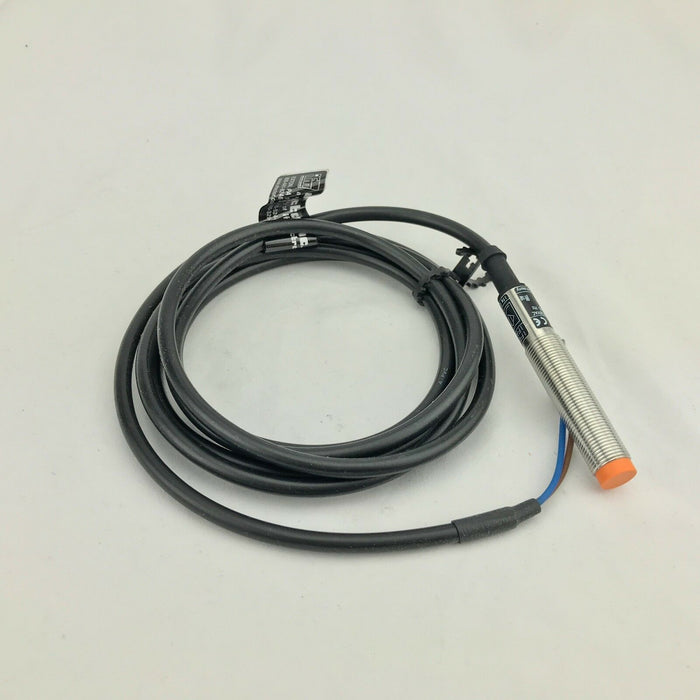

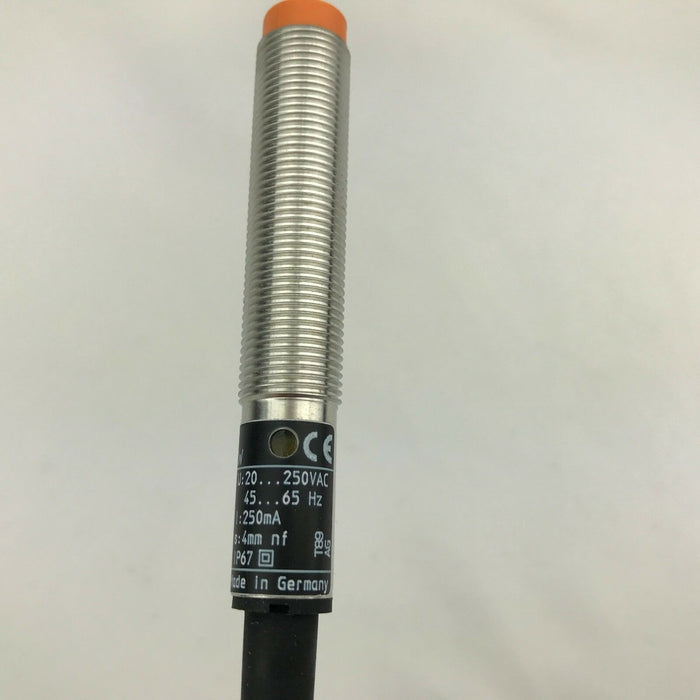

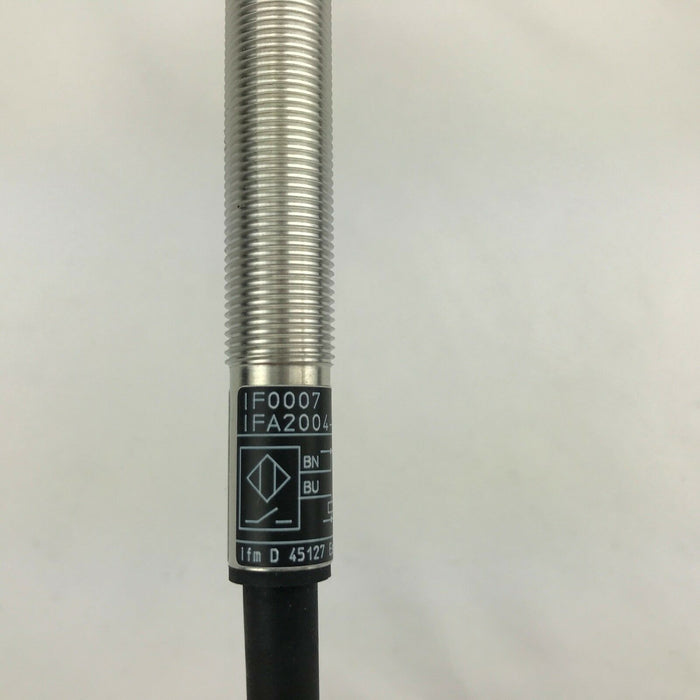

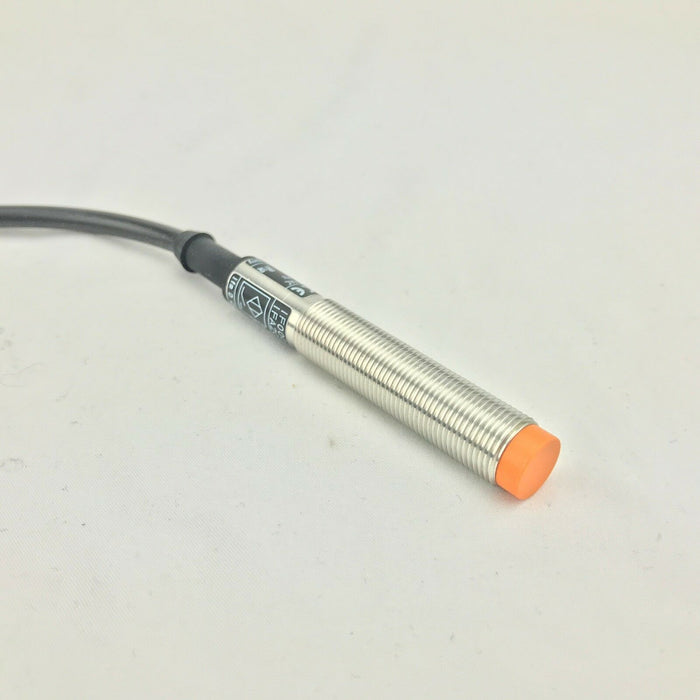

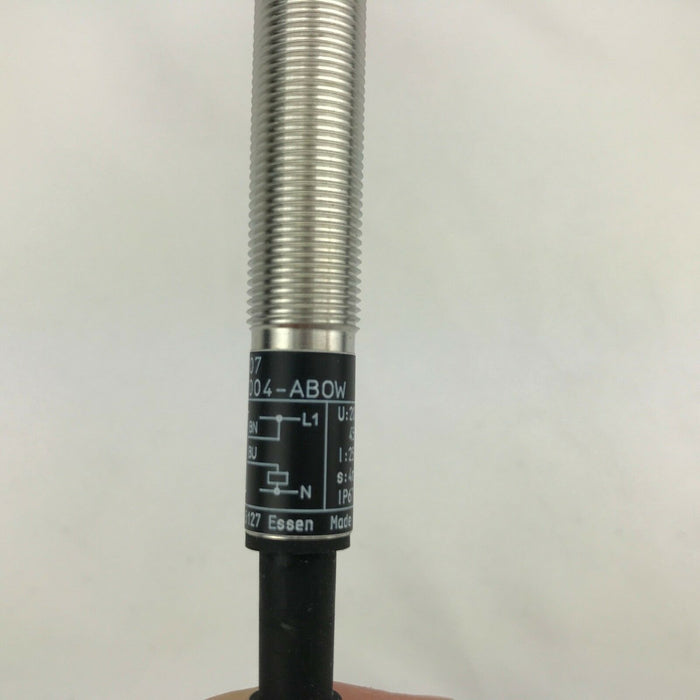

Efector IF0007 IFA2004-ABOW Inductive Sensor

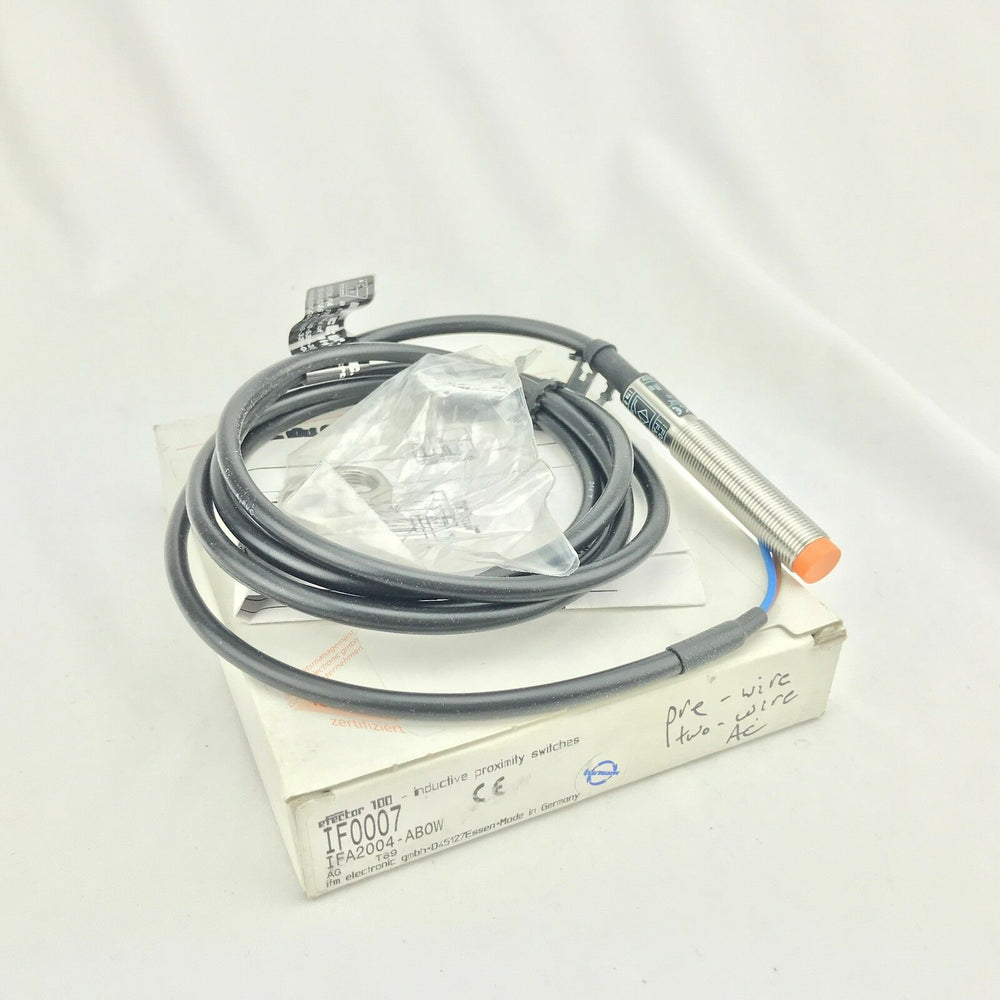

New, never used, box has some writing, may or may not include instructions

Inductive sensor, Metal thread, M12 x 1, AC, Cable, Sensing range 4 mm [nf]

Operating voltage:                             20...250 V AC (47...63 Hz)

Electrical design:                               AC

Output function:                                 normally open

Current rating (continuous):                200; 250 (...50 °C) mA

Current rating (peak):                         î: 0.9 A (20 ms / 0.5 Hz) mA

Length:                                              71 mm

Mounting:                                          non-flush mountable

Sensing range:                                   4 mm

Switching frequency:                          25 Hz

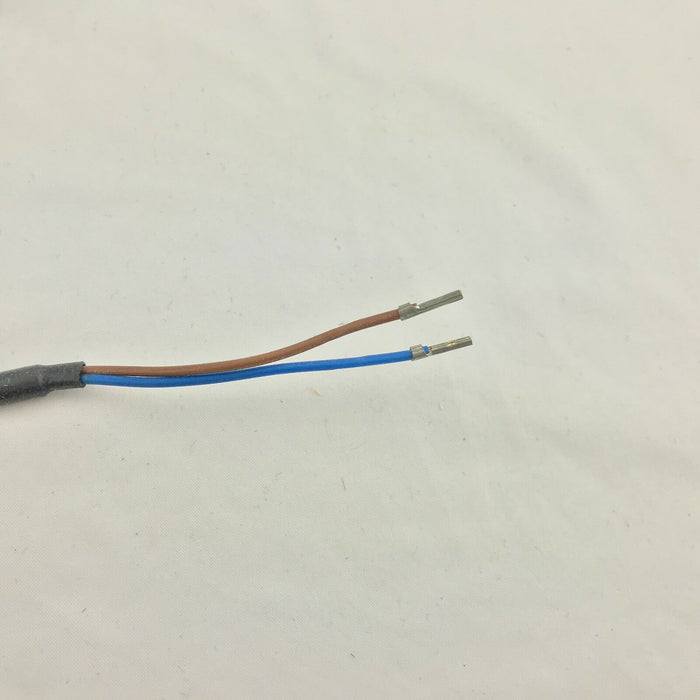

Connection:                                       PVC cable / 2 m; 2 x 0.5 mm²

Housing materials:                             brass white bronze coated; active face: PBT

Ambient temperature:                         -25...80 °C

Protection:                                         IP 67

Output status indication:                     LED yellow

Brand:                                               ifm electronic gmbh or equivalent

Type:                                                 IF0007
