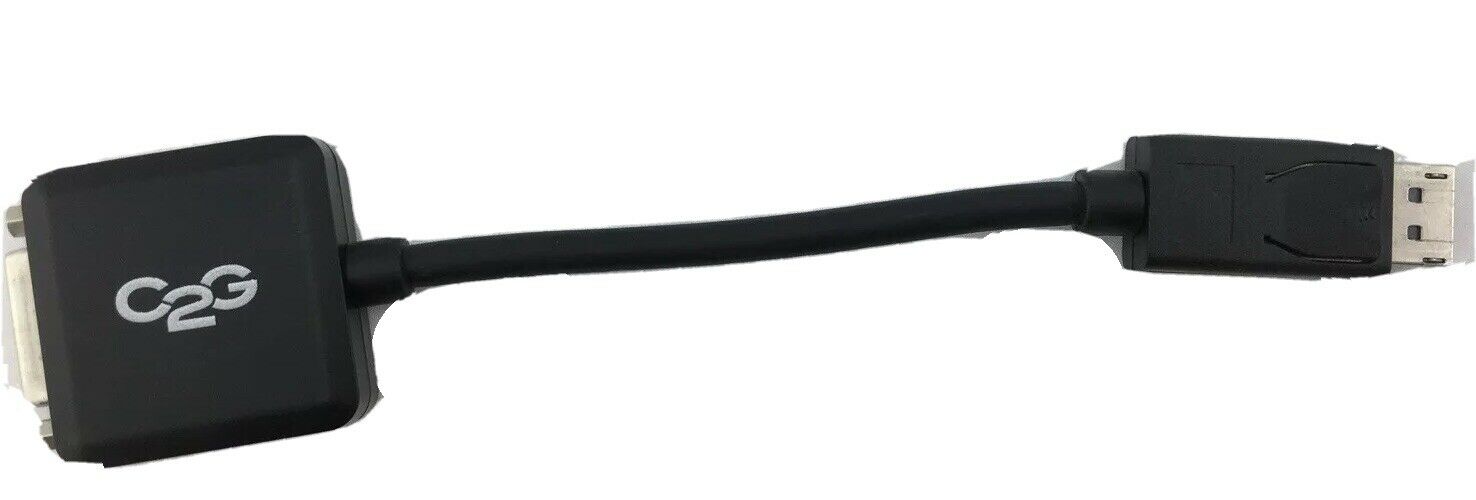

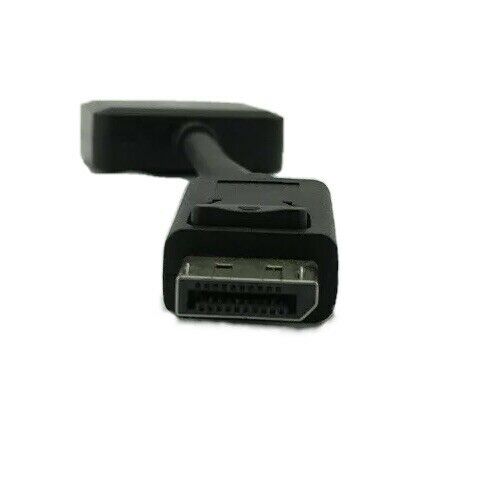

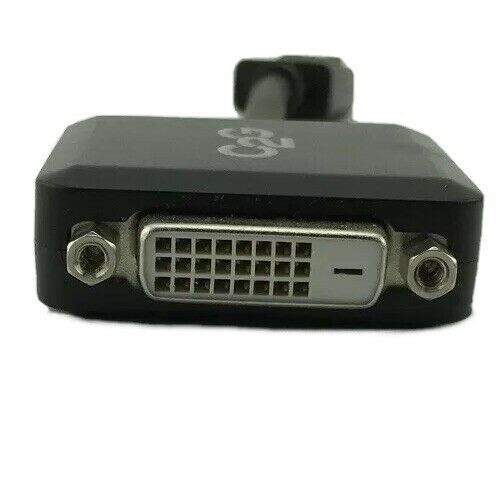

Displayport Male to Single-Link DVI-D Female Adapter/Converter 8" C2G 54321

by C2G
$6.60
SKU 54321 USED
Displayport Male to Single-Link DVI-D Female Adapter/Converter 8" C2G 54321
Grade A condition.

Product Description

This DisplayPort to Single-Link DVI-D Adapter Converter is an easy and convenient solution for connecting a DVI-D monitor to a DisplayPort computer in your home or your office. This adapter converter carries a digital video signal, supports up to a 1920 x 1200 resolution and meets the requirements of high performance applications.

Avoid frustration by simply plugging the adapter into your computer, then attach to the existing Single-Link DVI-D cable from your monitor or projector. The portable, compact design also makes it easy to carry in a laptop bag when traveling or on the go.

This adapter converter automatically converts the digital DisplayPort signal to Single-Link DVI-D, supporting full HD up to a 1920 x 1200 resolution.

Product Specifications

Color : Black
UPC : 757120543213
Weight : 0.116 LB

Electrical Specifications

• Voltage Rating - 30v
• Conductor Resistance - @ 20°C max
• Insulation Resistance - 10MΩ/km
• Time Delay - 5.2ns/m (max)
• Attenuation -
5.02dB@100-450MHz, 7.69dB@1GHz,
12.595dB@2GHz, 17.495dB@3GHz,
22.395dB@4GHz, 27.295dB@5GHz,
32.195dB@6GHz, 37.095dB@7GHz

Physical Specifications

• Operating Temperature - 0°C to 50°C
• Storage Temperature - -25°C to 70°C
• Approvals - CE

Conductor (2 Conductor, 5 Pair)
• Conductor - 30AWG (7/0.1TC)
• Insulation - FM-PE, ID:0.8±0.05mm
• Color - White/Brown, White/Red, White/Orange, White/Green, White/Blue
• Drain - 30AWG (7/0.1TC), HD-PE ID:0.56±0.05
• Shield - AL-Mylar Wrap, Coverage—100%

Conductor (5 Conductors)
• Conductor - 30AWG (7/0.1TC)
• Insulation - HD-PE, ID:0.56±0.05mm
• Color - Red/Orange/Yellow/Green/White

Overall Cable
• Jacket - PVC
• Shield - AL-Mylar—Coverage 100%, Braid—16/9/0.12
• Drain - 2:30AWG (7/0.10 BC)
• OD - 6.5±0.2
