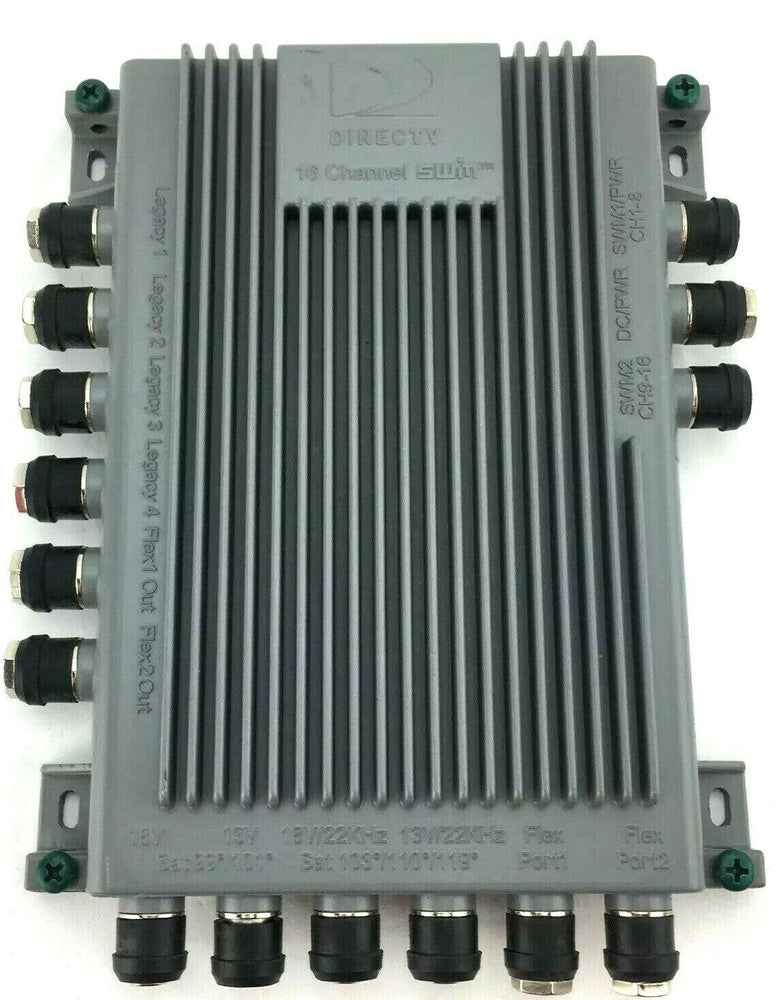

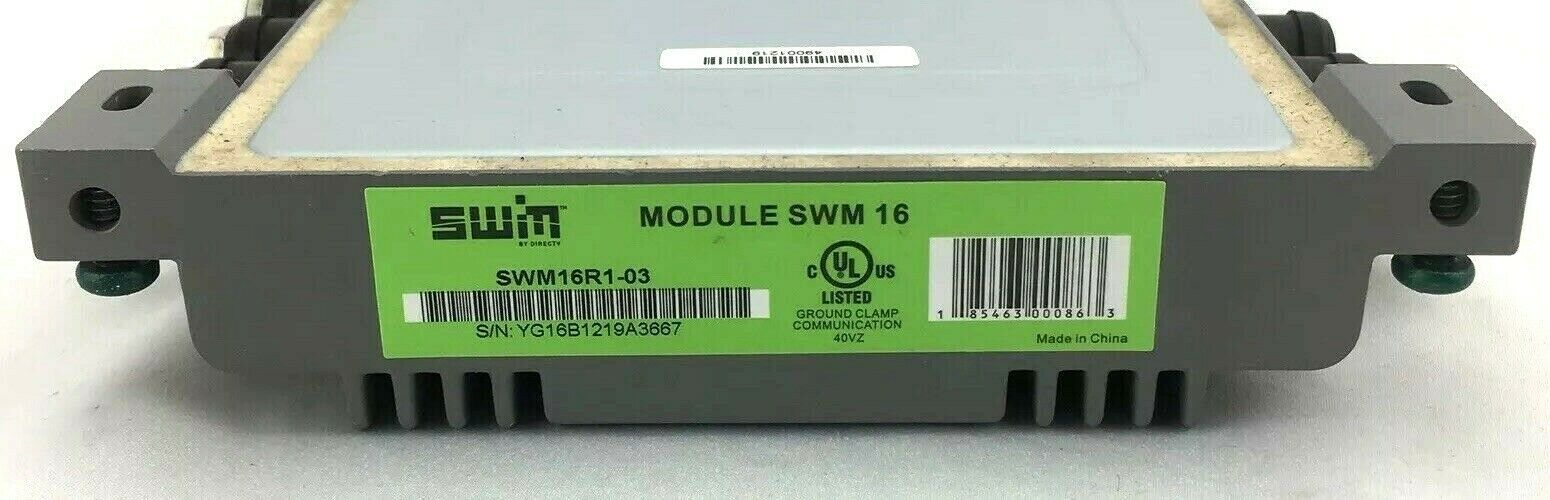

DirecTV SWM16R1-03 Single Wire Satellite Multi-Switch Module 16-Way

by DIRECTV
$17.60
SKU SWM16R1-03_USED
DirecTV SWM16R1-03 Single Wire Satellite Multi-Switch Module 16-Way

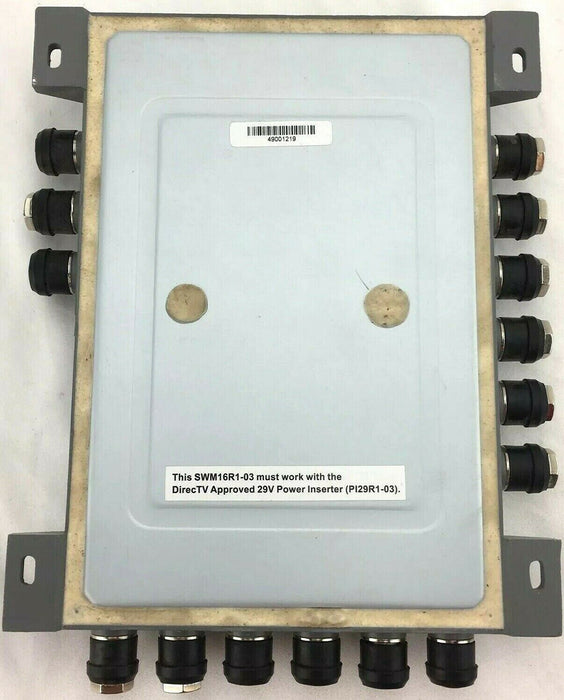

Grade A physical condition. Untested; buy as-is. Power inserter (PI29R1-03) not included.

Specifications:
  • Die-cast housing is suitable for both indoor and outdoor use
  • Supports six (6) LNB inputs, each triple-band stacked four ports (Ports 1 - 4) cover existing 99°/101°, 103°/110°/119° satellites, plus two Flex Ports (95º sat and 72.5º sat)
  • Compatable with HR24, H24, HR23, H23, HR22 HR1, H21, R16, D12 and H20 w/.2042 Firmware Update
  • DECA "bridge" Technology for IP callbacks and Multi-Room Viewing (MRV)
  • When used with DECA adapters, will provide network access to all compatible receivers, unlike having two SWM8s, which will only pass network to half the receivers
  • The single line cannot be split 16 times, you must use both outputs, which can be split up to 8 times, totalling 16.
  • Provides sixteen independent channels for supporting up to 16 DIRECTV satellite tuners
  • Provides two outputs to serve two customer dwellings (typical)
  • Provides AGC for the satellite input signal
