DIGIEVER VD-0025 Video Decoder 4K UHD Linux-embedded Wall Station 992002000000

$199.99
SKU VD-0025_USED
DIGIEVER VD-0025 Video Decoder 4K UHD Linux-embedded Wall Station 992002000000

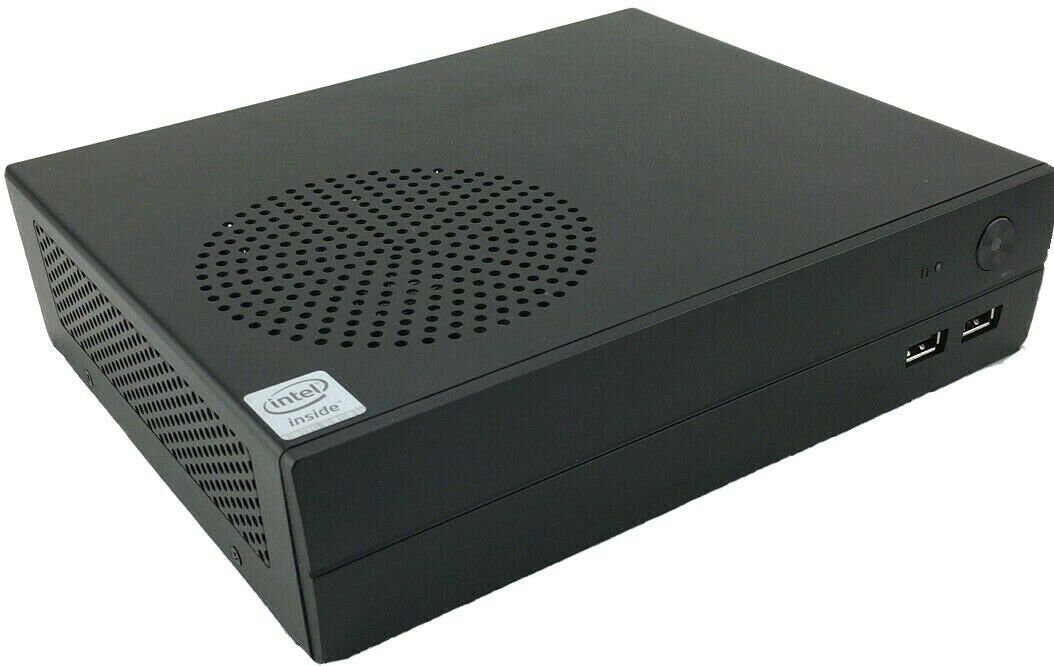

Grade A condition. Comes as pictured.


The World's First 4K Ultra HD Hardware Decode Linux-embedded Video Decoder

DIGIEVER Video Wall Decoder is a high performance video wall decoder solution for users to monitor up to 25 channels local display with superb 4K Ultra HD hardware decode performance.


Features

DIGIEVER Video Wall Station is the world’s first 4K UHD hardware decode Linux-embedded video station offering a high performance video wall decoder solution. Users can monitor up to 25 channel liveview on local display via HDMI and DVI-I connectors. DIGIEVER Video Wall Station offers four models, VD-0025, VD-0036, VD-0049 and VD-0064, with different supported channels to satisfy video surveillance requirements in diverse applications such as control rooms and stadiums.

Superb 4K UHD Local Display

● Support 12 megapixel (4K UHD) IP cameras with hardware decode
● Up to 25 channels real-time local display
● Mirror/Dual Display via HDMI/DVI-I
● Support Immervision panomorph dewarping engine
● Support 120FPS IP camera
● Dual-stream optimization for better video quality

Powered by high performance Intel Dual Core CPU, DIGIEVER Video Wall Station is the world’s first Linux-embedded video wall decoder to perform 4K UHD IP cameras giving user the smallest detail to solidly guard your secure area. With cutting-edge hardware decode technology. DIGIEVER Video Wall Station features dual-stream optimization for different display modes to optimize display performance and to adjust bandwidth loading. For multi-monitor surveillance requirements, user can make use of HDMI and DVI-I video output to display two monitors in two different areas without installing extra PC.

Multi-channel Playback

● 5-channel simultaneous playback from DIGIEVER NVRs
● Playback speed control to shorten video tracking time
● Intuitive thumbnail preview

Video playback is an important way for video surveillance to track real event situation. DIGIEVER Video Wall Station features -channel simultaneous playback to let entry level security personnel assist in figuring out event situation in order to minimize the injury, loss or damage.

Comprehensive Compatible Capability

Support over 120 IP camera brands and more than 7000 IP cameras
● Support ONVIF / Generic RTSP & MJPEG

DIGIEVER Video Wall Station is fully integrated with DIGIEVER NVR and has high compatible ability with IP cameras, which allows users to easily select suitable IP cameras for different projects and applications. Moreover, DIGIEVER Video Wall Station also supports other standard video streaming formats such as ONVIF, Generic RTSP and Generic MJPEG to quickly build suitable video surveillance environment.

User-friendly Design

Trouble-free installation in 4 Steps
● Quickly add NVR and camera via UPnP search
● PC-less operation with USB type keyboard and mouse
● Support 25 languages
● Smart control via remote controller (Optional)

The user interface and operation design is based on that of DIGIEVER NVR, so users can quickly start operating DIGIEVER Video Wall Station with zero learning curve. Four steps, less than 3 minutes, the setting of camera, system, network environment and date/time can be easily set up. Besides, users can also use optional remote controller to remotely control and manage your region without the restriction of mouse and keyboard. Furthermore, DIGIEVER Video Wall Decoder supports 24 language versions to break the limitation of language and nations.

Smart and Reliable System

● Reliable Linux-embedded system
● Complete log information
● Flexible user privilege management
● Save/Load configuration file via USB dongle/PC


Hardware Specs

  • Memory
  • 4GB DDRIII memory

    lGB Flash (DOM)

  • LAN Port
  • 1 x Gigabit RJ-45 Ethernet port

  • LED Indicators
  • Power

  • USB Connector
  • USB 3.0 x 2

    USB 2.0 x 4

  • eSATA
  • 1 x eSATA port (Reserved)

  • Buttons
  • Power

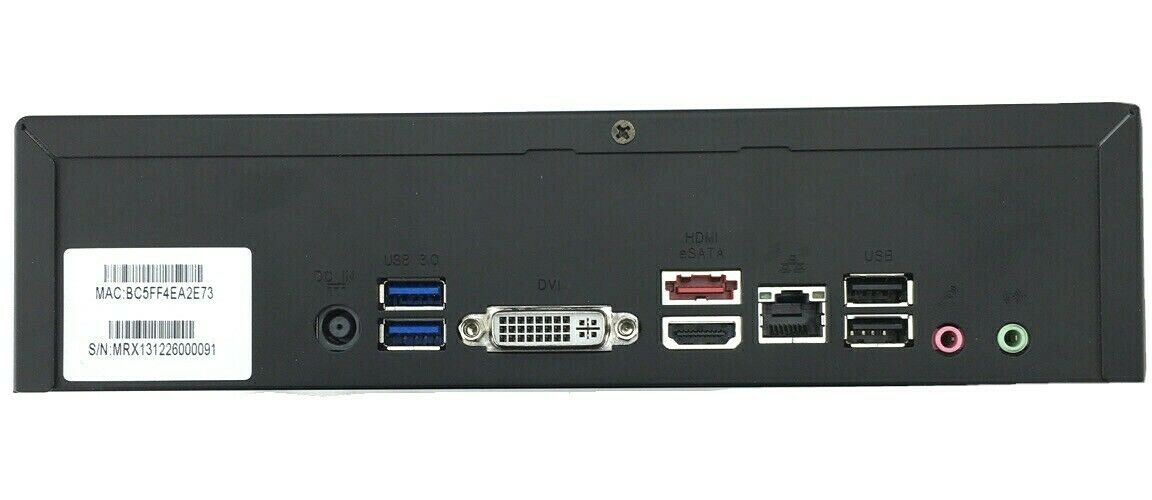

  • Output Connector
  • HDMI x1/DVI-I x1

  • Form Factor
  • Compact desktop

  • Operation Environment
  • Temperature 0~45˚C

    Humidity 0~95% R.H.

  • Power Supply
  • External power adaptor, 90W

    Input :19VDC, 4.74A

  • Power Consumption
  • Operation: 38.5W~45W

  • H/ W Dimensions
  • 250(H) x 58.5(W) x 192(D) mm

    9.84(H) x 2.3 (W) x 7.56(D) inch

  • Software Specs

  • Local Display
  • Max. Channel Support
  • 25
  • Display Mode
  • 1/3/4/5/8/9/10/12/16/20/25/30/36/42/49/56/64 & 5+1/12+1-channel & sequential and full screen display modes.

  • Max. Resolution Support
  • Resolution up to 12 megapixel (H.264)
  • H/W Decode Max. FPS in Single Page
  • 4K UHD/ 4MP:200FPS/ Full HD:480FPS/ HD:720FPS/ D1/CIF:1000FPS

  • Max. FPS per Channel
  • 120FPS
  • Display Capability
  • Dual Display (display different liveview display modes on two monitors), Mirror Display (display same liveview display mode on two monitors)
  • Monitoring Control
  • PTZ control, digital zoom, optical zoom, full screen display, video snapshot and preset position

  • System Configuration
  • Yes, local and remote PC configuration
  • Display Streams from NVR Relay
  • Yes, local and remote PC configuration
  • Audio Support
  • Yes
  • Camera Dewarp
  • Yes
  • Multi-channel Playback
  • Display Mode
  • Single/ Quad Display mode
  • Playback Control
  • Play, Pause, Fast forward, Rewind, Slow Motion, Frame By Frame
  • Security Management
  • User Privilege Management
  • User can be assigned for different levels of privilege

  • Log System
  • Hardware log, System log, current user log and historical user log

  • Access Control
  • Specify IP address or network segment for the white and black list

  • Operating System
  • Linux-embedded system

  • Network Service
  • Protocol Support
  • Suggested PC Requirement
  • Operating System
  • Microsoft® Windows® Vista/ 7 / 8/ 10 (32 and 64-bit)

  • Browser
  • Microsoft® Internet Explorer 10.0 or above, Chrome 56.0.29 or above, Firefox 51.0.1 or above, Opera 43.0.2 or above

  • Suggested Switch Requirement
  • Switch
  • Gigabit switch is highly recommended
