Dell ATI FirePro V5700 G740R 512 MB PCIe x16 Graphics Card Display Port DVI

by Dell
Sold out

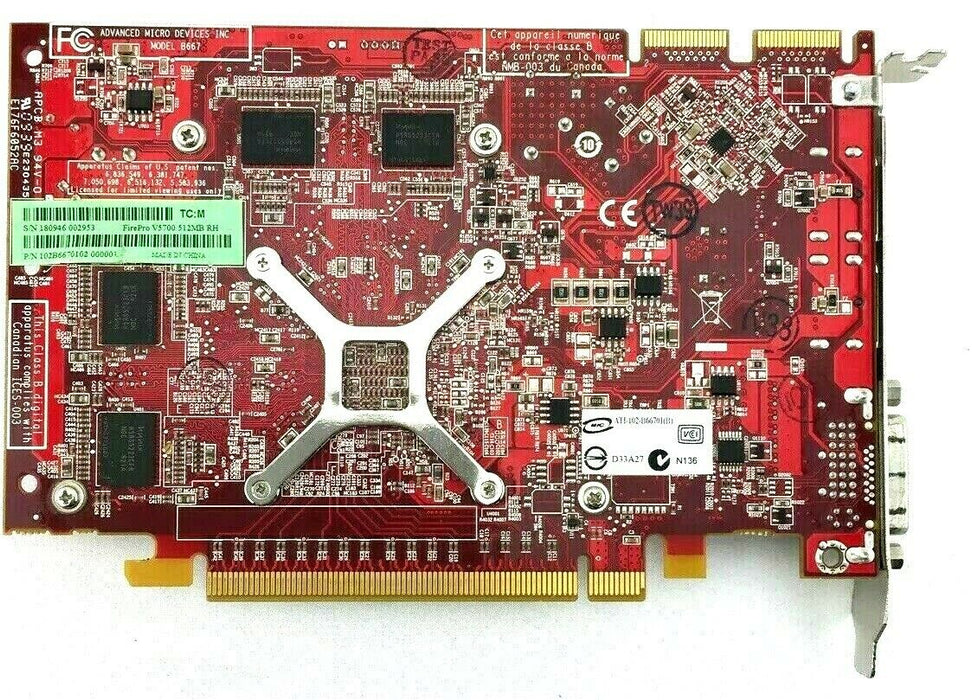

Dell ATI FirePro V5700 (G740R) 512 MB PCI Express x16 Graphics Adapter 3D
Grade A- condition. Comes as pictured.

The FirePro V5700 was a high-end professional graphics card by ATI, launched in August 2008. Built on the 55 nm process, and based on the RV730 graphics processor, in its RV730 XT variant, the card supports DirectX 10.1. Since FirePro V5700 does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games. The RV730 graphics processor is an average sized chip with a die area of 146 mm² and 514 million transistors. It features 320 shading units, 32 texture mapping units and 8 ROPs. ATI has paired 512 MB GDDR3 memory with the FirePro V5700, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 700 MHz, memory is running at 900 MHz.

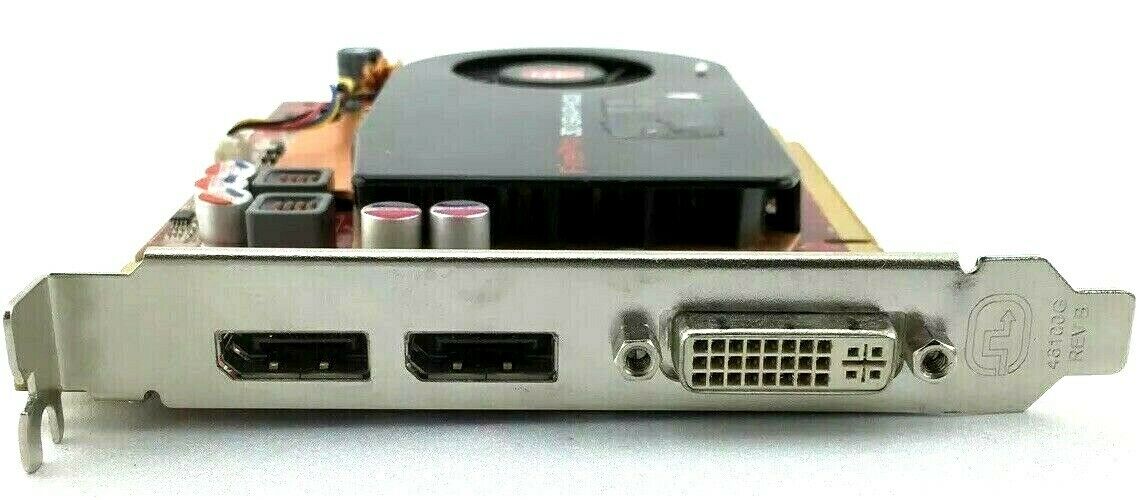

Being a single-slot card, the ATI FirePro V5700 does not require any additional power connector, its power draw is rated at 56 W maximum. Display outputs include: 1x DVI, 2x DisplayPort. FirePro V5700 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 168 mm in length, and features a single-slot cooling solution. Its price at launch was 599 US Dollars.
