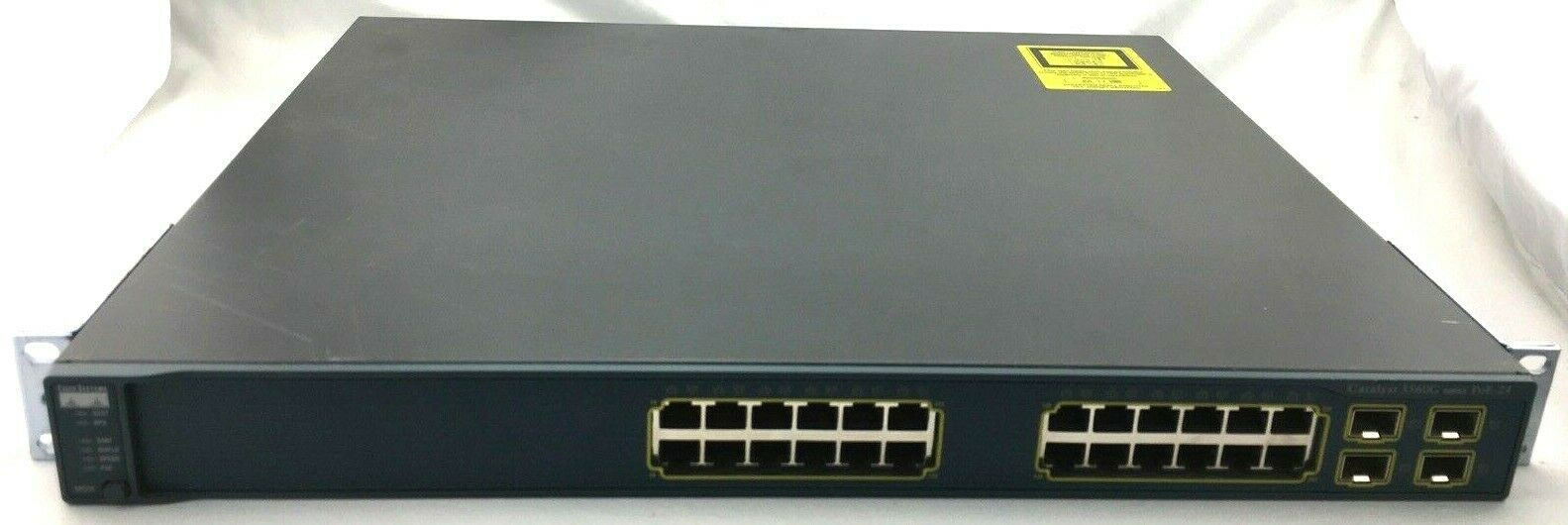

Cisco WS-C3560G-24PS-S V06 Catalyst 24-Port Managed Ethernet/Network Switch
Product Information
“Zero touch” deployment of the Cisco 3560 v2 network switch occurs when users employ the Autoinstall feature to download specific Cisco images and configuration files. Users can allocate the same or several IP addresses to a port when setting up various devices. Simplify deployment by auto-configuring multiple switches simultaneously. Issue global commands to distinguish IP phones or classify traffic. Time-saving features integral to the switch maximize productivity. An inbuilt feature allows ports to automatically select the transmission mode to boost bandwidth. For added convenience, you can manage network operations easier using the Embedded Event Manager that allows operators to monitor and program automated features and define policies. Rest assured your information is safe and secure due to port-level security and identity based security features.
Product Identifiers
- Brand
- Cisco
- MPN
- WS-C3560G-24PS-S
- UPC
- 5051749143942, 0882658070723, 0746320953373
- Model
- WS-C3560G-24PS-S
- eBay Product ID (ePID)
- 219485412
Product Key Features
- Ethernet Technology
- Fast Ethernet (100-Mbit/s), Ethernet, Gigabit Ethernet (1000-Mbit/s)
Dimensions
- Weight
- 13.5lbs.
- Width
- 17.5in.
- Height
- 1.73in.
- Depth
- 44.9in.
Additional Product Features
- Power over Ethernet (PoE)
- Yes
- Interfaces
- 24 X Network / Power-Ethernet 10base-T/100base-Texas/1000base-T-R&J Enterprises-45, 1 X Management-Console-R&J Enterprises-45, 1 X Management-R&J Enterprises-45
- Power Source
- AC 120/230V (50/60Hz)
- Networking Type
- Switch
- Ports Quantity
- 24
- Power Consumption Operational
- 540W
- Connectivity Technology
- Wired
- Routing Protocol
- Rip-2, Ospf, Bgp-4, Dvmrp, Rip-1, Igrp, Static IP Routing, Eigrp, Ripng
- Power Supply
- Power Supply-Internal
- Flash Memory
- 32MB Flash
- Data Transfer Rate
- 1000Mbps
- Remote Management Protocol
- Snmp 2C, Telnet, Rmon 9, Snmp 3, Tftp, Ssh-2, Http, Snmp 1, Rmon 2, Rmon 3, Rmon 1
- Form Factor
- Rack-Mountable, External
- MAC Address Table Size
- 12k Entries
- MAX Operating Temperature
- 113 ˚F
- RAM Memory
- 128MB
- Switching Protocol
- Ethernet
- Compatibility
- PC
- OTHER Features
- Layer 2 Switching, Full Duplex Capability, Mld Snooping, Power over Ethernet (PoE), Mpls Support, Trivial File Transfer Protocol (Tftp) Support, Quality of Service (QoS), Port Aggregation Protocol (Pagp) Support, Virtual Route Forwarding-Lite (Vrf-Lite), Dhcp Support, ACCESS Control List (Acl) Support, Dynamic Trunking Protocol (Dtp) Support, Time Domain Reflectometry (Tdr), Dynamic Arp Inspection (Dai), IP-Routing, Manageable, Traffic Shaping, Vlan Support, Auto-Uplink (Auto Mdi/Mdi-X), Igmp Snooping, Dhcp Snooping, Dhcp Server, Trunking, Layer 3 Switching, Auto-Negotiation, Auto-Sensing Per Device
- Humidity Range Operating (Range)
- 10-85%
- Status Indicators
- Port Status, Port Transmission SPEED, Port Duplex Mode, Power, Link Oklahoma, System, Port Status, Port Transmission SPEED, Port Duplex Mode, System
- Min Operating Temperature
- 32 ˚F
- Enclosure Type
- External-1U
