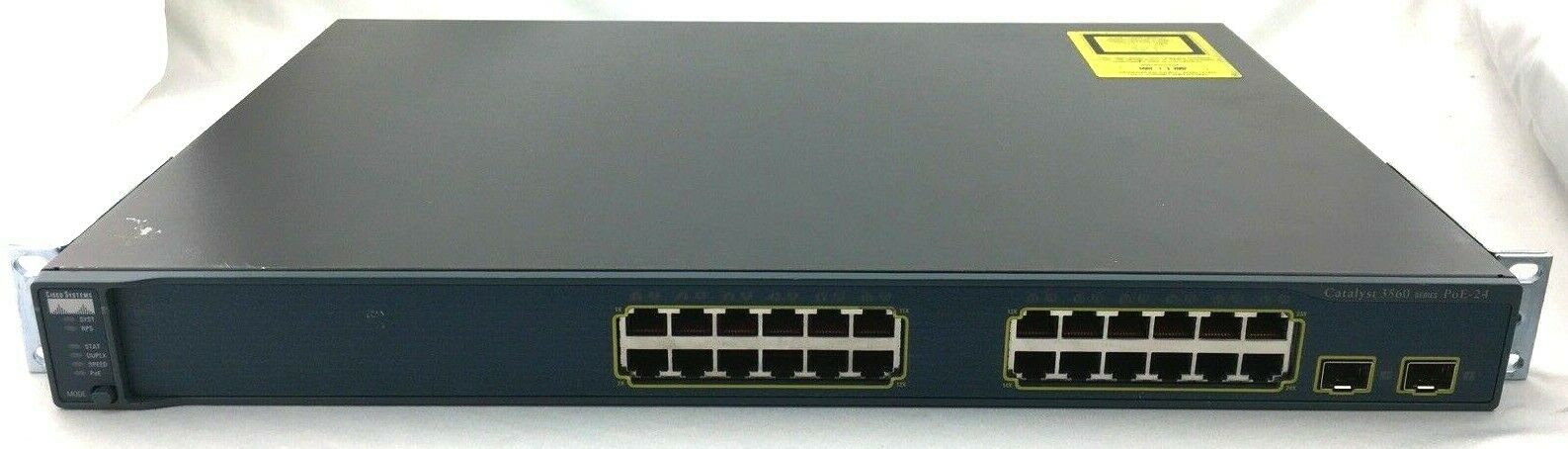

Cisco WS-C3560-24PS-S V06 Catalyst 24-Port Managed Network Switch 1 Gbps
by Cisco
Sold out
$30.00
SKU WS-C3560-24PS-S_USED
Cisco WS-C3560-24PS-S V06 Catalyst 24-Port Managed Network Switch 1 Gbps
Grade B physical condition. Ships with universal power cable.
The Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.
Quick Specs:
| Model # | WS-C3560-24PS-S |
|---|---|
| Form Factor | Desktop, Rack Mountable |
| Rack Units | 1RU |
| Software | IP Base |
| Subtype | Fast Ethernet |
| Flash Memory | 16 MB |
| Network Module Slots | 0 |
| Total VLANs | 1,024 |
| Manufacturer | Cisco |
|---|---|
| Power Over Ethernet (PoE) | PoE |
| RAM | 128 MB |
| Jumbo Frame Support | 9,018 byte |
| MAC Address Table Size | 12,000 |
| Stackable | Yes |
| Forwarding Bandwidth | 32 Gbps |
| Product Line | Cisco Catalyst |
WS-C3560-24PS-S:
| Ports: | (24) x 10/100 + 2 SFP |
|---|---|
| Acoustic Noise | 42 dBa |
| Power Supply Rated Maximum | 485W |
| Measured 100% Throughput Power Consumption: Switch Power | 43W |
| Measured 100% Throughput Power Consumption: Total Output | 144 BTU/hr |
| Measured 100% Throughput Power Consumption: PoE Power | 370W |
| Condition | Used |
| Dimensions: | 1.73 x 17.5 x 11.8 in |
| Weight: | 11.3 lbs |
|---|---|
| MTBF: | 224,100 hours |
| Power Rating | 0.485 kVa |
| Measured 5% Throughput Power Consumption: Switch Power | 40W |
| Measured 5% Throughput Power Consumption: Total Output | 143 BTU/hr |
| Measured 5% Throughput Power Consumption: PoE Power | 188W |
| AC Input Voltage | 100-240VAC |
Environmental Parameters:
| Min Operating Temperature | 32° F |
|---|---|
| Max Operating Temperature | 113° F |
| Humidity | 10 to 85% noncondensing |
| Min Storage Temperature | -13° F |
|---|---|
| Max Storage Temperature | 158° F |
Standard Features:
- Dynamic Host Configuration Protocol (DHCP)
- Autonegotiation
- Dynamic Trunking Protocol (DTP)
- Port Aggeration Protocol (PAgP)
- Link Aggeration Protocol (LACP)
- Automatic Media-Department Interface Crossover (MDIX)
- Switching Database Manager
- Local Proxy Address Resolution Protocol (ARP)
- Multicast VLAN Registration (MVR)
- Unidirectional Link Detection Protocol (UDLD)
- VLAN1 Minimization
- Internet Group Management Protocol (IGMP)
- Voice VLAN
- Cisco VLAN Trunking Protocol (VTP)
- Layer 2 Trace Route
- Trivial File Transfer Protocol (TFTP)
- Network Timing PRotocol (NTP)
- Private VLANs
- Access Control Lists (ACL's)
- Secure Shell (SSH) Protocol
- MAC Address Notification
- Bridge Protocol Data Unit (BPDU)
- IGMP Filtering
- IEEE 802.1s/w Rapid Spanning Tree Protocol (RSTP)
- Cisco Hot Standby Router Protocol (HSRP)
