C2G E239937 RapidRun Optical Runner Cable Plenum OFNP-Rated Fiber Spool 750'

by C2G
$495.00
SKU E239937_SPOOL_USED

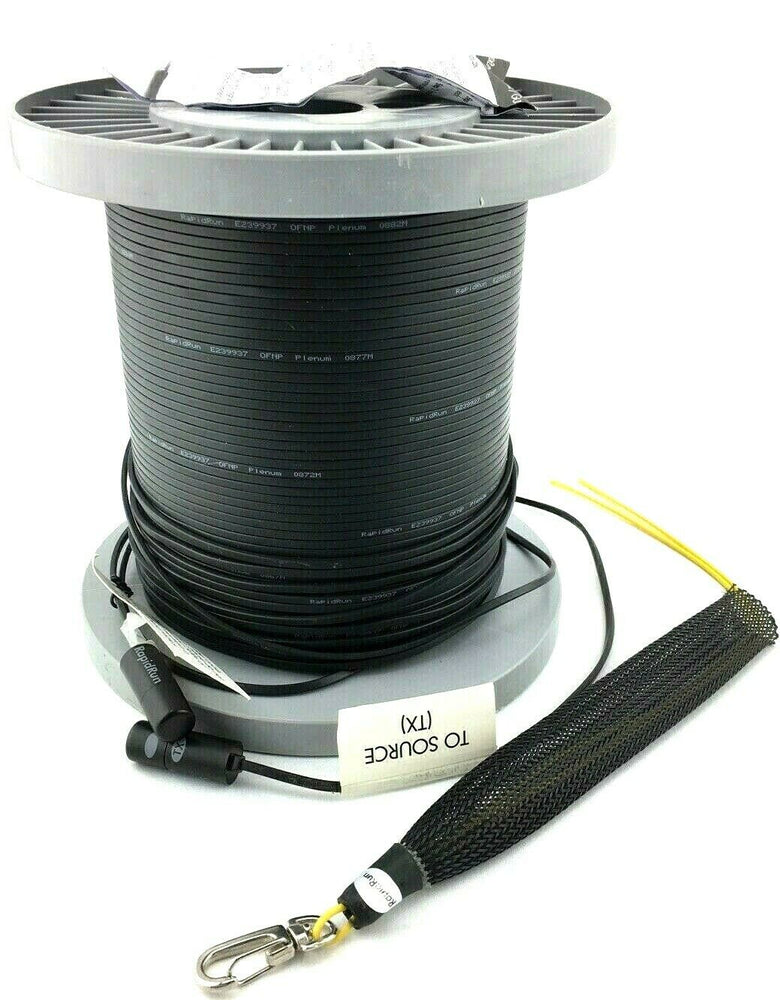

C2G E239937 RapidRun Optical Runner Cable Plenum OFNP-Rated Fiber Spool 750'
Grade A physical condition; most of the wire has never been unspooled. PLEASE NOTE: the exact length of the wire is unknown, but is estimated to be 750 ft or 1000 ft

Plenum, OFNP-Rated for in-wall installation and optimized for extremely high bandwidth connections over fiber optic cable.

Part Numbers May include: 1OOPY66T8CWCITDJ, 3935184, 432062, 60128, 60128_c2g, 757120601289, CTG-60128, CTG12563, ETS3935184, SY3935184


Description

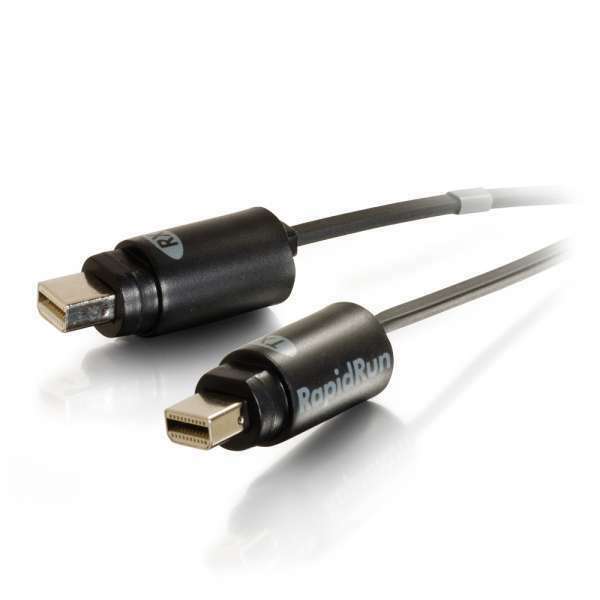

RapidRun Optical is C2G's leanest-longest, fastest-strongest RapidRun product yet! Designed to be the standard for in-wall HDMI audio/video installations, it boasts an 18Gbps bandwidth, a diameter of just a half inch and a plenum rated jacket. Using pre-terminated break-away flying leads and wall plates with an in-wall runner provides a flexible, efficient, high quality connection for all types of equipment, with no field terminations. Utilize this Plenum, OFNP-Rated fiber runner cable for in-wall installations that require the cable to be run through an air handling space or air plenum. This RapidRun solution supports up to a 4k resolution, while providing enough bandwidth to serve the audio/video needs of commercial applications from classrooms to lecture halls and auditoriums to boardrooms for years to come.


Specifications

Maximum 4k capabilities
• 4096x2160 at 30 Hz 4:4:4 (Chroma Sampling) 10 bit (Max bit depth per color)
• 3840x2160 at 30 Hz 4:4:4 (Chroma Sampling) 10 bit (Max bit depth per color)
• 4096x2160 at 60 Hz 4:4:4 (Chroma Sampling) 8 bit (Max bit depth per color)
• 3840x2160 at 60 Hz 4:4:4 (Chroma Sampling) 8 bit (Max bit depth per color)

Electrical Specifications
• Resolutions Supported: 4096x2160 60Hz, 4096x2160 30Hz, 3840x2160 60Hz, 3840x2160 30Hz, 1080p, 720p, 480p
• Frame rate 24, 25, 30, 50, or 60fps
• Chroma Sampling 4:4:4, 4:2:2, 4:2:0
• Color Bit depth 8 bits per color for 60 Hz, 10 bit per color for 30 Hz
• Aspect ratio supported 21:9, 16x9
• HDCP 2.2
• Bandwidth 18 Gbps
• Supported audio channels 32
• Audio sample frequency 1536kHz
• Synchronization of audio and video Dynamic
• Audio Return Channel
• HDMI Features Supported: Ethernet Return Channel, HDMI High Speed, HDCP, EDID, CEC,

Physical Characteristics
• Jacket Rating: OFNP (Plenum)
• Temperature Rating: 0°C ~ 70°C
• Humidity: 0% ~ 90% RH
• Cable Pull Strength: 30lbs
• Bend Radius: 5mm
• Compliance: OFNP, CE, FCC, RoHS2
