C2G 60000 RapidRun Multi-Format Runner Cable 6ft in-Wall CMG-Rated 15 Pin DIN

by C2G
Sold out
$30.00
SKU 60000_USED
C2G 60000 RapidRun Multi-Format Runner Cable 6ft in-Wall CMG-Rated 15 Pin DIN

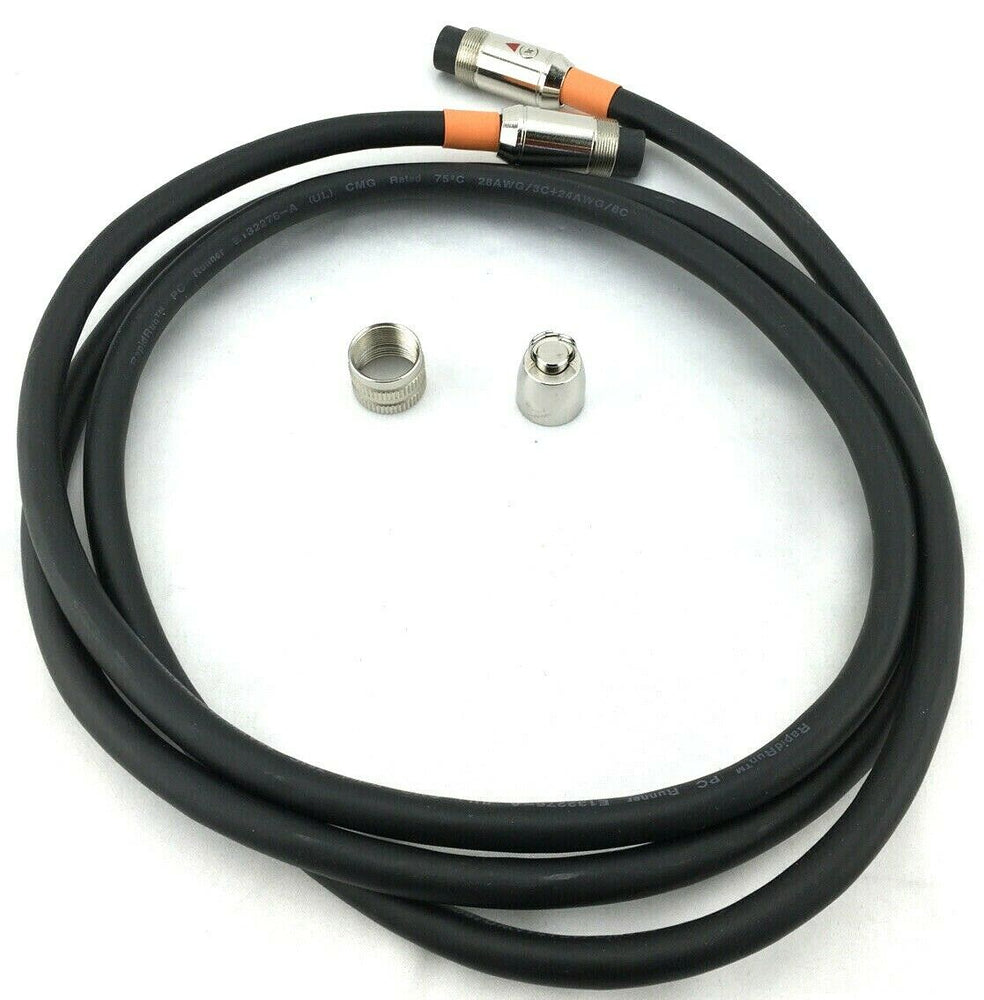

Grade A condition. Comes as pictured.

Optimized for high density, multi-format signal applications over a single cable


DESCRIPTION

RapidRun® is designed to be the standard for in-wall audio/video installations. Using pre-terminated Break-away flying leads and wall plates with an in-wall runner ensures flexible, efficient, high quality connections for all types of equipment, with no field terminations.

Use this CMG-rated Multi-Format Runner for in-wall installations that support high density, multi-format applications. Whether hanging a projector in a modern 21st century classroom or installing a commercial digital signage system, a clean, crisp signal will be delivered every time.

Please note: Each complete RapidRun Multi-Format runner solution requires a break-away flying lead or wall plate to terminat each end of the runner cable. Each runner requires (2) break-away flying leads, (2) wall plates, OR (1) break-away flying lead and (1) wall plate.


SPECIFICATIONS

Product Specifications

Color : Black
Length : 6.00 Foot
Jacket Rating : In Wall
UPC : 757120600008
Vendor : C2G
Weight : 0.674 LB
Electrical Characteristics
3 Coax Conductor:
•Impedance: 75±5Ω
•Capacitance: 71±2pF/ft
•Velocity of propagation: 78±1%
•DC resistance: 237±10Ω/km
•Dielectric strength: 500VAC/1 minute min.
•Insulation resistance (500V): 10MΩ/KM
3 Twisted Pair Conductors
•DC resistance: 93.25Ω/m at 20°C
•Dielectric strength:750VAC/minute min.
•Insulation resistance: 100MΩ/KM at 20°C

Physical Characteristics
•Voltage rating: 30V
•Temperature rating: 80°C
•Temperature range: -25° - 80°C
•Minimum bend radius: 90mm
Conductor (qty. 3)
•Conductor type: 28AWG (7/0.127) (tinned copper)
•Dielectric: Foam PE
•Shield: Spiral shield (tinned copper) (90% coverage)
•Insulation: PVC
Conductor (qty. 3 twisted pair)
•Conductor type: 24AWG (7/0.2) (tinned copper)
•Foil shield: Aluminum foil (100% coverage)
•Insulation: PVC
Conductor (qty. 2 conductors)
•Conductor type: 24AWG (7/0.2) (tinned copper)
•Insulation: PVC
Overall Cable
•Foil shield: Aluminum foil (100% coverage)
•Braided shield: 24/8/0.12 (tinned copper) (85% coverage)
•Jacket: Matte PVC - CMG rated

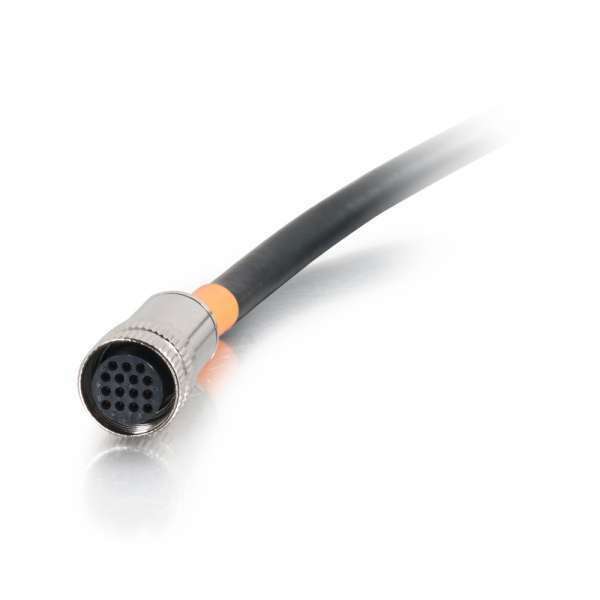

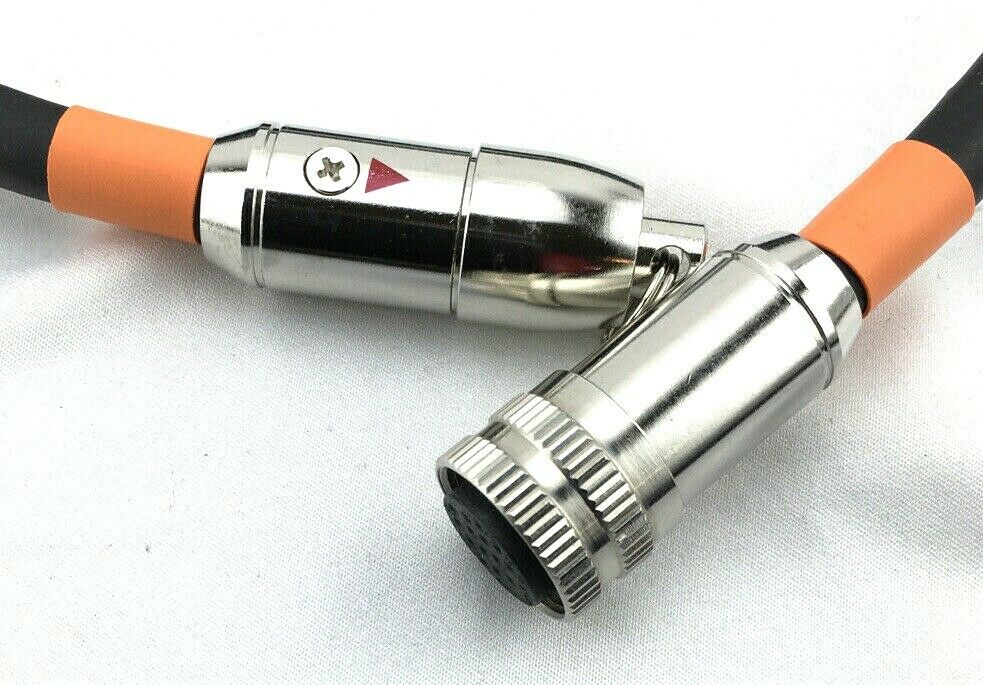

RapidRun Din Connector
•Connector type: 15-pin DIN
•Contact material: Brass, 3µm gold plating
•Insulation: Black PBT
•Dimensions (DxL): 16.0 x 39.0mm
