C2G 29372 HDBaseT Extender Receiver-Scaler/De-Embedder Extend 4K HDMI/VGA 115ft

by C2G
$456.50
SKU 29372_OB
C2G 29372 HDBaseT Extender Receiver-Scaler/De-Embedder Extend 4K HDMI/VGA 115ft
New & unused. Comes as pictured.

Extend 4K HDMI and VGA up to 115ft over a single Cat5e, Cat6, or Cat6a network patch cable using HDBaseT technology.


Description

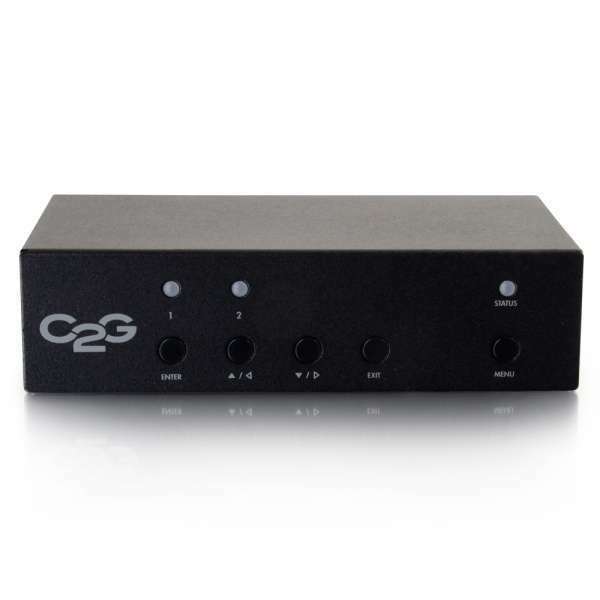

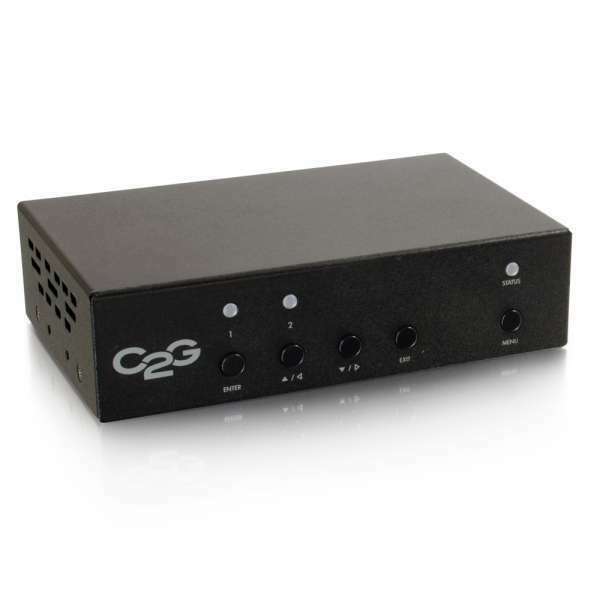

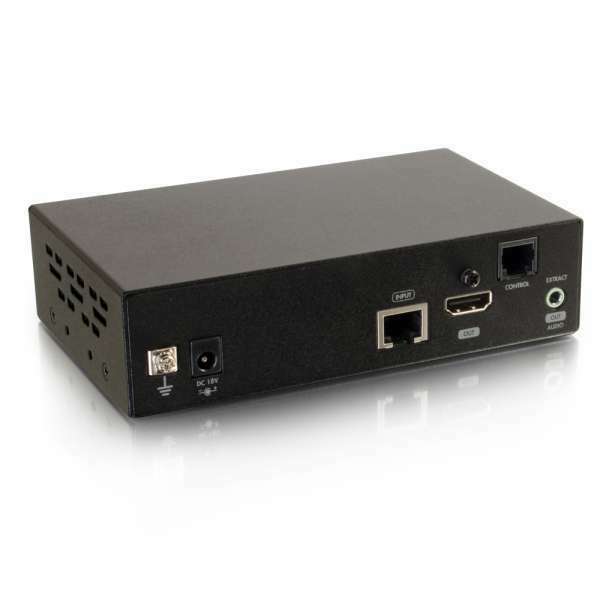

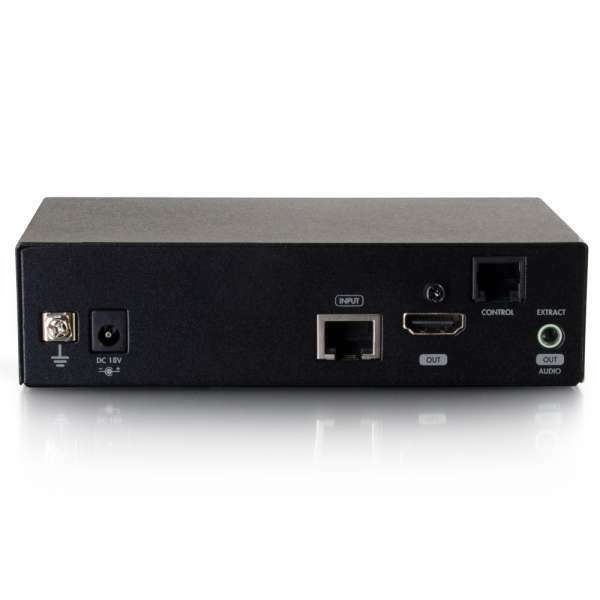

The HDMI HDBaseT Over Cat Extender Receiver - Scaler/De-embedder is an ideal solution for extending HDMI and VGA + Stereo Audio signals from a Blu-ray™ player or a laptop to a projector. When paired with an HDBaseT transmitter, like C2G's HDMI and VGA + Stereo Audio HDBaseT over Cat Extender Transmitter, this receiver extends HDMI, VGA and Stereo Audio signals over a single Cat5e, Cat6, or Cat6a network patch cable up to 230 feet at a 1080p resolution. Switching between HDMI and VGA inputs is made easy with three options available. Automatic switching displays the last connected device, manual switching via the button on the front of the receiver, or Serial RS232 switching which accepts serial commands from a control device, like C2G's A/V Controller. The built-in scaler up-scales VGA video to a 1080p resolution, ensuring that a high performance image is displayed . The de-embedder splits the audio from HDMI video and converts it to a Stereo Audio output to support an audio system that is separate from the display. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. This solution utilizes TruChoice™ power, which allows power to be supplied over the Cat cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution. HDBaseT technology supports HDCP and allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display’s capabilities, to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension.

Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded, solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled, is run near other high-frequency signaling cables, or in high EMI/RFI environments. For best performance use a Cat6 Solid Shielded Patch Cable or an HDBaseT Certified Cat6a Patch Cable.


Specifications

Electrical Specifications
• Maximum Distance Supported: 230ft (70m) at 1920 x 1080
• Maximum Resolution Supported: 1920 x 1080 (1080p)
• Supports: HDCP, HDBaseT, Serial Control

Power Adapter
• Input Voltage: 100-240 VAC, 50~60HZ
• Output Voltage/Amperage: 0.6A, 18VDC, 1.0A
• Cable Length: 1530±100mm
• Plug Diameter: 4.75mm, ID=1.7mm
• Center Pin Polarity: Positive

Physical Specifications
• Operating Temperature: 0~40°C; 0-80%RH (Non-condensing)
• Storage Temperature: -10~60°C; 0-80%RH (Non-condensing)
