Bosch VUC-1055-F221 Indoor Microdome Camera Analog BNC High Res (NTSC) 720TVL

by Bosch
$69.99
SKU VUC-1055-F221_USED

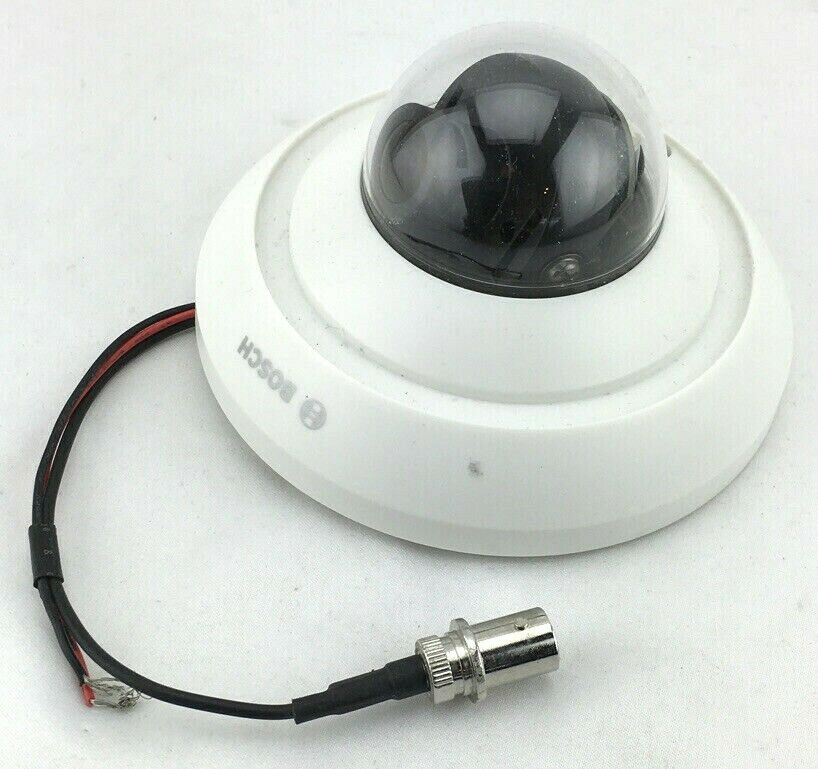

Bosch VUC-1055-F221 Indoor Microdome Camera (NTSC)
Grade B+ condition. Some minor scuffs/scratches.

The Bosch VUC-1055-F221 Indoor Microdome Camera (NTSC)is a ready-to-use, analog video surveillance camera designed for indoor use. Its high-performance 960H 1/4” CCD sensor provides a resolution of 720 TVL. The flexible and compact design of this camera allows it to be used in various applications. It is easy to install, and has a simple menu system wherein functions like privacy and motion detection zones can be set.
  • High resolution 960H 1/4" CCD sensor
  • Discreet Microdome housing
  • Easy installation
  • Digital noise reduction
  • 8 programmable privacy zones

SPECIFICATIONS

System NTSC
Effective Pixels (H x V) 976 x 494
Image Sensor 1/4" 960H CCD sensor
Resolution 720 TVL
Video Output Composite: 1 Vpp
Impedance 75 Ω
Sync System Internal sync.
Signal to Noise Ratio 55 dB minute (sharpness, AGC off)
Sensitivity 0.43 lx (6500 K, F2.8, 30 IRE)
Manual Shutter 1/60 to 1/10,000
Digital Noise Reduction (DNR) 2 DNR
White Balance ATW (1800 to 10500 K), Push, User1, User2, Anti CR, Manual, Push Lock
Light Compensation OFF/BLC/HLC
Dynamic Range On, Off
AGC (Automatic Gain Control) On, Off
Electronic Sensitivity Control Auto, Color, B/W (day/night)
Motion Detection On, Off (4 programmable zones)
Privacy On, Off (8 programmable zones, 4 with motion area on)
Mirror On (horizontal), Off
OSD Languages English, Japanese, German, French, Russian, Portuguese, Spanish, Simplified Chinese
Lens Type Fixed board lens 2.5 mm, F2.8
Lens Viewing Angle Horizontal: 85°

Vertical: 64°

Lens Angle Adjustment Tilt: 60°

Pan: 360°

(2-axes)

Supply Voltage 12 VDC
Power Consumption 1.2 W maximum / 0.1 A
Standards FCC Part 15 subpart B, Class B

UL 60950-1, 2nd Edition

CAN/CSA-C22.2 No. 60950-1-07, 2nd Edition

EN 55022, Class B

EN 50130-4

LVD 2006/95/EC

EN 60950-1:

IEC 60950-1/A1

Operating Temperature -4 to 113°F (-20 to 45°C)
Storage Temperature -4 to 158°F (-20 to 70°C)
Operating Humidity 20 to 90% RH
Storage Humidity 20 to 90% RH
Dimensions (Ø x H) 4.13 x 2.20" (105.00 x 56.00 mm)
Weight 0.28 lb (125.00 g)
