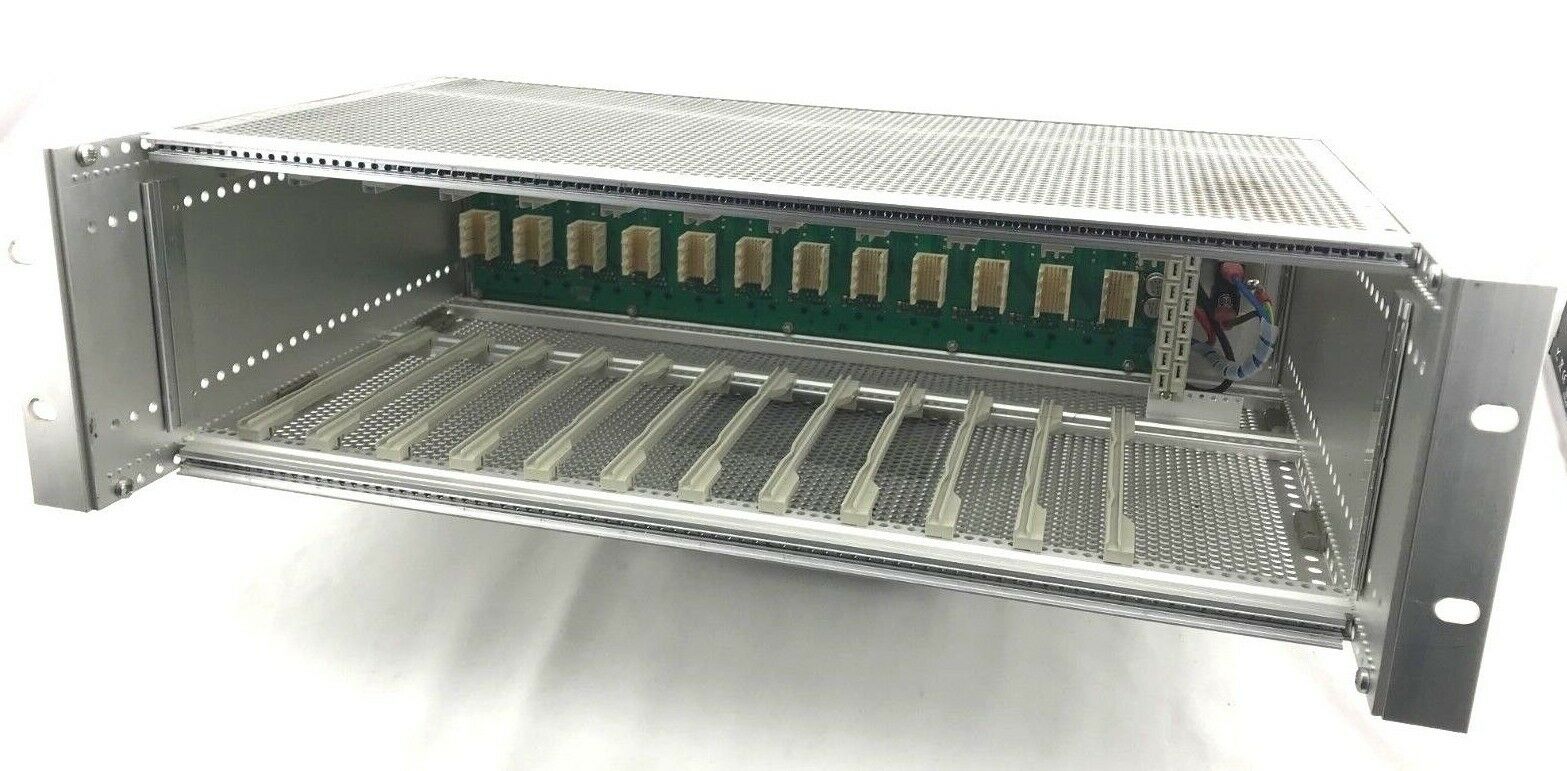

Axis 241Q 19" Rack Mount Video Server Blade Chassis, 3RU Bare Bones 0192-001

by Axis
Sold out
$2.00
SKU 0192-001-03
Pulled from working environment. Great shape. Works like new.

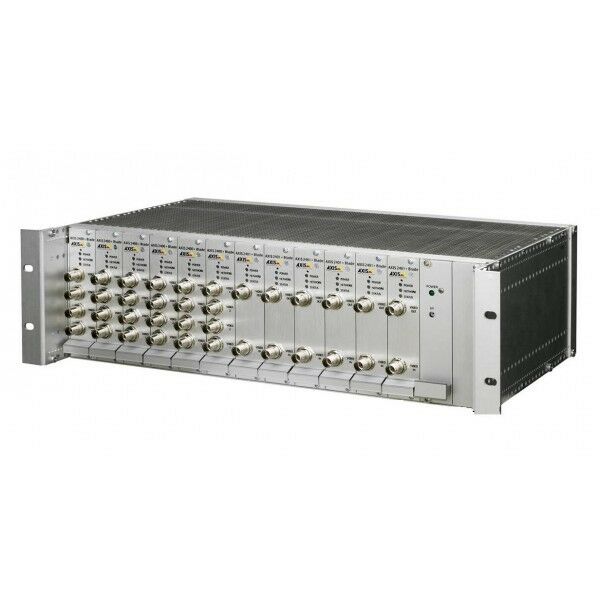

The AXIS Video Server Rack is a 19” rack solution that can be
used to mount a large number of video servers (typically serving
15-20 cameras and upwards) with a common power supply,
providing a space-efficient solution.

The Axis rack solution combines high reliability and
functionality with quick, flexible and professional installation.
Designed for improved serviceability and quick replacement

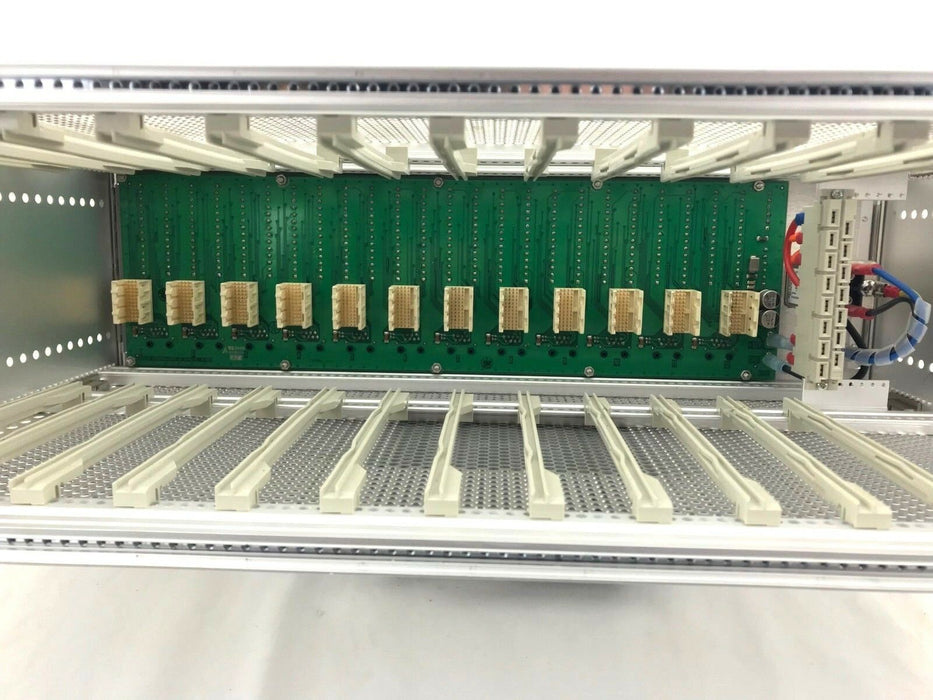

of units, the rack holds up to 12 interchangeable and hotswappable
blades.

FEATURES

  • Quick and professional installation of various video servers in the same rack
  • Expandable system, simply by adding blades and wiring up
  • Integrated power supply, for easy installation/expansion, and easy addition of back-up power solutions
  • Higher density of video channels compared to stand alone solution
  • Improved serviceability and trouble-free unit replacement

SPECS

• Aluminum rack, 19” / 3U
• Available slots: 12 (support hot swap)

Connections

• Video: Analog video input/s (BNC)1

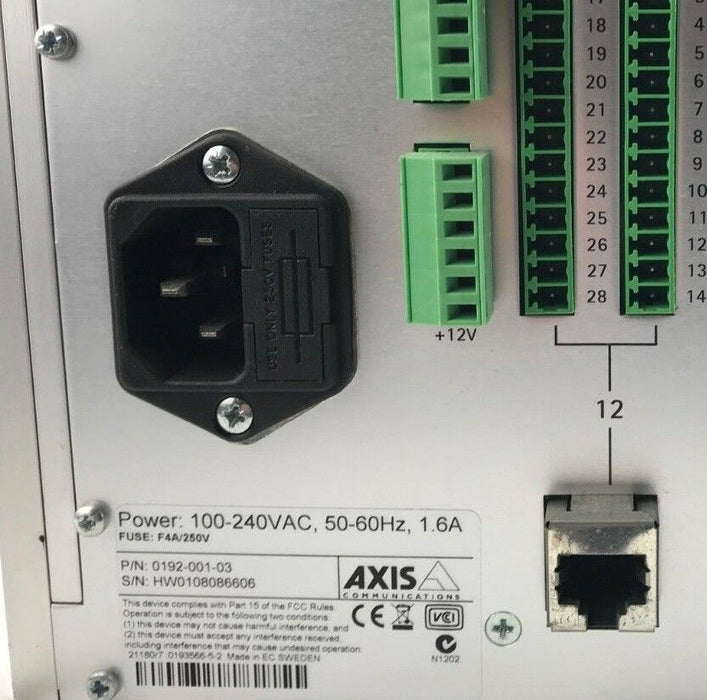

• Power: 100-240 VAC, 50/60 Hz, 1.6 A
Each slot contains the following connectors on
the rear of the rack:
• Network: 10Base-T/100Base-TX Ethernet
networks (RJ-45)
• Serial communication: RS-232 & RS-485
(terminal block)
• I/O: alarm inputs and outputs (terminal block)2

Physical

• Temp: 5 - 50 ºC (41-122 ºF)3
• Humidity: 20 - 80% RHG
• Height: 132 mm (5.2”)
• Width: 482 mm (19.0”)
• Depth: 300 mm (11.8”)

Certifications
CE compliant according to:
+ EN55024:1998 +A1
+ EN61000-6-1:2001
+ EN61000-6-2:2001
+ EN55022:1998 +A1 Class B
+ EN61000-3-2:2000
+ EN61000-3-3:1995 +A1

- FCC Part 15 subpart B, demonstrated by
compliance with EN55022:1998
- VCCI:2002 Class B ITE
- C-tick AS/NZS 3548

- EN60950

Compatible Blad Cards:
  • 240Q
  • 241Q
  • 241S
  • 250S
  • 2400+
  • 2401+
