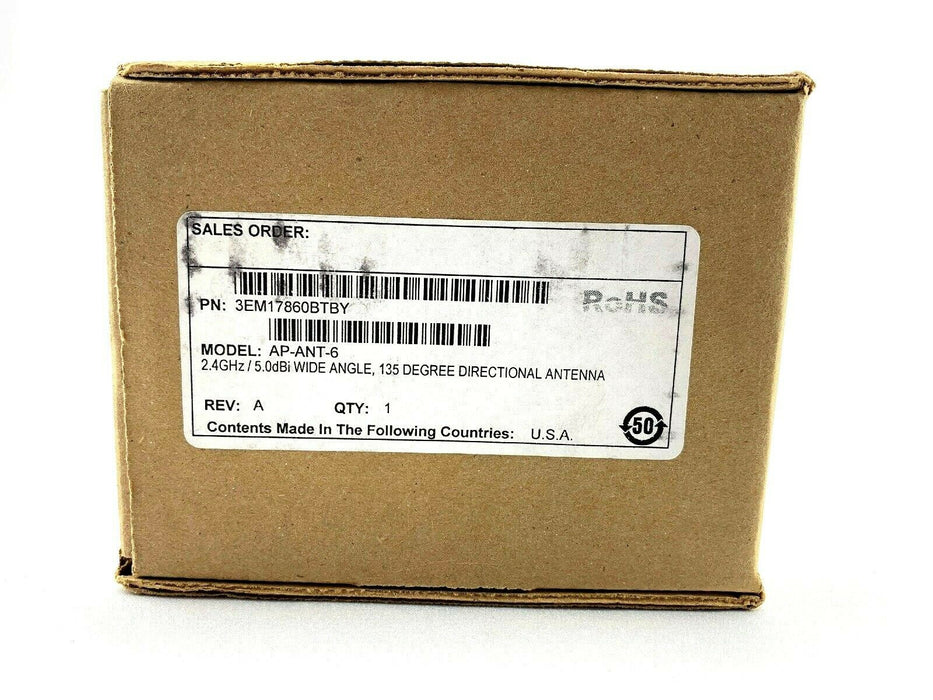

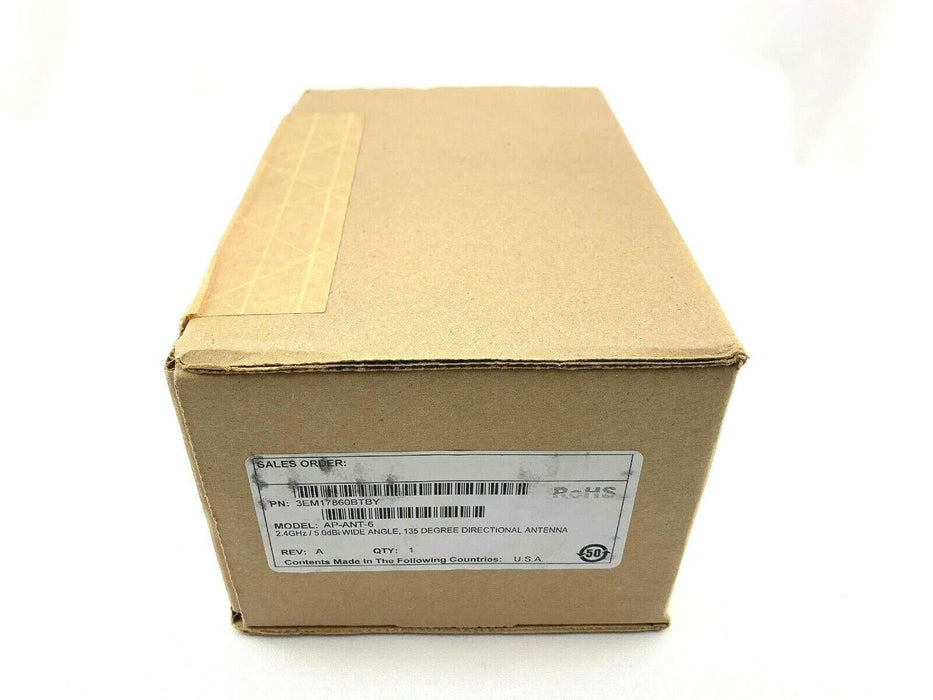

Aruba Networks AP-ANT-6 Antenna 2.4GHz, 5.0dBi, Wide Angle, 135° Directional

$25.00
SKU AP-ANT-6
Aruba Networks AP-ANT-6 Antenna 2.4GHz, 5.0dBi, Wide Angle, 135° Directional
Condition is New in box.

The AP-ANT-6 is a 135° wide H-plane indoor / outdoor antenna designed for wall-mounted applications where omni-directional coverage is required. Traditional omni-directional antennas, when wall-mounted, can suffer from undue multi-path effect; the AP-ANT-6 significantly reduces this. These antennas are ideal for healthcare, educational, office and industrial campus applications.


SPECIFICATIONS

FREQUENCY / GAIN
• 2.4 Ghz - 2.5 Ghz / 5.0 dBi

Polarization
• Linear

Element Type
• Wide-angle 135° Directional

Impedance
• 50 ohms

Maximum Input Power
• 50 watts

VSWR (Minimum Performance)
• < 1.5:1

Dimensions
• 6” x 3” x 2”

Housing
• ABS

Fly Cable Length / Connector
• 36” / RP-SMA

Operating / Storage Temp.
• -40° to +70° C

Installation Hardware
• Articulating mount with wall and mast mounting kit
