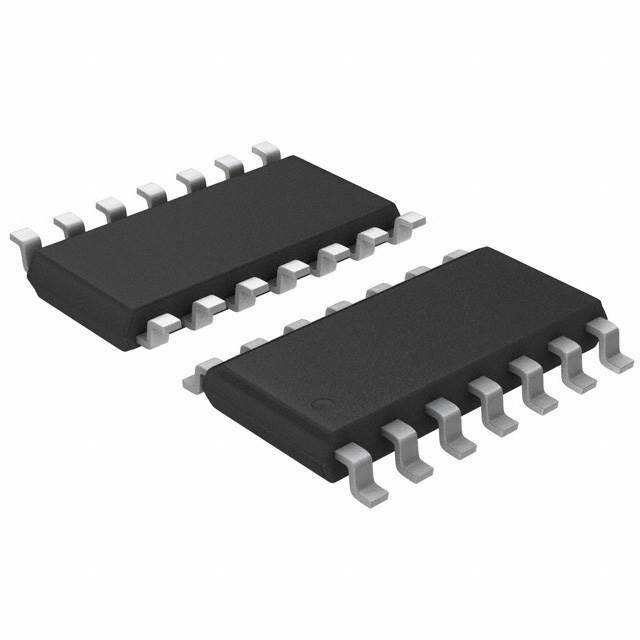

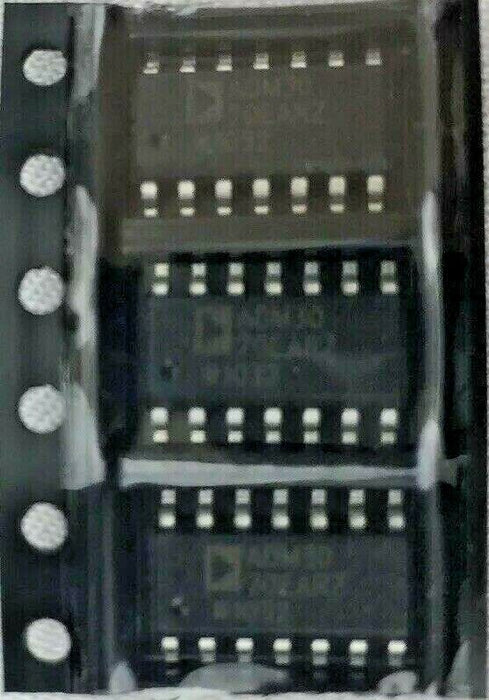

3PCS ADM3070EARZ IC TXRX RS-485 3.3V FD 14-SOIC ADM3070 3070 ADM3070E 3070E ADM3
by ADM
$10.99
SKU ADM3070EARZ_3PCS
3PCS ADM3070EARZ IC TXRX RS-485 3.3V FD 14-SOIC ADM3070 3070 ADM3070E 3070E ADM3
Brand New.
Product Technical Specifications:
ECCN (US) EAR99
Part Status Active
HTS 8542.39.00.01
Function Line Transceiver
Data Rate 250Kbps(Min)
Transmitter Communication Type RS-485|RS-422
Receiver Communication Type RS-485|RS-422
Interface Standards RS-485|RS-422
Data Transmission Topology Multipoint
Number of Transceivers 1
Number of Transmitters 1
Number of Receivers 1
Transmitter Signal Type Differential
Receiver Signal Type Differential
Number of Drivers per Line 256@RS-485|1@RS-422
Number of Receivers per Line 256@RS-485|10@RS-422
Driving Mode 3-State
Number of Transmitter Enables 1
Number of Receiver Enables 1
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Power Supply Type Single
Minimum Single Supply Voltage (V) 3
Typical Single Supply Voltage (V) 3.3
Maximum Single Supply Voltage (V) 3.6
Supplier Temperature Grade Industrial
Pin Count 14
Supplier Package SOIC N
Standard Package Name SOP
Mounting Surface Mount
PCB changed 14
Lead Shape Gull-wing
