10pcs Opcom CM1314YFM-OP03 720p Digital IP Camera Module Assembly 4mm Lens F2.0

by Opcom
10 pieces of a custom camera assembly used by a manufacturer of 180 degree multi-imager security camera. Custom Opcom 720p Digital IP Camera Module Assembly CM1314YFM-OP03 w/ 4mm Lens

This is for someone who enjoys projects like creating ioT devices, creating custom programs on dev boards...These are not a plug-and-play product.

  • Focusing Range 60cm to Infinity
  • Focal Length 4mm
  • F2.0
  • FOV 59.3 degrees
  • 720p Color
  • 1/4" Optical Format
  • Progressive Scan
  • .5 Lux

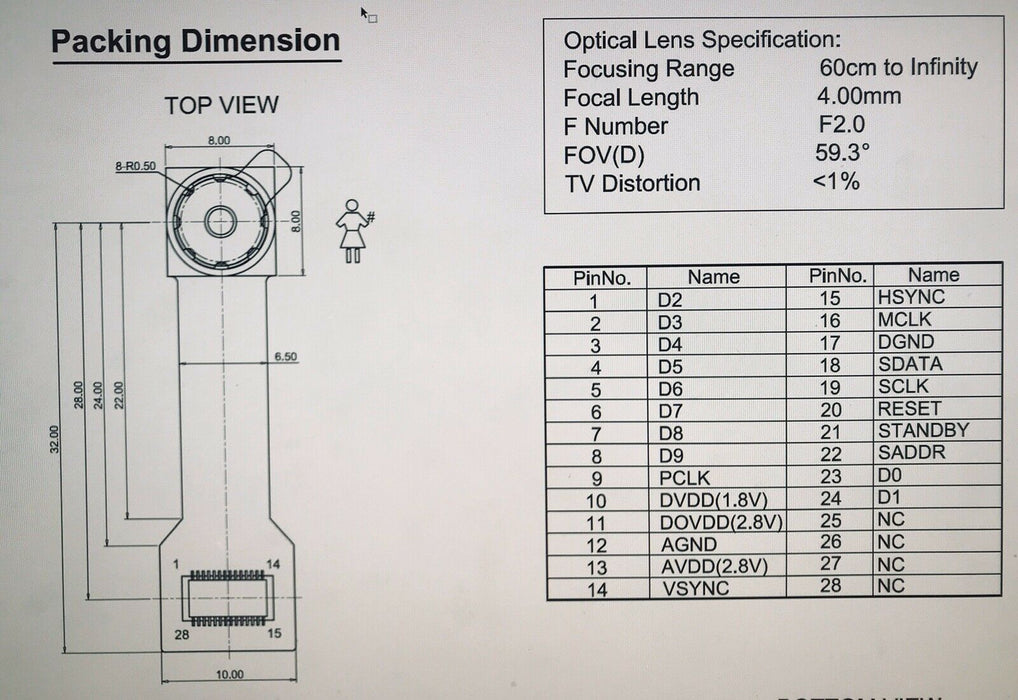

Pinout of flex assembly is found in the product specification pictures in the pictures.

We have other assemblies too using OmniVision and Aptina sensors with connectors and socket to board connections.
