Magenta Mini Dense Pack Power Supply MultiView Series 400R3322-01 BRACKET OF 2

Magenta Mini Dense Pack Power Supply MultiView Series 400R3322-01 BRACKET OF 2

by Magenta

Sold out

$55.00

SKU 400R3322-01_2BRACKET_USED

Quantity

Magenta Mini Dense Pack Power Supply MultiView Series 400R3322-01 BRACKET OF 2

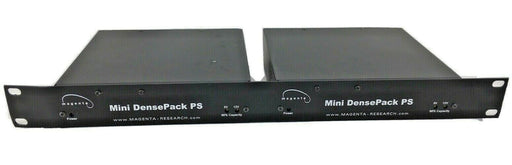

Grade B physical condition. Comes in a rack mounting bracket with two units as pictured. Ships with two universal power cords.

Magenta’s MultiView™ series Mini Dense Pack PS is a small desktop or rack mount central power supply solution primarily for MultiView products. Featuring dual 5VDC and 12VDC outputs, the Mini Dense Pack power supply can also be used to power non Magenta Research products.

Specifications:

Cable Required:

DC coaxial to 3 position Phoenix 18 AWG

Compliance:

EMC, CE, FCC Class A

Connectors:

(6) Phoenix 3 pos. power ports,

(1) Switched and fused—IEC 320 AC inlet

Temperature Tolerance:

Operating: 32 to 104°F (0 to 40°C);

Storage: -4 to +140°F (-20 to +60°C)

Humidity Tolerance:

Up to 80% non-condensing

Enclosure:

Powder Coated Steel

Power:

90-240 VAC 47 –63Hz

Consumption: 150 watts maximum

Output:

5 Volts DC at 10 amps maximum

12 Volts DC at 4.2 Amps maximum
